Metal working for lathes C6266 CQ6280 lathes for sale

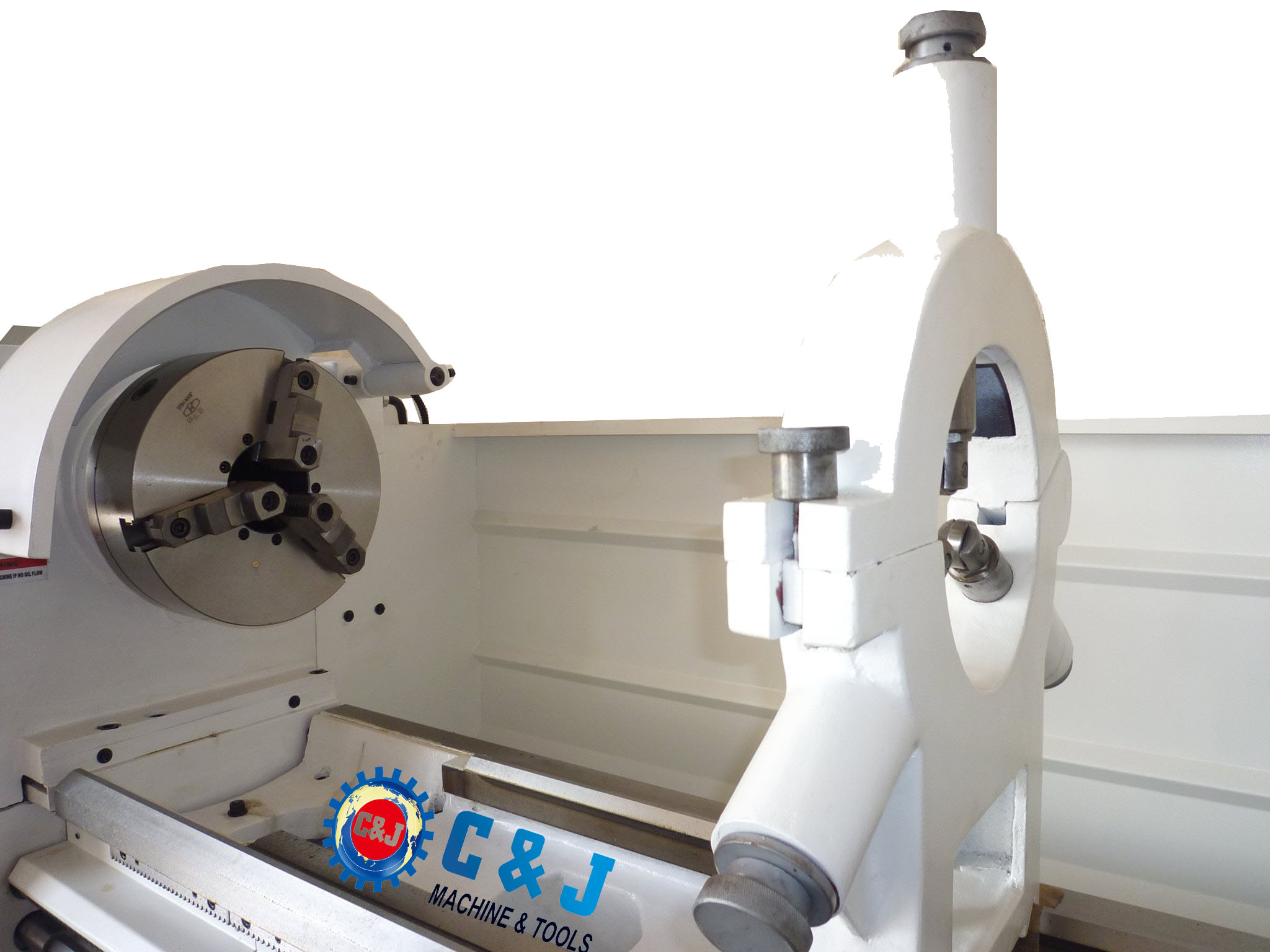

This heavy-duty full cast bed gear-head lathe with a large 105mm spindle bore is rock solid!!. Its massive size and full capacities will allow you to chuck-up any heavy work piece with confidence. Whether you need to turn stainless, brass or large castings, its 405mm wide bed, heavy-duty tailstock, excellent speed range, coolant pump and powerful 11kw motor will give you the best possible finishes. What''s more, it comes supplied with an auto apron stop so you can preset up to 4 different shoulders along the length of your shafting. With a quick change tool post, steady & follow rest and hex drive feed rod for smooth, consistent motion, you have the flexibility needed to tackle any job quickly. Check out the features and standard equipment list below!
1. Overall and split at the end to choose from

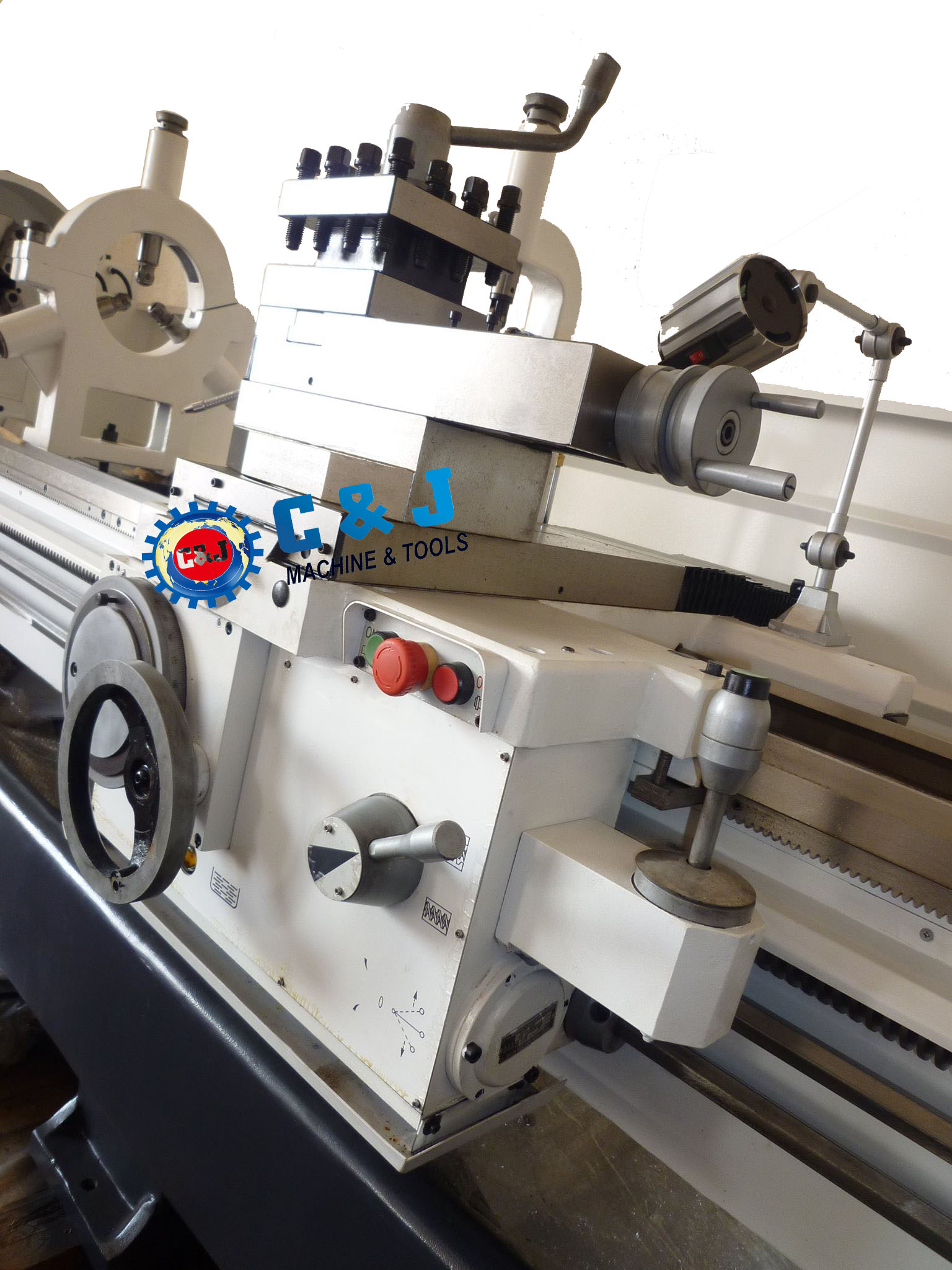

2. Slide box with independent fast-moving system
3. The spindle box adopts the precision lubrication system

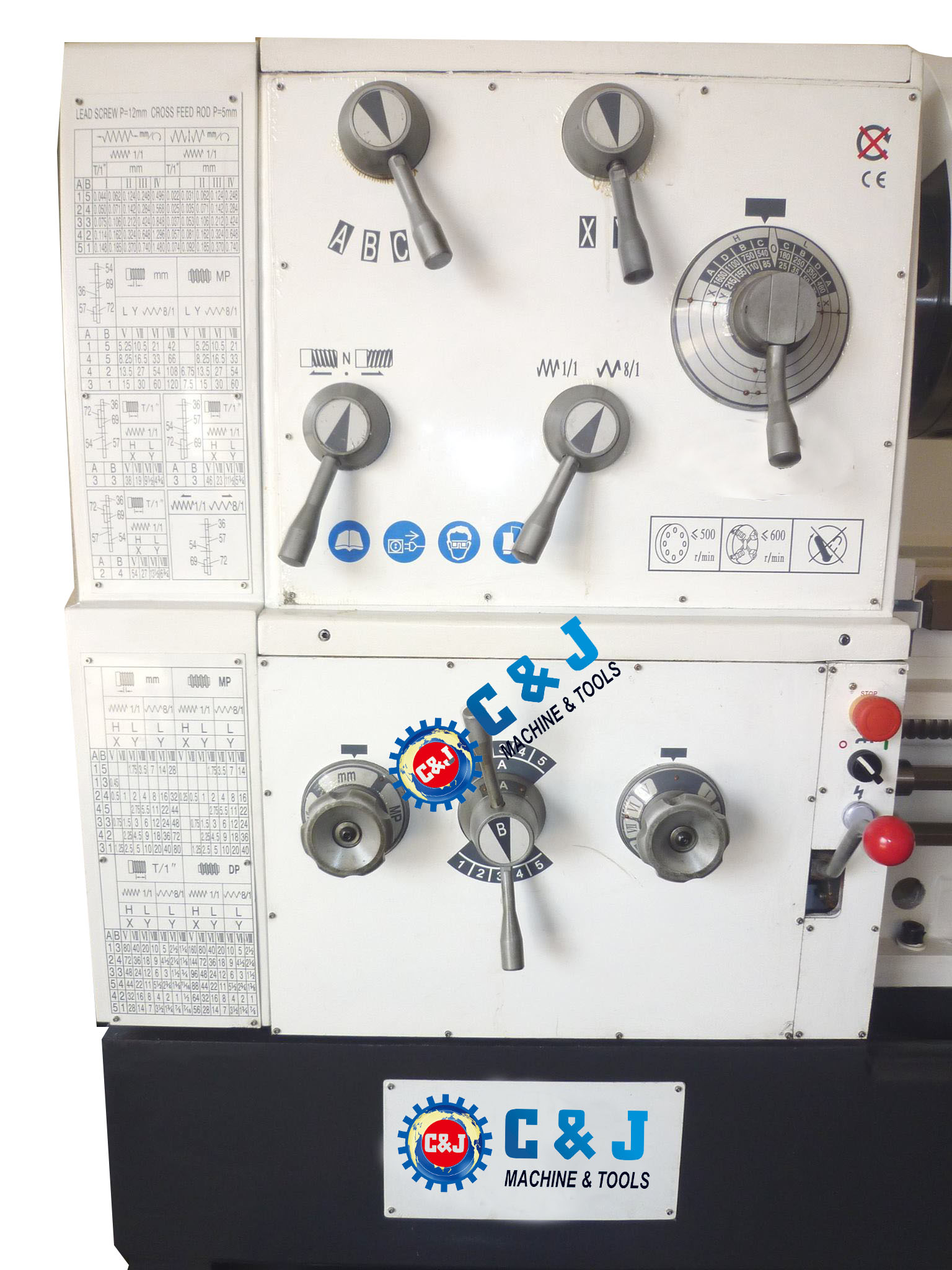

4. Spindle box with clutch
Items
|
C6266
|
CQ6280
|
Swing over bed
|
660mm(26”)
|
800mm(31-1/2”)
|
Swing over cross slide
|
440mm(17-5/16”)
|
570mm(31-1/2”)
|
Swing in gap diameter
|
900mm(35-7/16”)
|
1035mm(40-3/4”)
|
Distance between centers
|
1500mm(60”)/2000mm(80”)/3000mm(120”)
|
Valid length of gap
|
250mm(10”)
|
Width of bed
|
400mm(15-13/16”)
|
Spindle nose
|
D1-8
|
Spindle bore
|
105mm(4-1/8”)
|
Taper of spindle bore
|
Φ113(1:20)
|
Range of spindle speed
|
25~1600r/min
|
Compound rest travel
|
230mm(9-1/8”)
|
Cross slide travel
|
368mm(14-1/2”)
|
420mm(16-17/32”)
|
Max.Section of tool
|
25×25mm(1”×1)
|
Lead screw thread
|
12mm or 2T.P.I
|
Longitudinal feeds range
|
0.044~1.48mm/rev(0.00165”~0.0550”/rev)
|
Cross feeds range
|
0.022~0.74mm/rev(0.00083”~0.02774”/rev)
|
Threads metric pitches
|
54 kinds,0.45~120mm
|
Threads imperial pitches
|
54 kinds,7/16~80T.P.I
|
Threads diametral pitches
|
42 kinds,7/8~160DP
|
Threads module pitches
|
46 kinds,0.25~60MP
|
Quill diameter
|
90mm(3-1/2”)
|
Quill travel
|
235mm(9-1/4”)
|
Quill taper
|
No.5 Morse
|
Main motor power
|
7.5kw(10HP)3PH
|
Coolant pump power
|
0.1kw(1/8HP)3PH
|
Overall dimension
(L×W×H))
|
321×123×160cm /371×123×160cm
471×123×160cm
|
321×123×167cm /371×123×167cm
471×123×167cm
|
Packing size
(L×W×H)
|
324×114×184cm /374×114×184cm
474×114×184cm
|
324×114×191cm /374×114×191cm
474×114×191cm
|
Net weight
|
3065kg /3345kg /3710kg
|
3175kg /3455kg /3820kg
|
Gross weight
|
3535kg /3835kg /4310kg
|
3695kg /4005kg /4495kg
|
