SL125 Swiss Type Cnc Automatic Lathe Machine
Product Description
SL125 Swiss Type Automatic Lathe Machine For

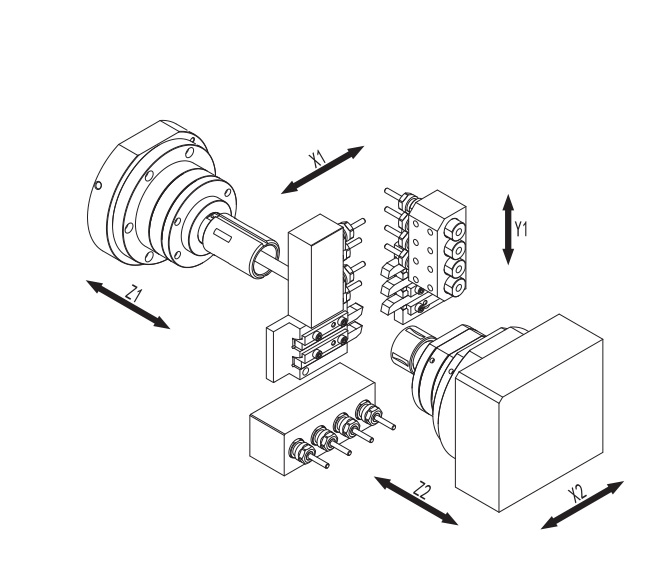

● Auto Lathe Machine Control System. Using Japan FANUC system, the 5 axes linkage, high stability, high precision.
● High Automatic Turning Machine Precision Spindle. With FANUC servo built-in motor stater manufacturing machine tool precision motorized spindle, spindle bearing adopts Japan NSK high precision angular contact ball bearing, ensure the accuracy of the spindle high rigidity and persistent keep, main shaft runout & le; 2 & mu; M.
● Efficient Automatic Lathe Processing. Highest spindle speed 10000 r/min, X, Y, Z axis is fast moving speed can be up to 24 m/min.
● High Rigid Bed. Stable structure design, high quality baking the whole cast iron bed, strong rigidity.
● High Precision of Feed. Feed full servo drive shafts, using the Japanese NSK precision ball screw, Japan NSK bearings, ball screws to ensure machining accuracy and the precision of the long time maintain, feed the repositioning precision shaft & le; 2 & mu; M.
● Center Support Structure. Characteristic at the center of the support structure, especially for slender shaft parts with the bulk of the continuous processing.
SL125 Swiss Type Cnc Automatic Lathe Machine
Specification：
|
SL125
|
SPECIFICATIONS
|
Parameter
|
UNIT
|
|
1
|
Rod hole diameter
|
Φ16
|
mm
|
|
2
|
The largest processing bar diameter
|
Φ12
|
mm
|
|
3
|
Maximum length of machining parts
|
30/60/180
|
mm
|
|
4
|
Highest spindle speed
|
10000
|
r/min
|
|
5
|
The spindle power
|
1.5
|
kW
|
|
6
|
Maximum speed of the back shaft
|
10000
|
r/min
|
|
7
|
Back shaft power
|
1.5
|
kW
|
|
8
|
Dividing of principal axis
|
C-axis function
|
Continuous indexing
|
|
9
|
The biggest End face hole diameter
|
Φ7
|
mm
|
|
10
|
The biggest End face
|
M6
|
mm
|
|
11
|
Cylindrical turning tool
|
10×10
|
mm
|
|
12
|
3 Cylindrical turning tool
|
5
|
5 the
|
|
13
|
Axial machining tool
|
4 (ER11)
|
/
|
|
14
|
Minimum resolution
|
0.001
|
mm
|
|
15
|
Fast moving speed
|
X/Y/Z axis:24/30
|
m/min
|
|
16
|
Cooling motor power
|
0.25
|
kW
|
|
17
|
Machine tool overall dimensions (length x width x height)
|
1850×1100×1700
|
mm
|
|
18
|
Machine weight
|
1800
|
kg
|
Main parts brand:
|
ITEM
|
BRAND
|
|
CNC Controller
|
TAIWAN-SYNTEC
|
|
Servo Electro-spindle
|
TAIWAN
|
|
Servo Motor&driver
|
TAIWAN-SYNTEC
|
|
Spindle Encoder
|
TAIWAN-SYNTEC
|
|
Spindle Bearing
|
JAPAN-NSKP4 class
|
|
Ball Screw Bearing
|
JAPAN-NSK
|
|
Ball Screw
|
TAIWAN-HIWIN
|
|
Linear Guideway
|
TAIWAN-HIWIN
|
|
Lubrication System
|
JAPAN-HERG
|
|
Main Electricity Parts
|
FRANCE-SCHNEIDER
|
|
Pneumatic Parts
|
TAWAN-AIRTAC
|
|
Lock Nuts
|
TAIWAN-YINSH
|
|
Shaft Coupling
|
GERMANY-KTR
|
|
Optional Configuration:
|
|
- High Pressure Coolant System
|
|
- Oil Mist Collection System
|
|
- Angular Live Tool
|
|
- Automatic Chip Conveyor
|
|
- Automatic Bar Feeder
|
