S205 S206 S265 S266 Swiss Type Lathe Machine
Numerical control system: Standard Taiwan SYNTEC system, double channel control, high efficiency, high precision. Optional FANUC or Mitsubishi system according to customer needs.
High-precision spindle: The spindle bearing of the machine tool adopts imported high-precision angular contact bearings to ensure the high rigidity and durable accuracy of the spindle, and the spindle runout is less than 2μm.
High performance cast iron: newly designed high rigidity structure, high quality Mihanna cast iron (dense cast iron) integral bed and drag plate, after aging treatment, strong rigidity, good stability.
High-precision feed: feed axis full servo drive, using imported high-precision ball screw bearings, imported high-precision ball screw guideways, key parts using roller guideway to ensure structural rigidity, processing accuracy and long-term accuracy, repeated positioning accuracy of each feed axis ≤3μm.
Bushing structure: The bushing mode can be quickly switched between the bushing mode and the without bushing mode to meet the diversified processing requirements.
Tool system: horizontal linear tool layout structure, smooth chip removal, compact structure. Equipped with radial live tool and spindle indexing function, with Y2 axis, the back tool is more sufficient, more rich tool system can meet the complex processing needs of more complex turning, milling, drilling and other processes, but also according to customer workpiece requirements to choose a variety of styles of live tools.
Automation: Through the configuration of automatic feeder, automatic continuous processing can be realized.
Application: Widely used in communication, electronics, automotive, pneumatic and hydraulic, medical, instrumentation, aviation and other industries of complex, small, precise, slender shaft parts processing.
S205 S206 S265 S266 Swiss Type Lathe Machine
|
Technical Parameter
|
|
Machine type
|
S205
|
S206
|
S265
|
S266
|
|
Processing capacity
|
Maximum bar diameter (mm)
|
Φ20
|
Φ20
|
Φ26
|
Φ26
|
|
Spindle bore diameter (mm)
|
Φ25
|
Φ25
|
Φ30
|
Φ30
|
|
Maximum machining length (mm)
|
Without guide bush
|
2.5D(Max. 50)
|
|
Rotary guide bush
|
180
|
|
Back spindle maximum clamping diameter (mm)
|
Φ20
|
Φ26
|
|
Spindle maximum drilling diameter (mm)
|
Φ10
|
|
Spindle maximum tapping diameter
|
M10
|
|
Back spindle maximum drilling diameter (mm)
|
Φ10
|
|
Back spindle maximum tapping diameter
|
M10
|
|
Radial live tool maximum drilling diameter (mm)
|
Φ8
|
|
Radial live tool maximum thread diameter
|
M6
|
|
Back live tool maximum drilling diameter (mm)
|
Φ8 (Opt）
|
Φ8
|
Φ8 (Opt）
|
Φ8
|
|
Back live tool maximum thread diameter
|
M6(Opt）
|
M6
|
M6(Opt）
|
M6
|
|
Mechanical capacity
|
Spindle speed (r/min)
|
10000
(rotary guide bush 8000)
|
|
Back spindle speed (r/min)
|
10000
|
|
Radial live tool speed (r/min)
|
6000
|
|
Back live tool speed (r/min)
|
6000（Opt)
|
6000
|
6000（Opt)
|
6000
|
|
Fast moving speed (m/min)
|
24(X2、Y1、Z1、Z2)
|
|
20(X1)
|
20(X1、Y2)
|
20(X1)
|
20(X1、Y2)
|
|
Spindle runout (mm)
|
≤0.002
|
|
Repeated positioning accuracy
|
≤0.003
|
|

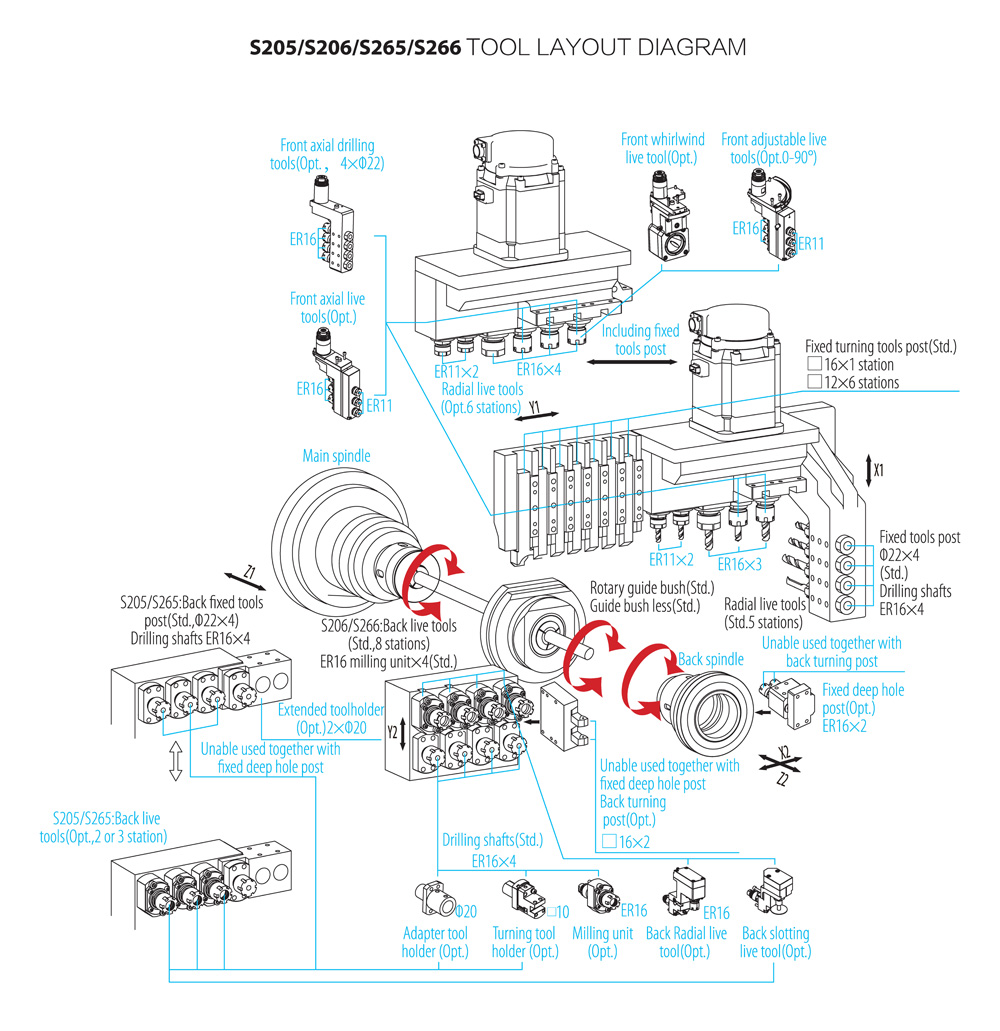

Tool system
|
O.D. tool
|
1(□16)+6(□12)
|
|
Axial machining tool
|
4(ER16)
|
|
Radial live tool
|
2(ER11)+3(ER16)
|
|
Deep hole tool holder
|
2(ER16, optional)
|
|
Back machining tool
|
4(ER16)
|
4(ER16)
|
4(ER16)
|
4(ER16)
|
|
Back live tool
|
Opt.
|
4(ER16)
|
Opt.
|
4(ER16)
|
|
Back turning tool holder
|
-------
|
2(□16, optional)
|
--------
|
2(□16, optional)
|
|
Motor power
|
Main spindle (kW)
|
4.2
|
|
Back spindle (kW)
|
4.2
|
|
Linear drive axis (kW)
|
1
|
|
Radial live tool (kW)
|
1
|
|
Back live tool (kW)
|
1(Opt.)
|
1
|
1(Opt.)
|
1
|
|
Cooling pump (kW)
|
0.4
|
|
Machine weight (kg)
|
2900
|
3000
|
2900
|
3000
|
|
Machine dimensions (L × W × H) (mm)
|
2565×1350×1850
|
|
Main standard configuration
|
|
Rotary guide bush
|
Liquid level detector switch
|
|
Without guide bush device
|
External handwheel
|
|
Radial live tool device
|
Spindle oil cooler
|
|
Back spindle front blanking device
|
LED lighting device
|
|
Part transfer unit
|
LED three-color alarm light
|
|
Main NC functions
|
Main optional accessories
|
|
SYNTEC10.4-inch dual channel system
|
High-pressure cooling unit
|
|
Absolute position servo
|
Oil mist collector
|
|
Bus communication
|
Chip cleaner
|
|
Hand wheel simulation
|
A variety of live tools (refer to the matching picture)
|
|
Back spindle synchronous feeding
|
Long cutting attachment
|
|
Live tool rigid tapping
|
Flow detection switch
|
|
C1/C2 axis coupling
|
Cut-off detection (mechanical)
|
|
Z1/Z2 axis coupling
|
Safety lock
|
|
Torque detection
|
Fanuc or Mitsubishi Systems
|
|
Cut off detection (software type)
|
|
