CSL203 263 Cnc Slitting Automatic Lathe Machines
Numerical control system: Standard Taiwan SYNTEC system, high stability, high precision.
High-precision spindle: built-in electric spindle structure, spindle bearing adopts imported high-precision angular contact bearing, to ensure the high rigidity and durable accuracy of the spindle, spindle runout ≤2μm.
High performance cast iron: stable structural design, high quality Mihanna cast iron (dense cast iron) overall bed and drag plate, after aging treatment, strong rigidity, good stability.
High-precision feed: the feed axis is fully servo driven, using imported high-precision screw bearings, imported high-precision ball screw guideways to ensure processing accuracy and long-term accuracy, repeated positioning accuracy of each feed axis ≤3μm.
Bushing structure: can choose fixed guide bush or rotary guide bush mode, to meet the diversified processing requirements.

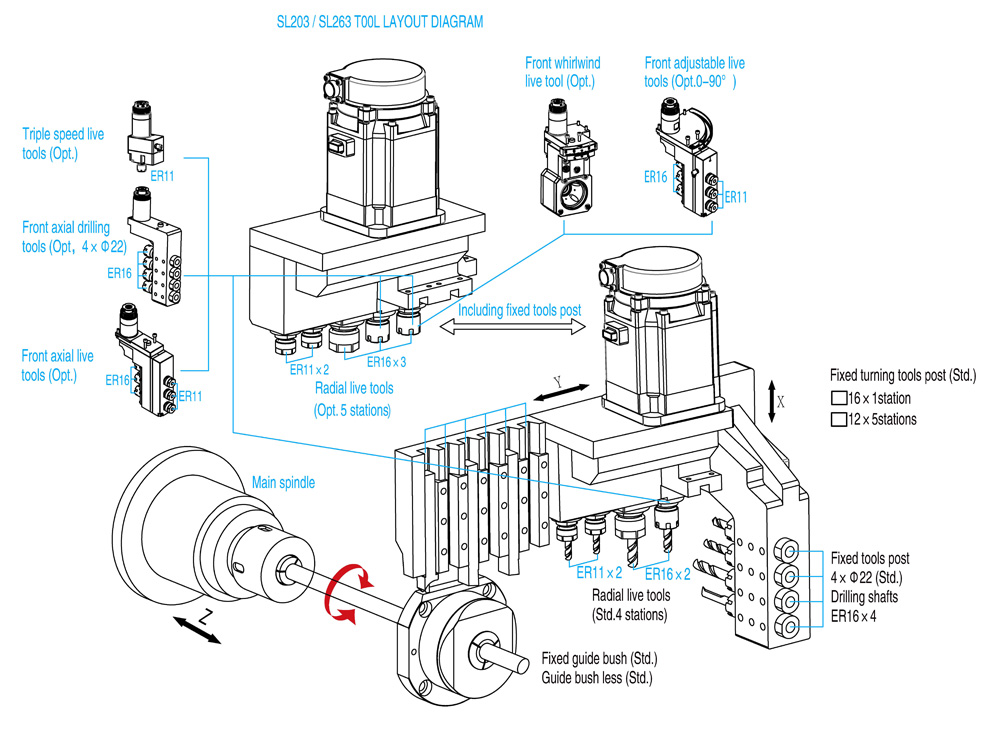

Tool system: horizontal linear tool layout structure, smooth chip removal, compact structure, quick tool change. Through the configuration of radial live tool, it can meet the complex machining needs of complex turning, milling, drilling and other processes.
Lubrication system: All ball screws and guide rails are lubricated by centralized lubrication system to ensure long-term and efficient operation of the machine tool.
Automation: Through the configuration of automatic feeder, automatic continuous processing can be realized.
Application: Widely used in communication, electronics, automotive, pneumatic and hydraulic, medical, instrumentation, aviation and other industries of complex, small, precise, slender shaft parts processing.
CSL203 263 Cnc Slitting Automatic Lathe Machines
|
Technical Parameter
|
|
Machine type
|
SL203
|
SL263
|
|
Processing capacity
|
Maximum bar diameter (mm)
|
Φ20
|
Φ26
|
|
Spindle bore diameter (mm)
|
Φ25
|
Φ30
|
|
Maximum machining length (mm)
|
Guide bush less
|
2.5D(Max.50)
|
|
Fixed guide bush
|
220
|
|
Rotary guide bush
|
180(Optional)
|
|
Spindle maximum drilling diameter (mm)
|
Φ10
|
|
Spindle maximum tapping diameter
|
M10
|
|
Radial live tool maximum drilling diameter (mm)
|
Φ8
|
|
Radial live tool maximum thread diameter
|
M6
|
|
Mechanical capacity
|
Spindle speed (r/min)
|
10000 (rotary guide bush 8000)
|
|
Radial live tool speed (r/min)
|
6000
|
|
Fast moving speed (m/min)
|
24(Y1、Z1)
|
|
20(X1)
|
|
Spindle runout (mm)
|
≤0.002
|
|
Repeated positioning accuracy
|
≤0.003
|
|
Tool system
|
O.D.tool
|
1(□16)+5(□12)
|
|
Axial machining tool
|
4(ER16)
|
|
Radial live tool
|
2(ER11)+2(ER16)
|
|
Motor power
|
Main spindle (kW)
|
4.2
|
|
Linear drive axis (kW)
|
1
|
|
Radial live tool (kW)
|
1
|
|
Cooling pump (kW)
|
0.22
|
|
Machine weight (kg)
|
1800
|
|
Machine dimensions (L × W × H) (mm)
|
1700×1300×1800
|
|
Main standard configuration
|
|
Fixed guide bush
|
Cooling system
|
|
High precision motorized spindle
|
Lubrication system
|
|
Receiving device
|
LED lighting device
|
|
Pneumatic system
|
LED three-color alarm light
|
|
Main NC functions
|
Main optional accessories
|
|
SYNTEC 8-inch control system
|
Rotary guide bush device
|
|
Absolute position servo
|
Radial live tool device
|
|
Bus communication
|
High-pressure cooling unit
|
|
Hand wheel simulation
|
Oil mist collector
|
|
Spindle C axis function
|
Safety lock
|
