Product Description
CSL1203II Cnc Slitting Automatic Lathe Machines
The Auto Lathe Machine CNC system. The Taiwan SYNTEC system, three axis three linkage, high stability, high precision.
Automatic Turning Machine High precision spindle.
Cnc Auto Lathe High rigid bed. The structure design of stable, high quality Meehanite cast iron bed, strong rigidity.
High precision feed.
The guide sleeve structure. The cutting method of the fixed guide sleeve can be selected, and the cutting mode of the cutting and the full stroke rotary guide sleeve can be selected to satisfy the diversified processing requirements.
The knife row structure.
The lubrication system. All screw, guide rail adopts centralized lubrication system to guarantee machine lubrication, long-term efficient operation.
Automation. Through the configuration of the automatic feeding machine, automatic continuous processing.
|
Technical Parameter
|
|
Machine type
|
CSL1203II
|
|
Processing capacity
|
Maximum bar diameter (mm)
|
Φ12
|
|
Spindle bore diameter (mm)
|
Φ16
|
|
Maximum machining length (mm)
|
Fixed guide bush
|
140
|
|
Rotary guide bush
|
140(optional)
|
|
Spindle maximum drilling diameter (mm)
|
Φ7
|
|
Spindle maximum tapping diameter
|
M6
|
|
Maximum drilling diameter of radial live tool (mm)
|
Φ6(Optional)
|
|
Maximum thread diameter of radial live tool
|
M5(Optional)
|
|
Mechanical capacity
|
Spindle speed (r/min)
|
8000 (Rotary guide bush 6000)
|
|
Radial live tool speed (r/min)
|
5000(Optional)
|
|
Fast moving speed (m/min)
|
20
|
|
Spindle runout (mm)
|
≤0.002
|
|
Repeated positioning accuracy
|
≤0.003
|
|
Tool system
|
O.D. tool
|
5(□10)
|
|
Axial machining tool
|
5(ER11)
|
|
Radial live tool
|
3(ER11)(Optional)
|
|
Motor power
|
Main spindle (kW)
|
3.7
|
|
Linear drive axis (kW)
|
0.75
|
|
Radial live tool (kW)
|
0.4(Optional)
|
|
Cooling pump (kW)
|
0.18
|
|
Machine weight (kg)
|
1350
|
|
Machine dimensions (L × W × H) (mm)
|
1560×900×1680
|
|

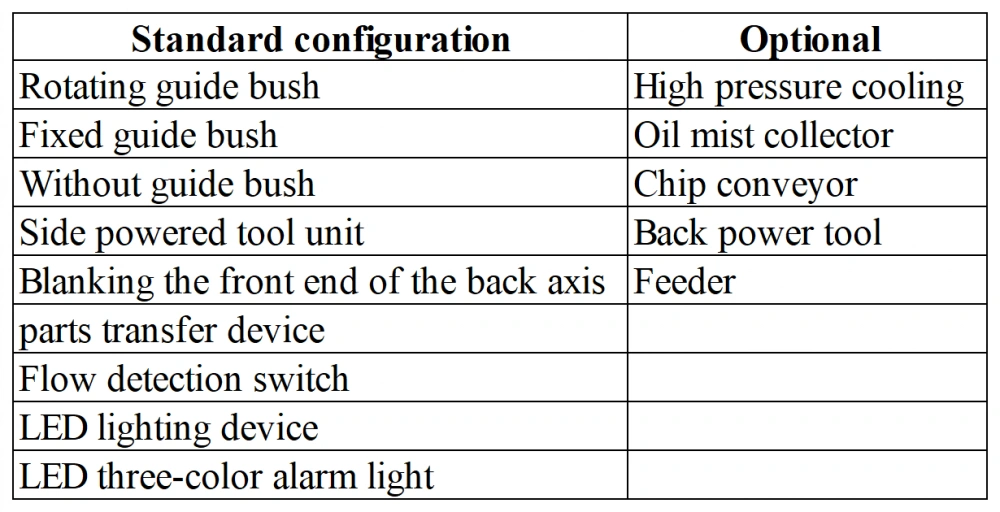

Main standard configuration
|
|
Fixed guide bush
|
Cooling system
|
|
High precision motorized spindle
|
Lubrication system
|
|
Receiving device
|
LED lighting device
|
|
Pneumatic system
|
LED three-color alarm light
|
|
Main NC functions
|
Main optional accessories
|
|
SYNTEC 8-inch control system
|
Rotary guide bush device
|
|
Absolute position servo
|
Radial live tool device
|
|
Bus communication
|
High-pressure cooling unit
|
|
Hand wheel simulation
|
Oil mist collector
|
|
Spindle C axis function
|
Safety lock
|
