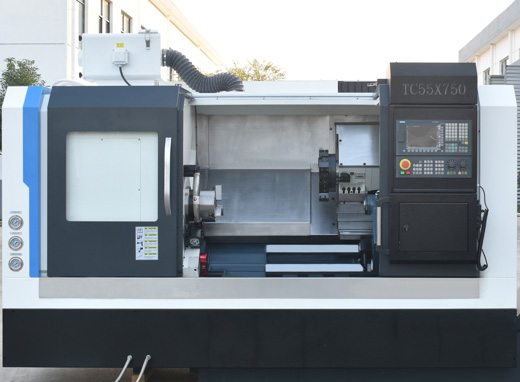

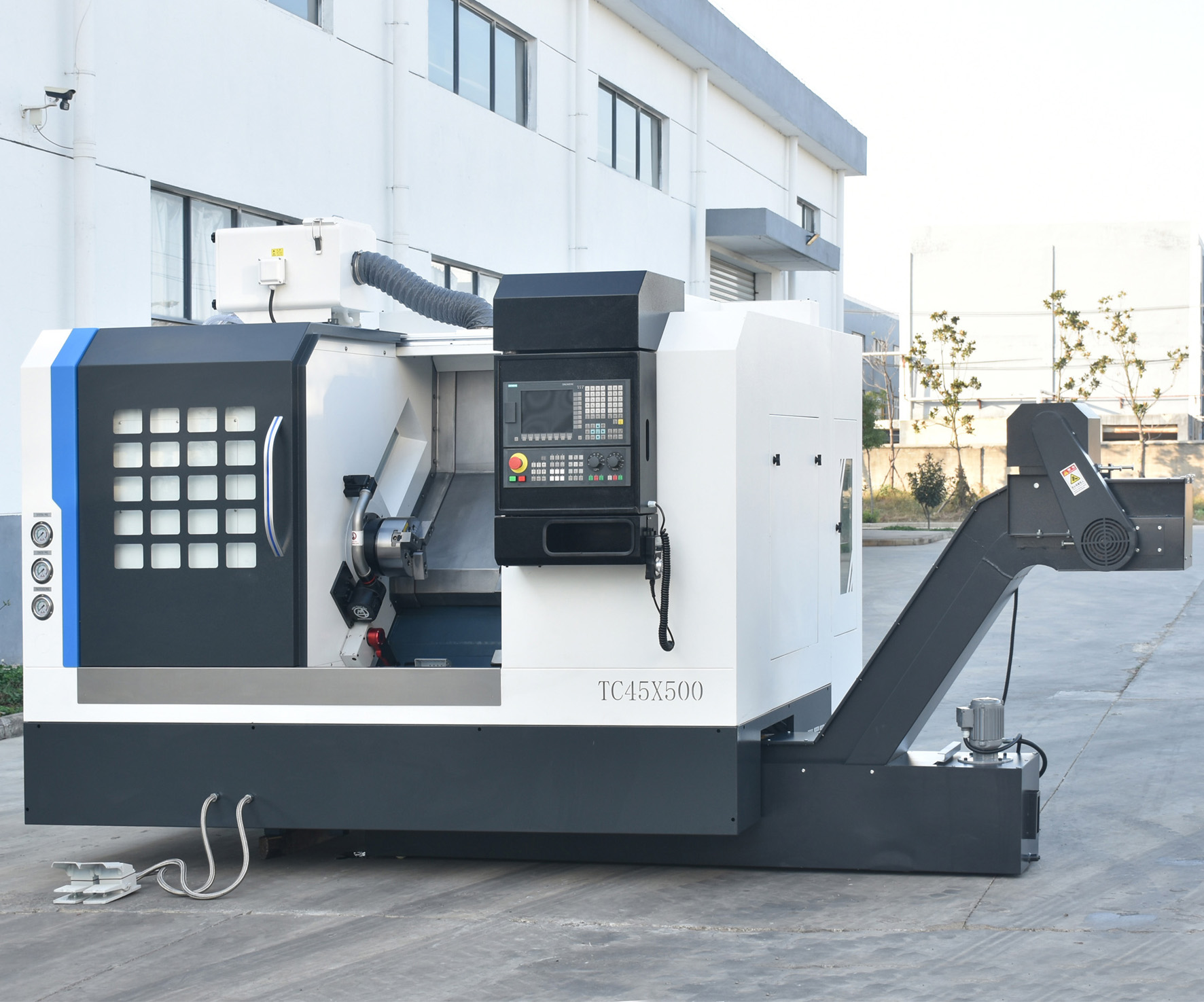

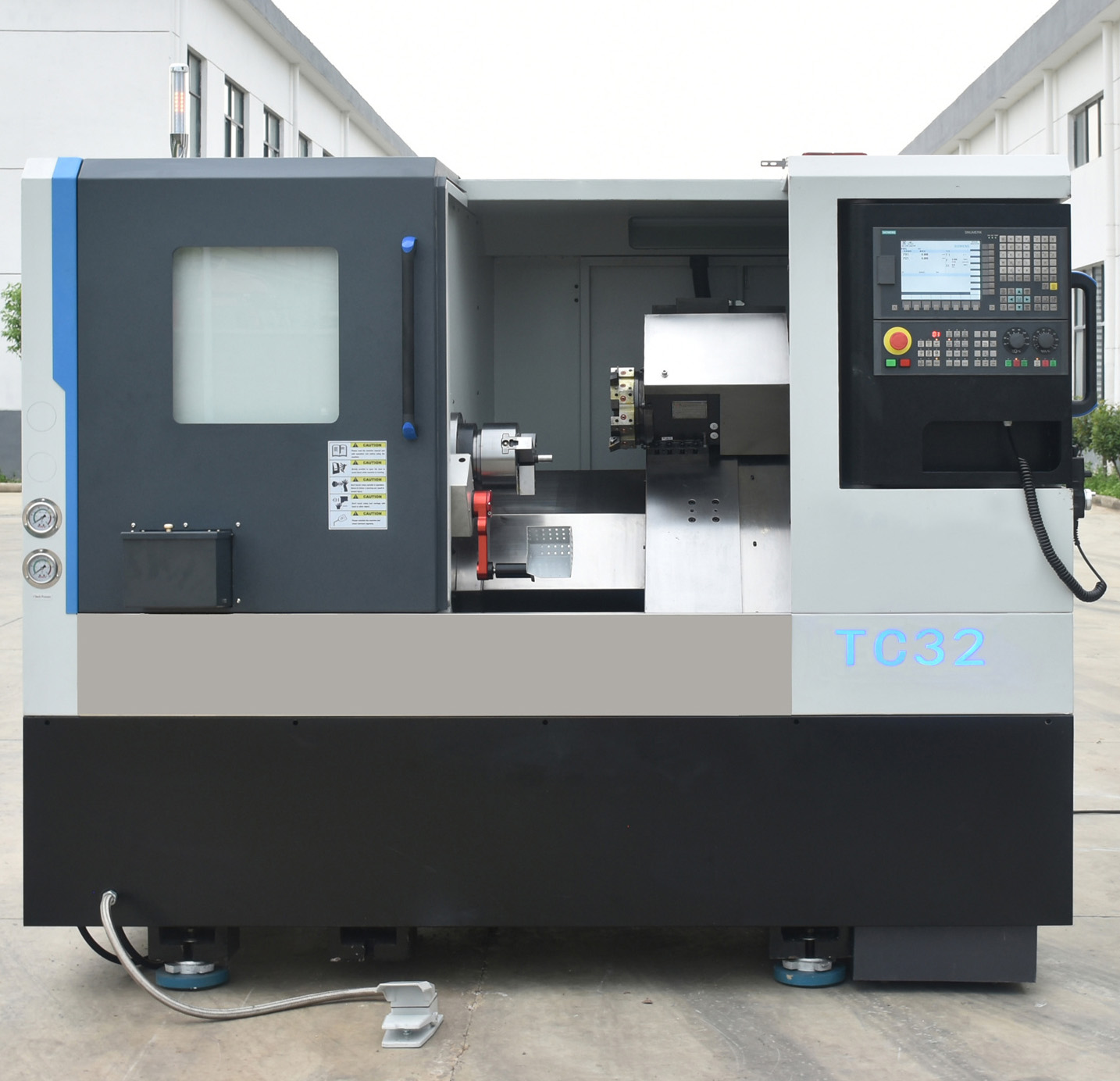

SL320 SL360 SL400 SL500 SL600 SL800 Slant Bed CNC Lathe

MODEL

SL800

SL600

SL500

SL400

SL360

SL320

Bed structure & Rail

Hard Rail / 45°

Hard Rail / 45°

Linear Guide/ 45°

Linear Guide/ 45°

Linear Guide/ 45°

Linear Guide/ 45°

Capacity

Swing over bed

mm

Φ800

Φ650

Φ540

Φ450

Φ360

Φ320

Swing over cross slide

mm

Φ600

Φ450

Φ320

Φ250

Φ200

Φ180

Cutting diameter

mm

Φ500

Φ400

Φ300

Φ220

Φ180

Φ160

Distance between center

mm

1100/1600/2100/3100

1100/1600/2100

750

500/750

500/750

500

Processing length

mm

1000/1500/2000/3000

1000/1500/2000

600

450/600

350/600

350

Spindle

Spindle type

Spindle Unit

Spindle Unit

Spindle Unit

Spindle Unit

Spindle Unit

Spindle Unit

Spindle speed

RPM

3000

3000

4000 (opt:3000)

4000
(opt:3000)

4000

4000

Spindle bore

mm

Φ105

Φ86

 Φ66 (opt:Φ86)

 Φ66 (opt:Φ79)

Φ56 (opt:Φ66)

Φ56

Dia.of through-hole

mm

Φ90

Φ70

Φ50 (opt:Φ70)

Φ50 (opt:Φ60)

Φ40 (opt:Φ50)

Φ40

Spindle nose

ASA

A2-11

A2-8

A2-6 (opt:A2-8)

A2-6

A2-5 (opt:A2-6)

A2-5

Stroke & Feeding Speed

X axis travel

mm

350

350

370

370

210

210

Z axis travel

mm

1100/1600/2100/3100

1100/1600/2100

850

500/750

500/750

500

X/Z axis Rapid traverse

m/min

15 / 15

15 / 15

15 / 15

15 / 15

15 / 15

15 / 15

Chuck

Chuck type

Hydraulic Chuck

Hydraulic Chuck

Hydraulic Chuck

Hydraulic Chuck

Hydraulic Chuck

Hydraulic Chuck

Chuck diameter

mm

305 [12'''']

250[10''’] (opt: 305[12''''])

200[8''’] (opt: 250[10''''])

200[8''’] (opt: 250[10''''])

160[6''''] (opt: 200[8''''])

160mm[6”]

Turret

Turret type

Electrical turret-110
opt:Hydraulic turret, Power turret

Electrical turret-110
opt:Hydraulic turret, Power turret

Electrical turret-80
opt:Hydraulic turret, Power turret

Electrical turret-80
opt:Hydraulic turret, Power turret

Electrical turret-63
opt: Hydraulic turret

Electrical turret-63
opt: Hydraulic turret

Tool number

8T (opt:12T)

8T (opt:12T)

8T (opt:12T)

8T (opt:12T)

8T

8T

Outer diameter tool/OD

mm

□32

□32

□25

□25

□20

□20

Inner diameter tool/ID

mm

Φ40

Φ40

Φ32

Φ32

Φ25

Φ25

Tailstock Sleeve

Tailstock type

Hydraulic programmable

Hydraulic sleeves

Hydraulic sleeves

Hydraulic sleeves

Hydraulic sleeves

Hydraulic sleeves

External diameter

mm

Φ110

Φ110

Φ90

Φ75

Φ60

Φ60

Max. travel

mm

120

120

120

80

80

80

Taper of bore

MT#6

MT#6

MT#5

MT#4

MT#4

MT#4

System-SIEMENS

Controller

SIEMENS 808D 15

SIEMENS 808D 15

SIEMENS 808D 15

SIEMENS 808D 15

SIEMENS 808D 15

SIEMENS 808D 15

Spindle motor

GSK Servo 15 kw

GSK Servo 11kw

GSK Servo 11kw

GSK Servo 7.5kw

GSK Servo 5.5kw

GSK Servo 4kw

X axis motor

SIEMENS Servo motor 3kw

SIEMENS Servo motor 2.4kw

SIEMENS Servo motor 2kw

SIEMENS Servo motor 1.75kw

SIEMENS Servo motor 1.75kw

SIEMENS motor 1.75kw

Z axis motor

SIEMENS Servo motor 5.5kw

SIEMENS Servo motor 2.4kw

SIEMENS Servo motor 2kw

SIEMENS Servo motor 1.75kw

SIEMENS Servo motor 1.75kw

SIEMENS motor 1.75kw

System-GSK

Controller

GSK980TDI

GSK980TDI

GSK980TDI

GSK980TDI

GSK980TDI

GSK980TDI

Spindle motor

GSK Servo 15 kw

GSK Servo 11kw

GSK Servo 11kw

GSK Servo 7.5kw

GSK Servo 5.5kw

GSK Servo 4kw

X axis motor

GSK Servo motor 3kw

GSK Servo motor 2.4kw

GSK Servo motor 2kw

GSK Servo motor 1.75kw

GSK Servo motor 1.75kw

GSK motor 1.75kw

Z axis motor

GSK Servo motor 5.5kw

GSK Servo motor 2.4kw

GSK Servo motor 2kw

GSK Servo motor 1.75kw

GSK Servo motor 1.75kw

GSK motor 1.75kw

System-FANUC

Controller

FANUC Oi TF plus

FANUC Oi TF plus

FANUC Oi TF plus

FANUC Oi TF plus

FANUC Oi TF plus

FANUC Oi TF plus

Spindle motor

GSK Servo 15 kw

GSK Servo 11kw

GSK Servo 11kw

GSK Servo 7.5kw

GSK Servo 5.5kw

GSK Servo 4kw

X axis motor

FANUC Servo motor 3kw

FANUC Servo motor 2.4kw

FANUC Servo motor 2kw

FANUC Servo motor 1.75kw

FANUC Servo motor 1.75kw

FANUC motor 1.75kw

Z axis motor

FANUC Servo motor 5.5kw

FANUC Servo motor 2.4kw

FANUC Servo motor 2kw

FANUC Servo motor 1.75kw

FANUC Servo motor 1.75kw

FANUC motor 1.75kw

Coolant pump power

w

480w

480w

480w

480w

480w

480w

Machine Dimensions

Dimension(L×W×H)

mm

4600/5600/6500/7300 x1800x1950

4600/5600/6500 x1800x1950

2950x1780x1850

2600 / 2950x1780x1850

2700 / 3050x1550x1700

2700x1550x1700

Packing size(L×W×H)

mm

4800/5800/6700/7500 X2300X2550

4800/5800/6700 X2300X2550

3300x2270x2280

3000 / 3300x2270x2280

2950 / 3300x2260x2280

2950x2260x2280

Net/Gross weight

kg

8500/9000/10700/12000

7300/7800/9500

4200/4500

3500/3800

4000/4300

2900/3200

3300/3600

2600/2900
