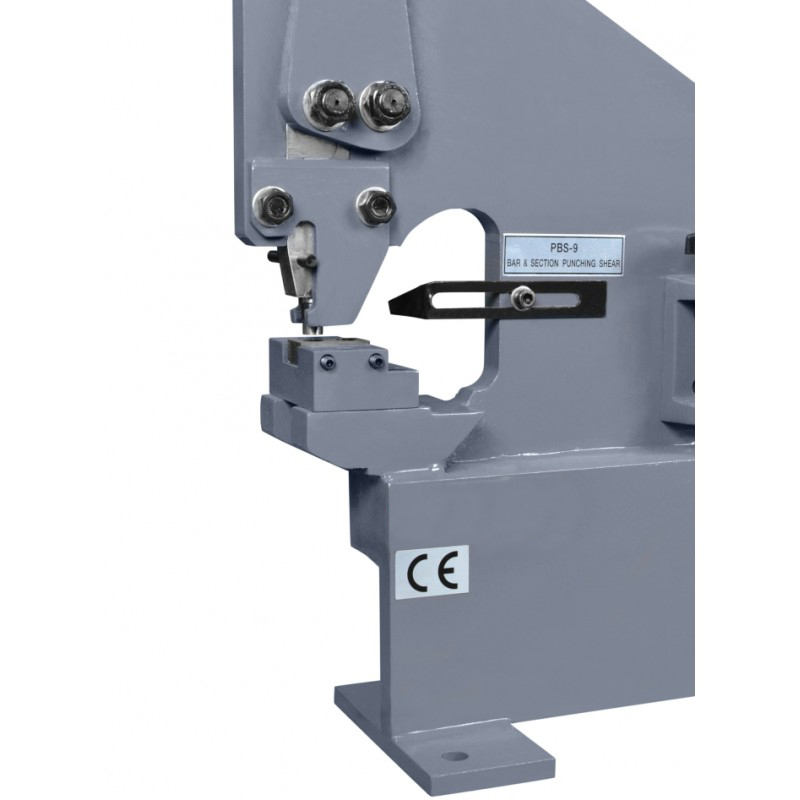

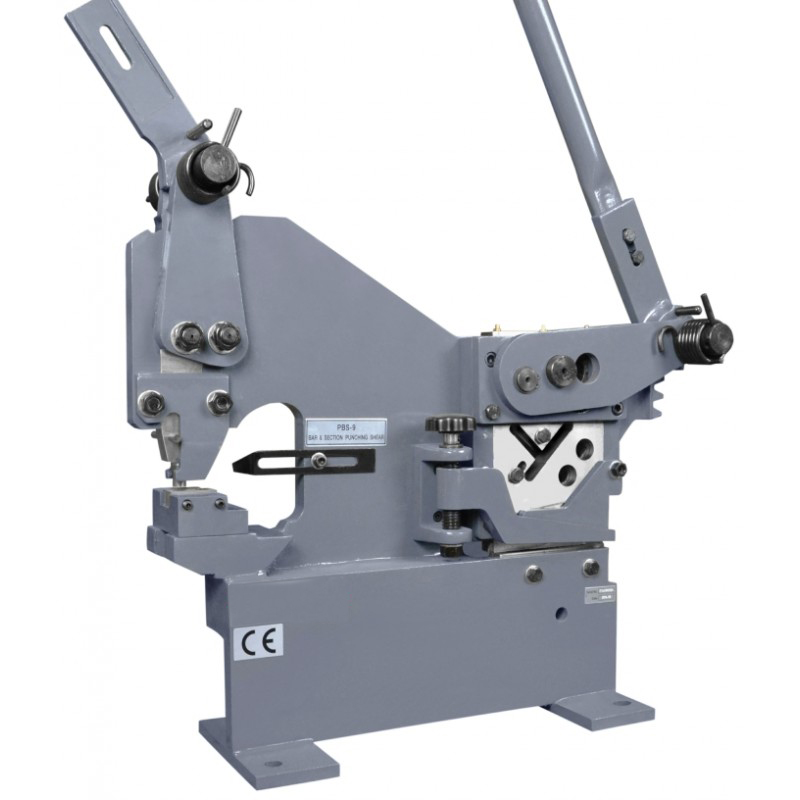

PBS-9 Bar & Section Shear
Features:
A.Double functions for cutting and punching
B.Round deep-hole, square or similar stamps
C. A good choice for sheet-metal users
D. Rigid cutter for sheet metals, flat steel and round/square/angular steel
E. Our bar and section shear is used for shearing various metal plates, flat steel, round bar steel
F.Round deep-hole,square or similar stamps
PBS-9 Bar & Section Shear
Specification:
|
Model
|
PBS-8
|
PBS-7
|
PBS-9
|
|
Capacity(mm)
(mild steel)
|
Round steel
|
16
|
22
|
22
|
|
Square steel
|
16
|
20
|
20
|
|
Flat steel
|
100X10
|
90X14
|
90X14
|
|
Angle steel
|
40X6
|
60X7
|
60X7
|
|
T-steel
|
40X6
|
60X7
|
60X7
|
|
Plate steel
|
8
|
10
|
10
|
|
Body packing size(cm)
|
66X28X61
|
97X36X67
|
110X36X92
|
|
Handle packing size(cm)
|
120X16X12
|
120X16X12
|
120X16X12
|
|
N.W/G.W(kg)
|
45/52
|
96/111
|
130/158
|
|
Model
|
PBS-9
|
|
Max.punching capacity(mm)
|
8.0
|
|
Throat depth(mm)
|
160
|
|
Punch mold and die(mm)
|
55X34X18
|
