lathe machine GH1440K

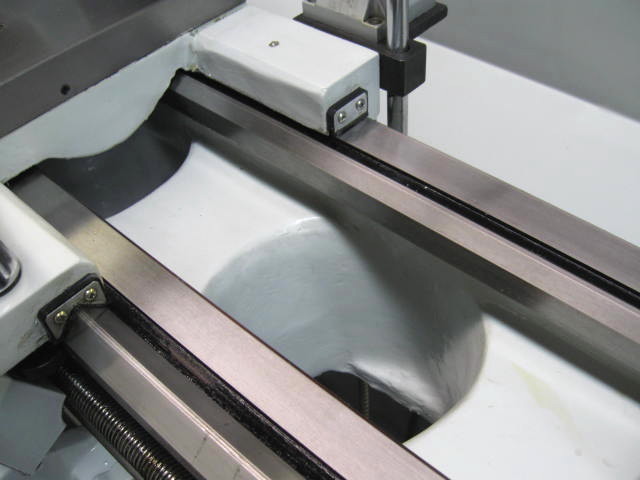

1. Hardened and
ground bed ways.
2. 12 speeds all geared head stock.
3. 3HP(2.4kW)three phase motor.
4. Foot brake giving rapid braking.
5. Emergency stop button equipped on the front
of headstock.
6. Jog button for easy gear engagement and
inching spindle.
7. Extra safety switch shuts down machine
automatically for changing belt or gear for threading cutting.
|
Specification
|
|
ITEMS
|
GH-1440K
|
|
General capacity
|
Max. swing over
bed
|
mm
|
Φ356(14")
|
|
Max. swing over
slide
|
mm
|
Φ210(8-1/5")
|
|
Max. swing in
gap
|
mm
|
Φ508(20")
|
|
Width of bed
|
mm
|
260(10-1/5")
|
|
Max. Length of
workpiece
|
mm
|
750(30")/1000(40")
|
|
Main spindle
|
Taper of
spindle bore
|
|
M.T.No.5
|
|
Diameter of
spindle hole
|
mm
|
Φ40(1-1/2")
|
|
Number of
spindle speeds
|
|
12
|
|
Range of
spindle speeds
|
|
40-1800
|
|
Spindle nose
|
|
D1-4
|
|
Threading &Feeding
|
Metric pitch
threads
|
mm
|
0.4-7(37kinds)
0.45-7.5(23kinds)
|
|
Whit-worth
threads
|
TPI
|
4-56(28kinds)
4-112(40kinds)
|
|
Range of
longitudinal feeds
|
mm
|
0.043-0.653(0.0012"-0.0294"rev)
|
|
Range of cross
feeds
|
mm
|
0.024-0.359(0.0004"-0.0103"rev)
|
|
Leadscrew
|
Diameter of
leadscrew
|
mm
|
Φ22(7/8")
|
|
Pitch threads
of leadscrew
|
mm
|
4mm or 8T.P.I
|
|
Tailstock
|
Travel of
tailstock quill
|
mm
|
120(4-3/4")
|
|
Diameter of
tailstock quill
|
mm
|
Φ45(1-25/32")
|
|
Taper hole of
tailstock quill
|
|
M.T.No.3
|
|
Power
|
Power of main
motor
|
|
2.4Kw(3HP),3Ph,4P,60Hz,230V
|
|
Coolant pump
motor power
|
kW
|
0.04(0.055HP)
|
|
Overall dimensions
(L×W×H)
|
mm
|
1900×710×1170
|
|
Packing size of lathe
(L×W×H)
|
mm
|
1900×760×1435
|
|
Net weight
|
kg
|
1250(2750 lbs)
|
|
Gross weight
|
kg
|
1380(3040 lbs)
|
