FSG60220NC Full Auto Surface Grinder
Standard features:
l External hydraulic unit ensures low temperature rising and supply stable power.
l Auto center lubrication unit
lVery easy to set auto ground program include rough, finish ,and spark-out stroke
l Precision grinding spindle runs in maintance-free,support by preload high precision angular ball bearing.
l Machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.
l MPG is equipped for Y&Z axis (spindle elevating and cross feed),the operating position is free,it is so easy to control the machine.

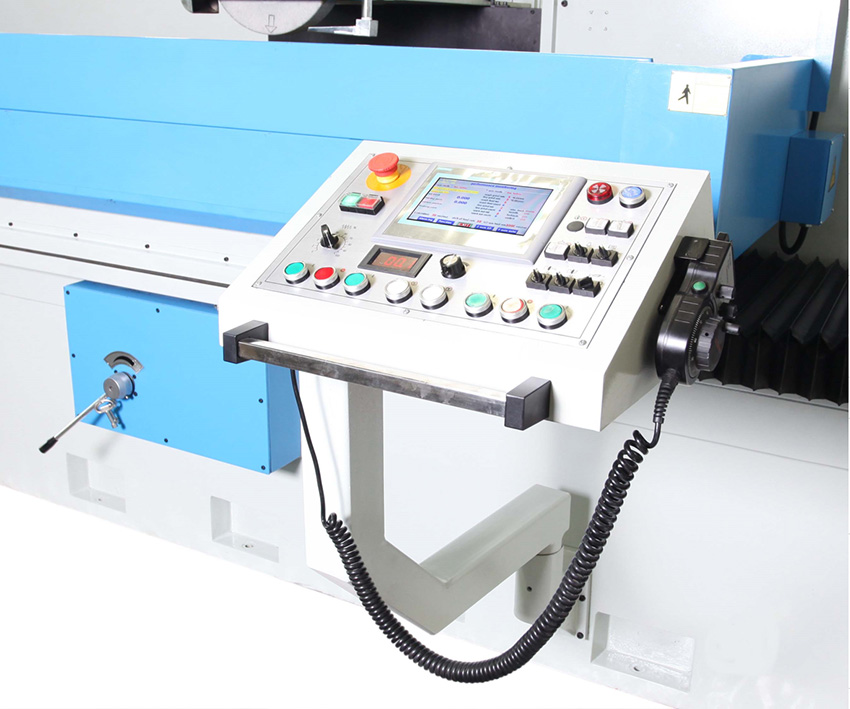

l The machine is standard equipped with SIEMENS 7” LCD-TFT colorful touchable screen.Built in program of our engineers’ genius philosophy makes the operation very simple and convenient for the operators.
Technical Parameters
|
Specifications
|
|
Item/Model
|
unit
|
FSG60120NC
|
FSG60160NC
|
FSG60220NC
|
FSG60600NC
|
|
Table size W*L
|
mm
|
630*1250
|
630*1600
|
630*2200
|
630*6000
|
|
Max.grinding size
|
mm
|
600*1250
|
600*1600
|
600*2200
|
600*6000
|
|
Max.distance from table to spindle center
|
mm
|
600
|
600
|
600
|
600
|
|
Magnetic chuck size(optional equipment)
|
mm
|
600*1000*1
|
600*800*2
|
600*1000*2
|
600*1000*6
|
|
Speed of table longitudinal move
|
m/min
|
5~25
|
5~25
|
5~25
|
5~25
|
|
Wheel head cross move
|
|
Auto intermittent feed
|
mm/t
|
0~30
|
0~30
|
0~30
|
0~30
|
|
Rapid speed
|
mm/min
|
0~600
|
0~600
|
0~600
|
0~600
|
|
Feed of MPG
|
mm/div
|
0.005
|
0.005
|
0.005
|
0.005
|
|
Vertical motion
|
|
Rapid down speed
|
mm/t
|
0.005,0.01,0.02,0.03,0.04
|
|
Rapid speed
|
mm/min
|
0~300
|
|
Feed of MPG
|
mm/div
|
0.005
|
0.005
|
0.005
|
0.005
|
|
Grind wheel size
|
mm
|
355*(20~50)*127
|
355*(20~50)*127
|
355*(20~50)*127
|
355*(20~50)*127
|
|
Spindle motor power
|
kw
|
7.5
|
7.5
|
7.5
|
11
|
|
Packing size
|
|
cm
|
434*230*250
|
510*230*250
|
658*230*250
|
|
Gross weight
|
|
kg
|
6500
|
7000
|
8000
|
|
