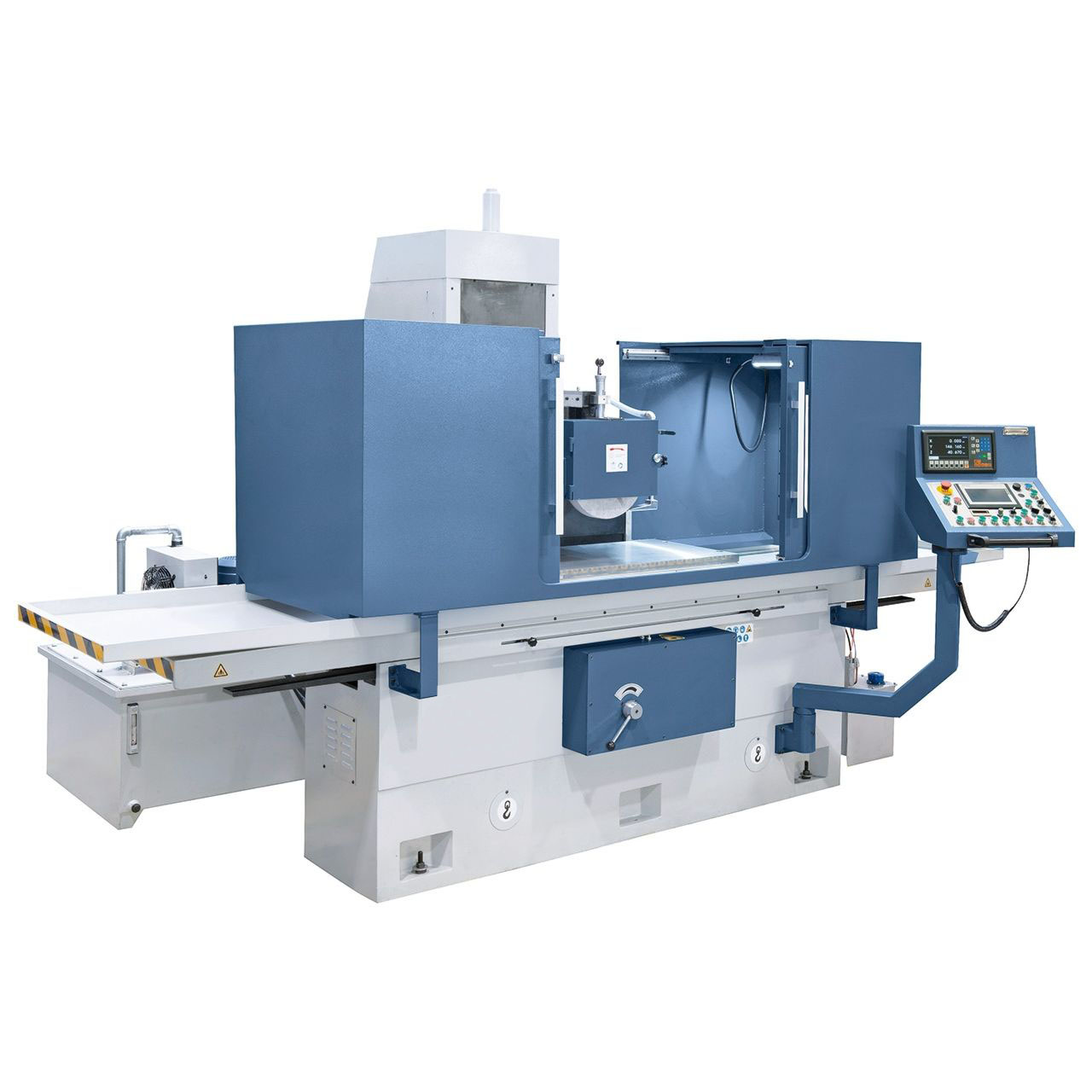

FSG50100NC Full Auto Surface Grinder
Standard features:

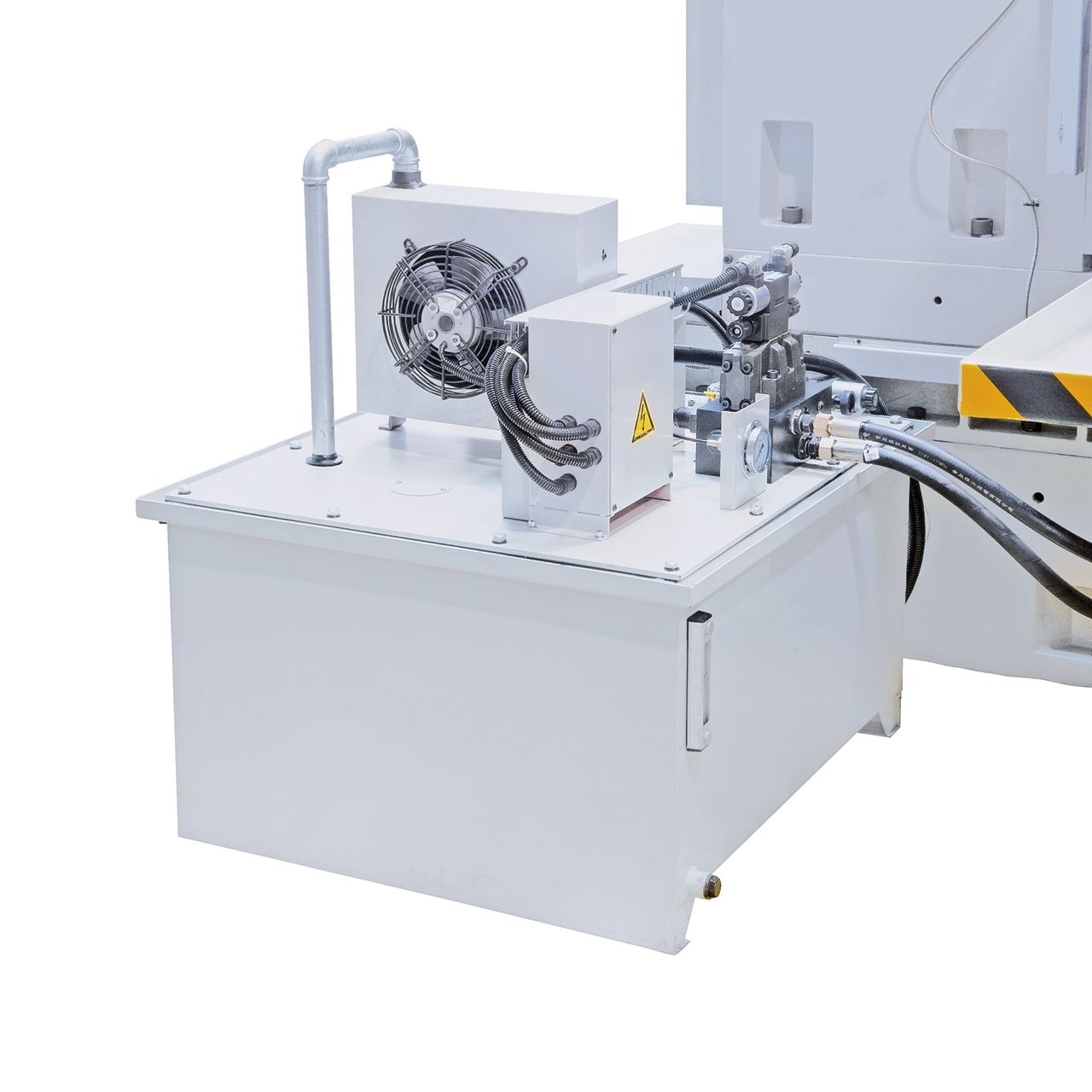

l External hydraulic unit ensures
low temperature rising and supply stable power.
l Auto center lubrication unit
lVery easy to set auto ground
program include rough, finish ,and spark-out stroke
l Precision grinding spindle runs
in maintance-free,support by preload high precision angular ball bearing.
l Machine is designed for
continuous operating at maximum speed, very quiet operation, maximum accuracy.
l MPG is equipped for Y&Z
axis (spindle elevating and cross feed),the operating position is free,it is so
easy to control the machine.
l The machine is standard
equipped with SIEMENS 7” LCD-TFT colorful touchable screen.Built in program of
our engineers’ genius philosophy makes the operation very simple and convenient
for the operators.
Technical Parameters
|
Item/ Model
|
Unit
|
FSG50100NC
|
FSG50160NC
|
FSG50450NC
|
|
Table size W*L
|
mm
|
500*1000
|
500*1600
|
500*4500
|
|
Max.grinding size
|
mm
|
500*1000
|
500*1600
|
500*4500
|
|
Max.distance from table to spindle center
|
mm
|
600
|
600
|
600
|
|
Magnetic chuck size(optional equipment)
|
mm
|
500*1000*1
|
500*800*2
|
500*1000*4
|
|
Speed of table longitudinal move
|
m/min
|
5~25
|
5~25
|
5~25
|
|
Wheel head cross move
|
|
|
|
|
|
Auto intermittent feed
|
mm/t
|
0~30
|
0~30
|
0~30
|
|
Rapid speed
|
mm/min
|
0~600
|
0~600
|
0~600
|
|
Feed of MPG
|
mm/div
|
0.005
|
0.005
|
0.005
|
|
Vertical motion
|
|
|
|
|
|
Rapid down speed
|
mm/t
|
0.005,0.01,0.02,0.03,0.04
|
|
Rapid speed
|
mm/min
|
0~300
|
0~300
|
0~300
|
|
Feed of MPG
|
mm/div
|
0.005
|
0.005
|
0.005
|
|
Grind wheel size
|
mm
|
355*(20~50)*127
|
355*(20~50)*127
|
355*(20~50)*127
|
|
Spindle motor power
|
kw
|
7.5
|
7.5
|
11
|
|
Packing size
|
cm
|
399*225*250
|
564*225*250
|
1150*238*250
|
|
Gross weight
|
kg
|
5500
|
6000
|
14500
|
