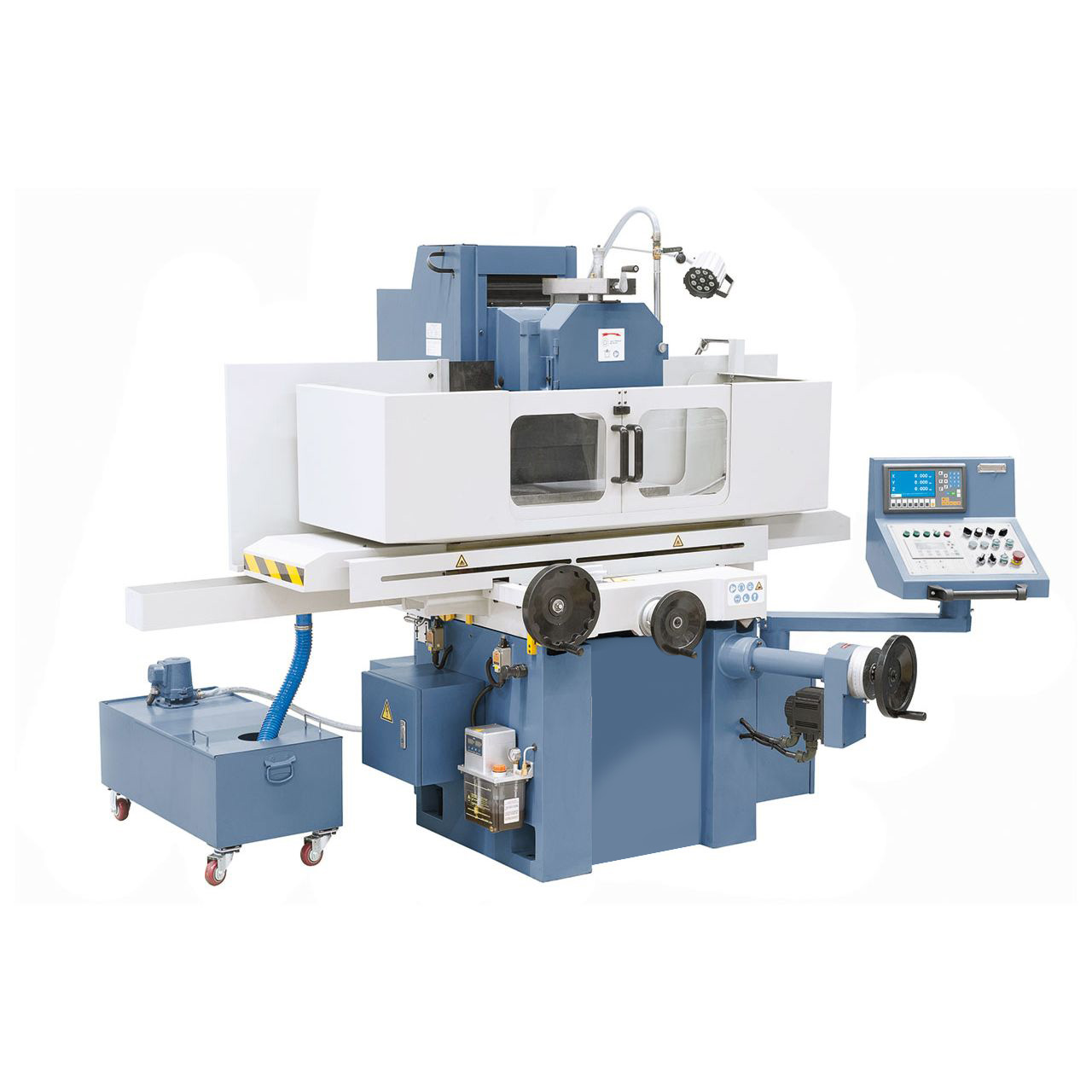

SGA3063AHD Full Auto Surface Grinder
AH: 2-axis automatic feed
hydraulic automatic longitudinal feed
electronic automatic cross feed
manual down feed
AHR: 2-axis automatic feed
hydraulic automatic longitudinal feed
electronic automatic cross feed
electronic rapid up and down feed
AHD: 3-axis automatic feed
hydraulic automatic longitudinal feed
electronic automatic cross feed
incremental auto down feed (use hydraulic system and gear box)
Standard features:
* Auto feed & manual on transverse,auto hydraulic transmission & manual feed on longitudinal,rapid feed,step-feed and auto down feed control on vertical.
* Vertical movement adopts PLC to realise the auto grinding.

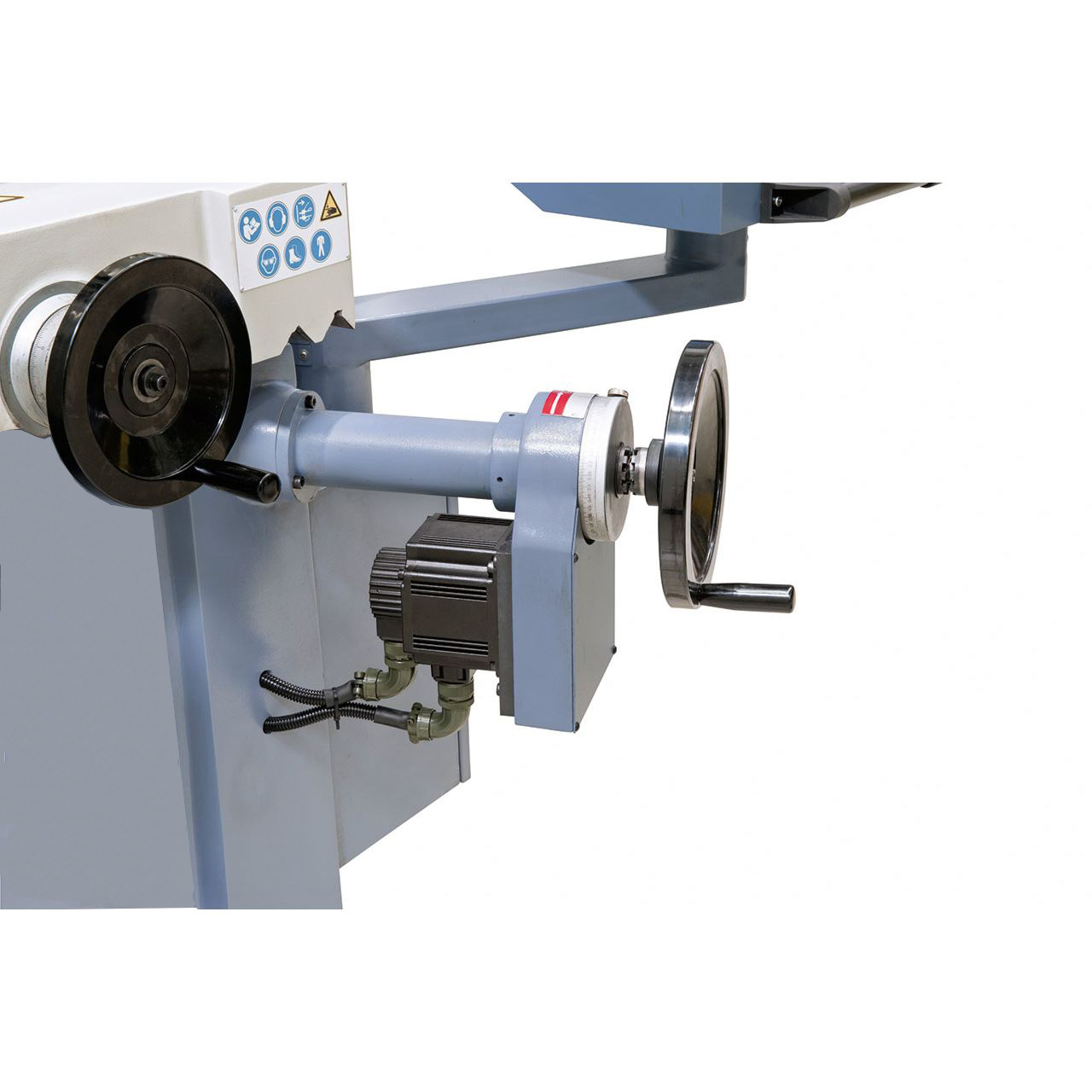

*“+” saddle is adopted in the design,all these three guide way is lined with TF wearable material and lubricated by intermittent forced oil pump,the column have double walls,the table right and left moving is driven by variable displacement vane pump and adopted closed type hydraulic system.all above make the machine with high rigidity and precision,small thermal distortion,moving smoothly,low nose and temperture increase,is easy to maintain.the table is driven by manual or by hydraulic in right or left direction,the speed is variable changed by adjusting lever located on the saddle,driven by manual or by motor through driven the ball leading screw. The grinding head could be driven by servo motor,also it be driven by manual.
Application:
The machine is used for mid-type & mini –type material processing workshop and the other maintain & tools workshop in.
The machine is mainly used to grinding the surface with the wheel circle face,the surface been ground have high precision and low roughness.also it can grind the vertical surface with the end face of the wheel, the workpieces can be placed on the magnetic chuck or fixed directly on the table or with other fixtures suit to various work pieces.
The machine can be used for grinding steel,cast iron and non ferrous metals.
Technical Parameters
|
Item/model
|
unit
|
SGA3063AHD
|
|
Table size（W*L）
|
mm
|
305*635
|
|
Max.longitudinal &cross travel
|
mm
|
765*340
|
|
Max.distance from spindle center to
table
|
mm
|
580
|
|
Electro magnetic chuck size
|
mm
|
300*600
|
|
Speed of table longitudinal movement
|
m/min
|
7-23
|
|
Table transverse movement
|
Auto feed
|
mm/min
|
0.1-8
|
|
Rapid speed
|
m/min
|
990
|
|
Feed of handwheel
|
mm/div
|
0.02
|
|
Wheelhead vertical movement
|
Auto feed
|
mm/min
|
0.005/0.01/0.02/0.03/0.04/0.05
|
|
Rapid speed
|
m/min
|
460
|
|
Feed of handwheel
|
mm/div
|
0.005
|
|
Grinding wheel
|
speed
|
rpm
|
1450(50HZ)、1750（60HZ）
|
|
Size ( OD*W*ID)
|
mm
|
350*40*127
|
|
Spindle motor
|
kw
|
5.5
|
|
Hydraulic motor
|
kw
|
2.2
|
|
Colling pump motor
|
kw
|
0.125
|
|
Elevating motor
|
kw
|
0.5
|
|
Cross feed motor
|
kw
|
0.04
|
|
Max.loading capacity(include chuck)
|
kg
|
270
|
|
Total rated power
|
kw
|
9
|
|
Height of machine
|
mm
|
1890
|
|
Floor space（L*W）
|
mm
|
2900*2200
|
|
Gross weight
|
kg
|
2900
|
|
Package dimensions（L*W*H）
|
mm
|
2350*2220*2150
|
Standard appendix:
(1) Electro magnetic chuck,
(2) coolant tank
(3)demagnetic eqipment
(4)wheel cover guard
(5)leveling wedge and foundation bolt
(6) balance arbor

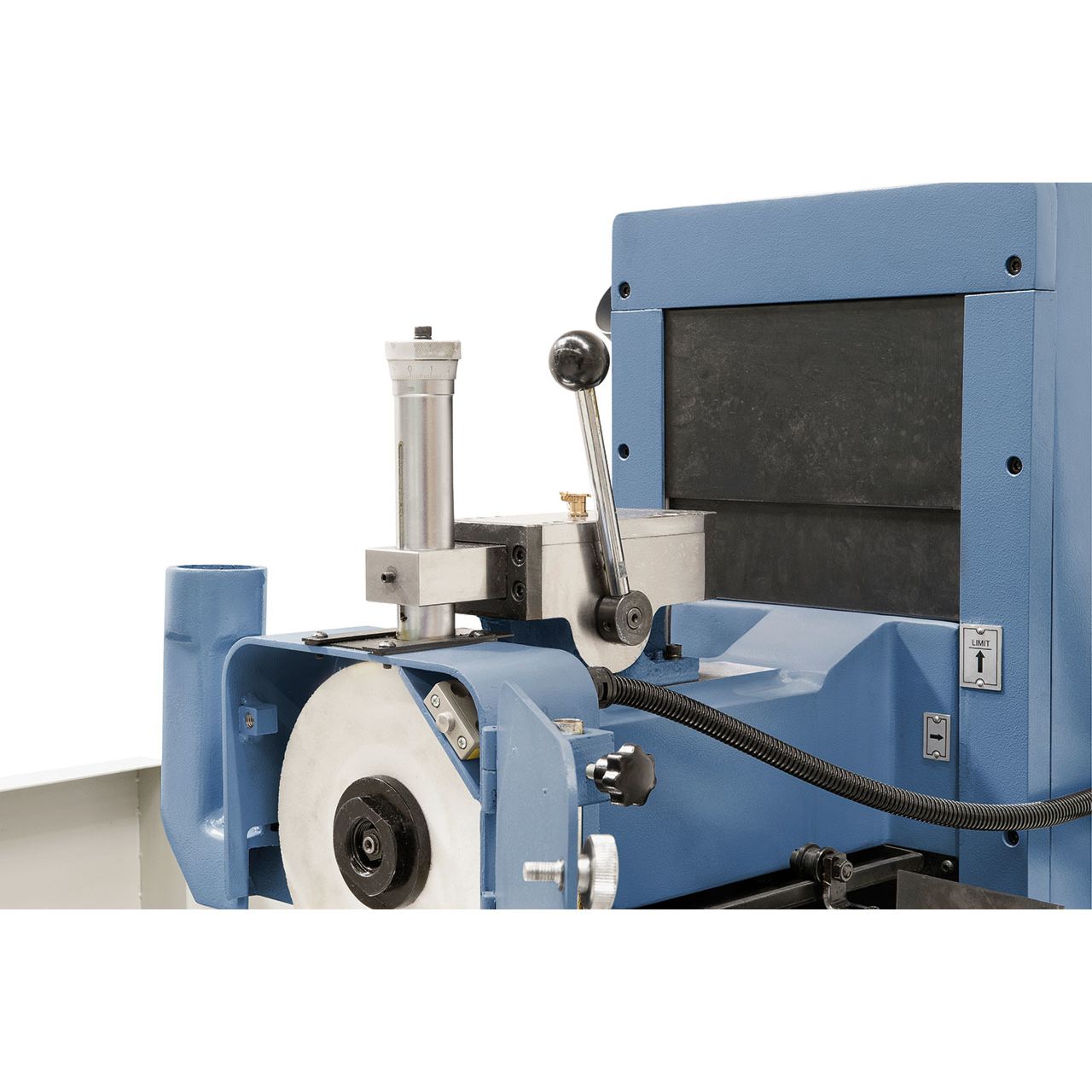

(7)wheel dresser base
(8) wheel flange and wheel
(9) tool box and tools

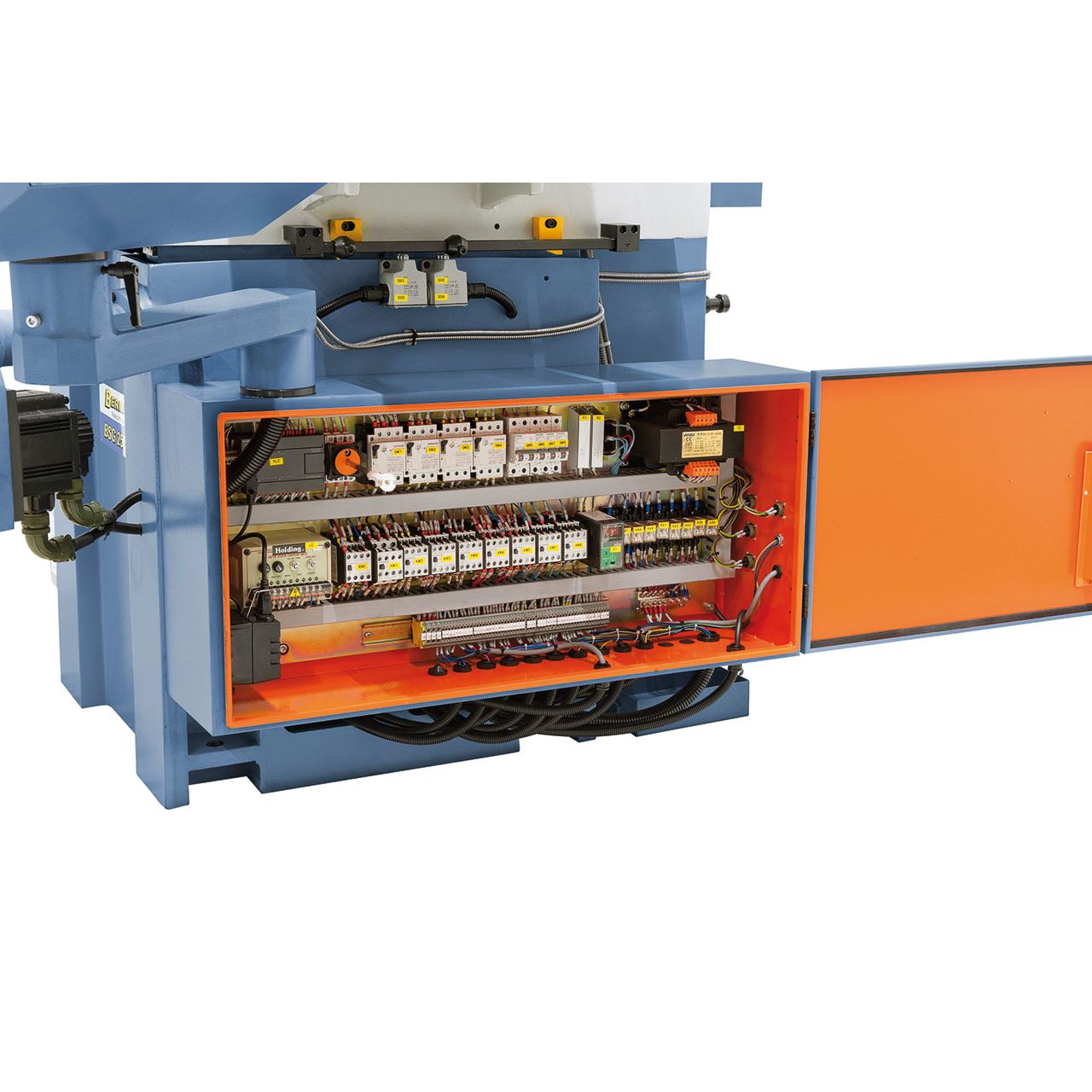

(10)PLC auto grinding controller
Optional accessories:
(1) Balancing stand
(2)coolant tank with dust collector
(3) coolant tank with magnetic separator
(4)coolant tank with dust collector and magnetic separator
(5)coolant tank with paper filter
(6) coolant tank with paper filter and magnetic seprator
(7) manual parallel wheel dresser
(8)Universal wheel dresser
(9)Radius &angle dresser
(10)Sine dresser
(11) Digital readout
(12) Luxurious (tiltable) permanent magnetic chuck
