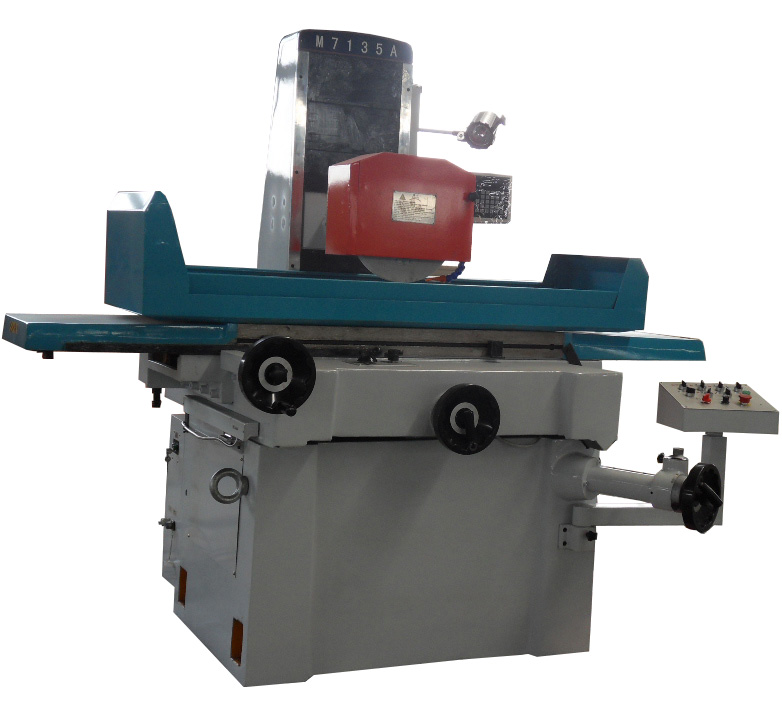

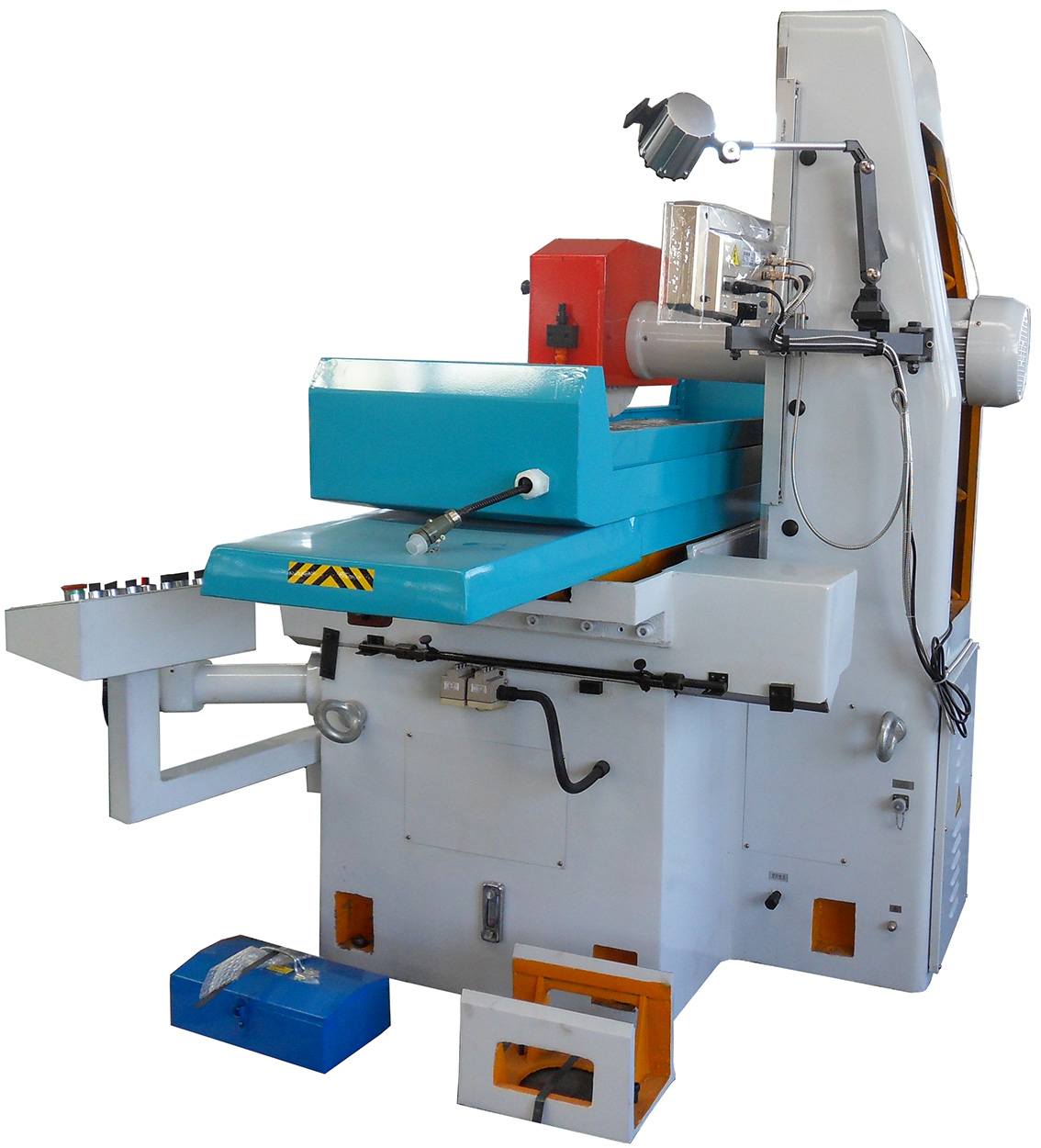

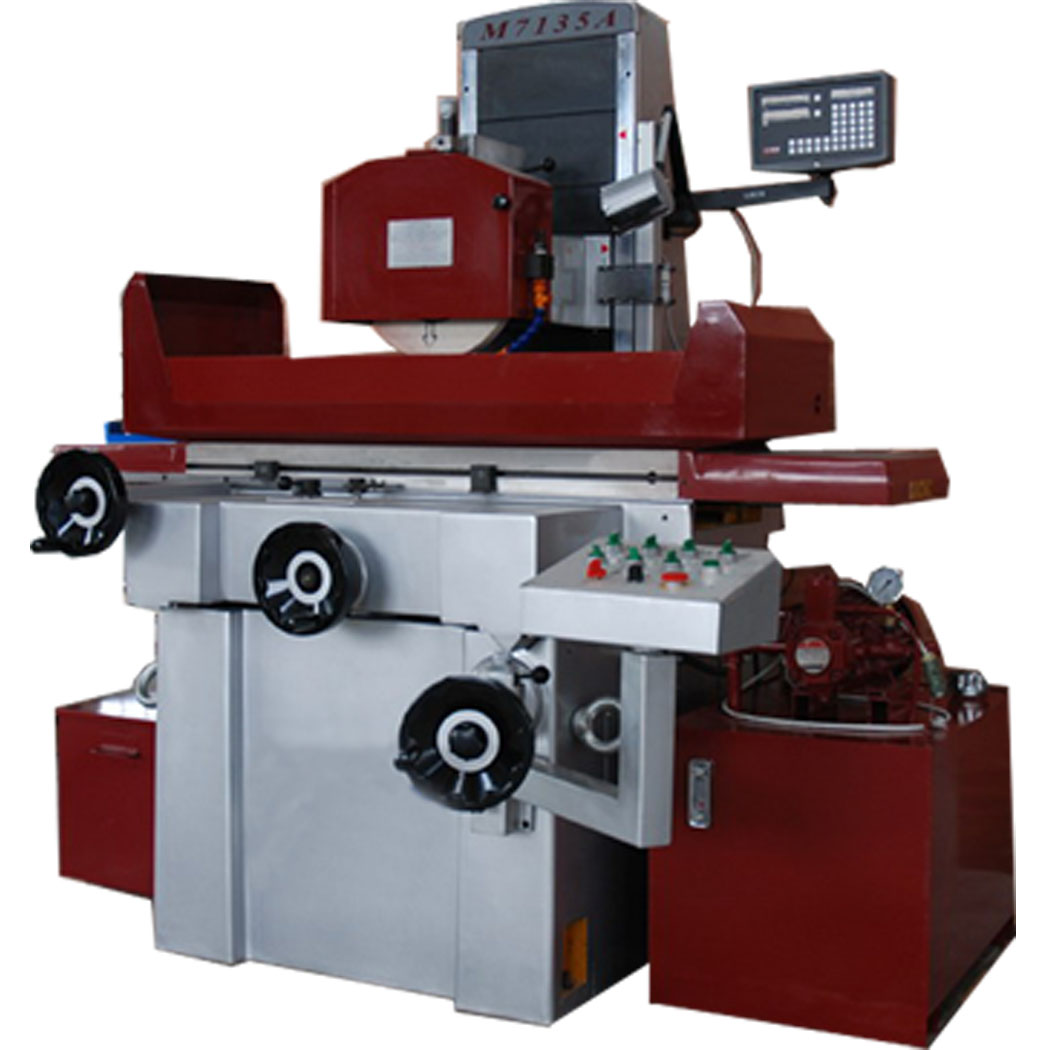

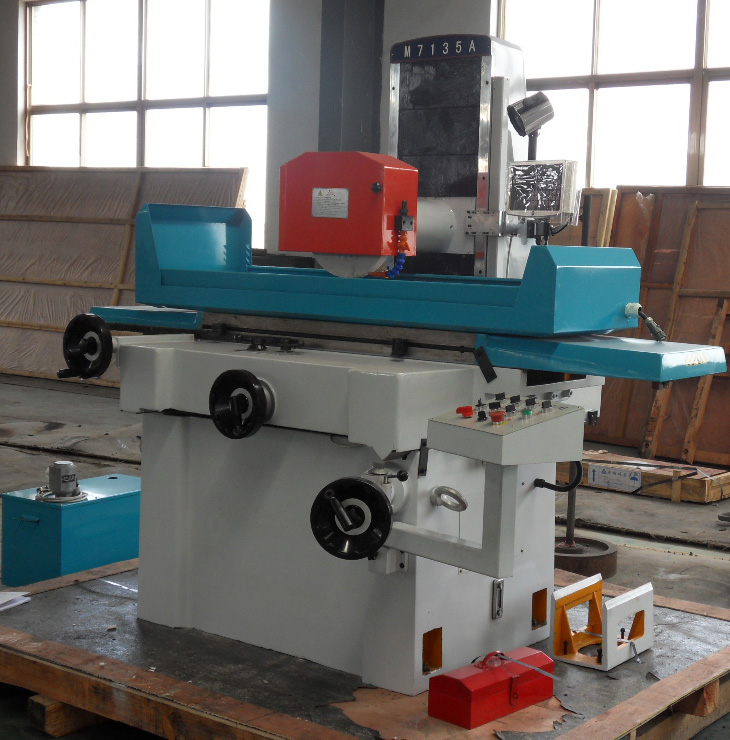

M7135A Hydraluic surface grinding machine

Main Features:

* Compact structure, and easy operate.
* Hydraulic transmission on longitudinal manual and auto feed on transverse, rapid movement and micro-adjust mechanism on vertical
.* The guide ways of saddle and bed is adopted with V type and plane guide pair and the low guide ways are adhesive with plastic, so that the moving is facile and light.
* DRO can be selected
* Rapid moving up or down is driven by the micro motor located on the lower of grinding head body. Drive the worm pair to complete the rapid movement. When working, pull the micro setting handle on bed to engage the worm. Then push the button on the panel. If feed by hand, disengage the micro-worm on bed to turn the hand wheel, when micro-feed, put the micro-adjustable knob to engaged the worm and turn the micro-adjusting handle to realize the micro-feed. The lead screw pair timing wheel and micro-motor is located in the saddle of bed.

Technical Parameters

Description	unit	M7135A
Max.dim grinding component(L × W × H)	mm	600 × 350 × 430	800 × 350 × 430	1000 × 350 × 430
Max.longitudinal travel	mm	620	820	1020
Max.cross travel	mm	390	390	390
Max.distance from spindle center to table surface	mm	580	580	580
Max.load of worktable	kg	360	400	400
Worktable surface(L × W)	mm	600 × 350	800 × 350	1000 × 350
T-slots of worktable	mm × n	18 × 3
Speed of worktable	m/min	0-26
Backward and forward automatic feed	mm	0.5-20
Feed-rate of hand wheel	mm	0.02/graduation 4/revolution
Abrasive wheel dim( D×W×d )	mm	300 × 32 × 75	300 × 32 × 75	350 × 32 × 127
Spindle speed	r/min	1450
Vertical move rate per circle of micro adjusting mechanism	mm	0.04
Feed rate per scale of micro-adjusting	mm	0.001
Spindle motor	kw	4(Y112M-4 B5)	4(Y112M-4 B5)	5.5
Overall dimesions of machine(L × W × H)	mm	1860 × 1722 × 1917	2260 × 1722 × 1917	2660 × 1722 × 1917
Packaging size(L × W × H)	mm	2000 × 1830 × 2200	2400 × 1830 × 2200	2800 × 1830 × 2200
Net/Gross weight	t	2.7 2.4	3.3 3.0	3.9 3.7

Standard Appendix:

(1) tool box   (2) balancing stand and bar (3) special wrench

(4)flange wrench (5) screwdriver (6)Wheel Balancing screw (7)open-end wrench (8)inner hexagon spanner   (9) wheel dresser holder   (10) machine stand pad   (11) wheel flange

(12) Diamond wheel dresser   (diamond pen) (13)  Electro magnetic chuck

Optional accessories:

(1)tiltable permanent chuck or  electro magnetic chuck   (2) demagnetizer    (3) overhead parallel dresser            (4) angle dresser     (5) radius dresser      (6) precision vice       (7) dust suction device (8) 2 - axis digital readout system

(9) working light   (10)wheel flange

Technical Parameters

Description	unit	M7135A
Max.dim grinding component(L × W × H)	mm	600 × 350 × 430	800 × 350 × 430	1000 × 350 × 430
Max.longitudinal travel	mm	620	820	1020
Max.cross travel	mm	390	390	390
Max.distance from spindle center to table surface	mm	580	580	580
Max.load of worktable	kg	360	400	400
Worktable surface(L × W)	mm	600 × 350	800 × 350	1000 × 350
T-slots of worktable	mm × n	18 × 3
Speed of worktable	m/min	0-26
Backward and forward automatic feed	mm	0.5-20
Feed-rate of hand wheel	mm	0.02/graduation 4/revolution
Abrasive wheel dim( D×W×d )	mm	300 × 32 × 75	300 × 32 × 75	350 × 32 × 127
Spindle speed	r/min	1450
Vertical move rate per circle of micro adjusting mechanism	mm	0.04
Feed rate per scale of micro-adjusting	mm	0.001
Spindle motor	kw	4(Y112M-4 B5)	4(Y112M-4 B5)	5.5
Overall dimesions of machine(L × W × H)	mm	1860 × 1722 × 1917	2260 × 1722 × 1917	2660 × 1722 × 1917
Packaging size(L × W × H)	mm	2000 × 1830 × 2200	2400 × 1830 × 2200	2800 × 1830 × 2200
Net/Gross weight	t	2.7 2.4	3.3 3.0	3.9 3.7
