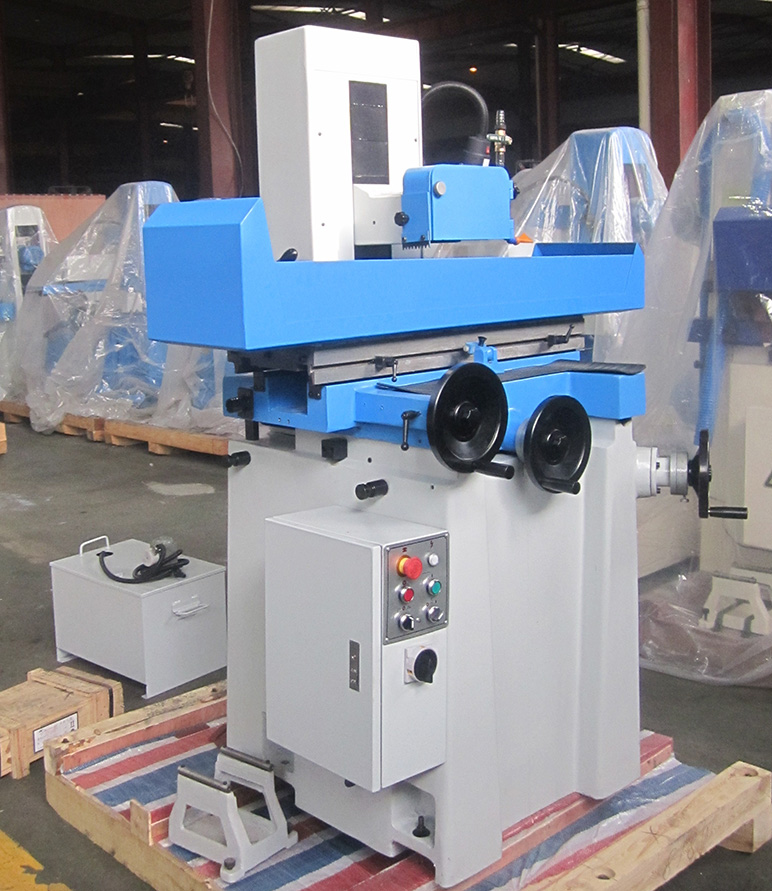

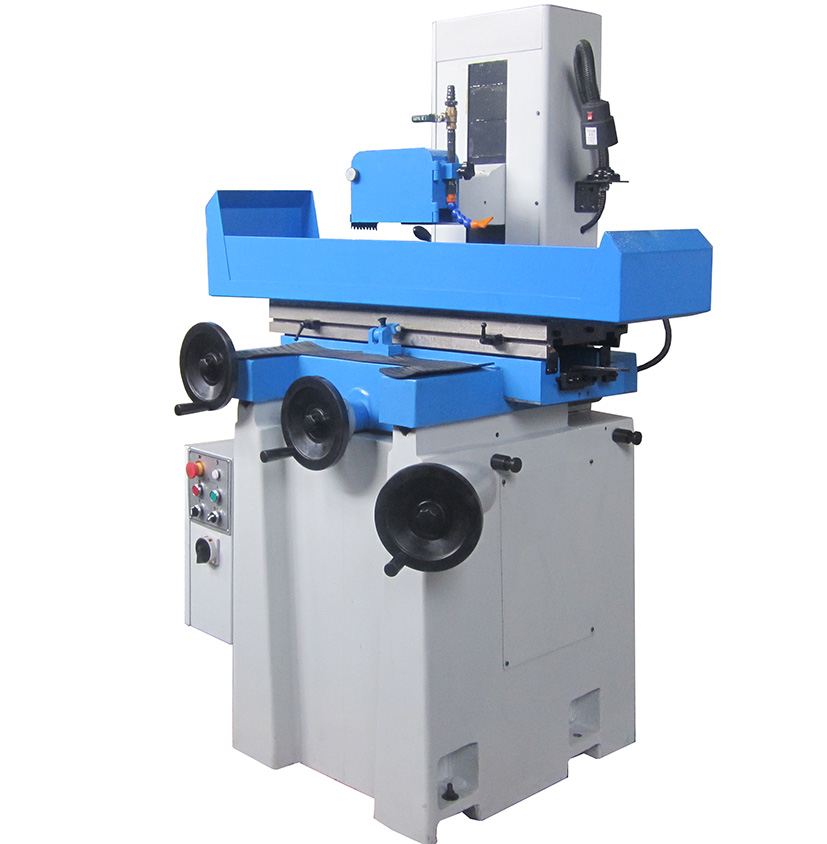

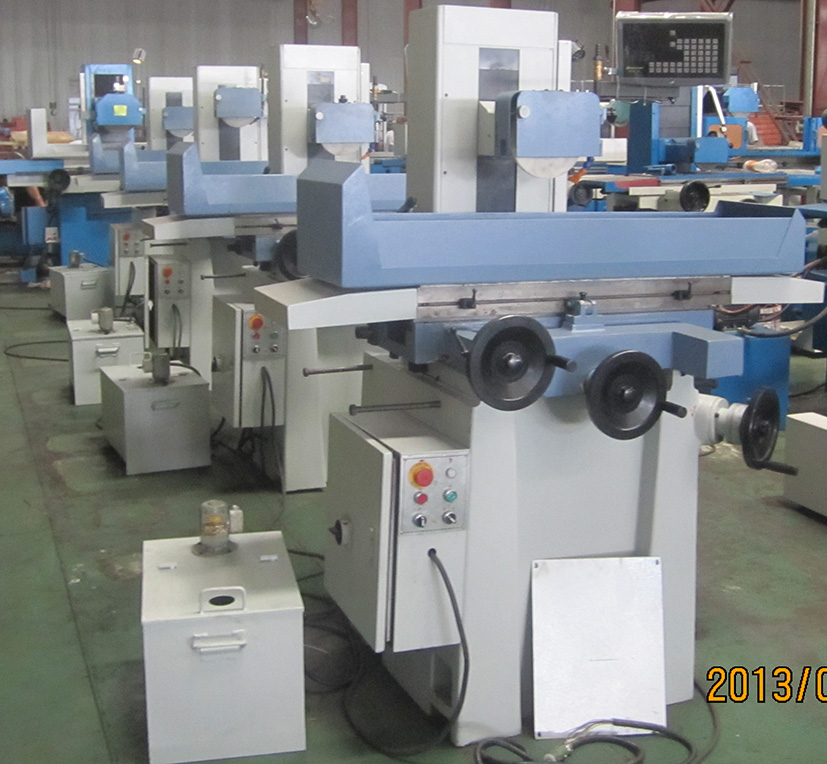

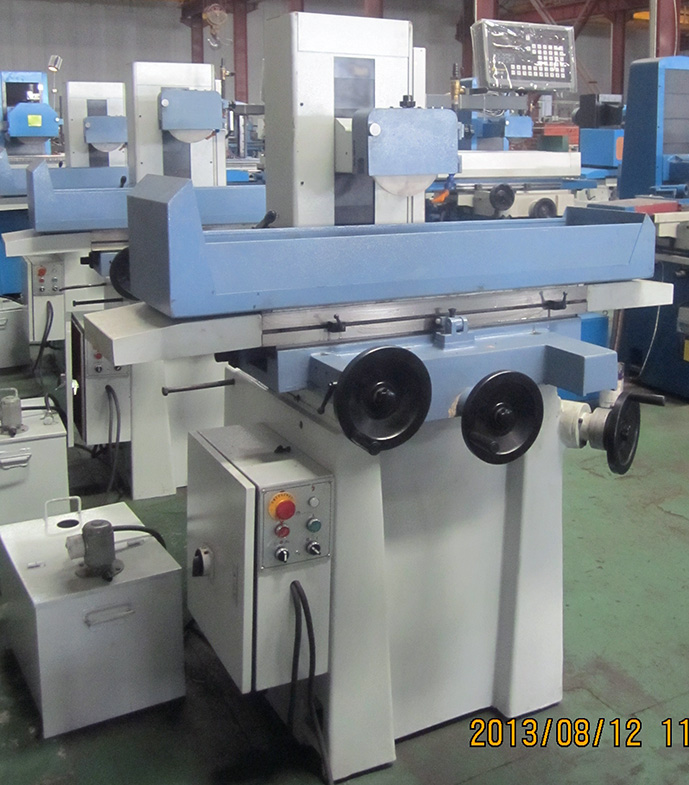

SG618A SG818A Manual Surface Grinder
Standard features:
Widely useful,grind various surface.
Spindle and leadscrew is imported.
Rolling ball guideway is used on longitudinal direction.
Double V type guideways.
Vertical handwheel is fixed on bed.
Manual oil pump lubricates all moveable parts.
Technical Parameters
|
Model No.
|
SG618A
|
SG818A
|
|
Max. width to be ground
|
165mm
|
220mm
|
|
Max. length to be ground
|
470mm
|
470mm
|
|
Max. height to be ground
|
350mm
|
350mm
|
|
Work table size
|
155×460mm
|
210×450mm
|
|
Permanent magnetic chuck size
|
150×400mm
|
200×450mm
|
|
Max.longitudinal travel
|
500mm
|
500mm
|
|
Max.cross travel
|
185mm
|
240mm
|
|
Max. distance from spindle to table
surface
|
450mm
|
450mm
|
|
Feed of vertical handwheel
|
1per rev.
|
1per rev.
|
|
Grinding wheel size（OD×W×ID）
|
200×13×31.75mm
|
200×13×31.75mm
|
|
Spindle speed
|
3450(60Hz)2850(50Hz)r/min
|
3450(60Hz)2850(50Hz)r/min
|
|
Power of spindle head
|
1.5Kw
|
1.5Kw
|
|
Max. load capacity
|
97kg
|
128kg
|
|
Packing size
|
1340×1120×1930mm
|
1400×1120×1985mm
|
|
N.W.
|
720kg
|
800kg
|
Standard accessories
|
Wheel
|
Balancing arbor
|
Hoisting set
|
Spanner
|
|
Wheel chuck
|
Wheel dresser
|
Coolant system
|
Tool box and special wrench
|
|
Halogen lamp
|
|
|
|
Optional accessories
|
Permanent magnetic chuck
|
Dust collector
|
Wheel balancing stand
|
Cooling and dust collecting equipment
|
