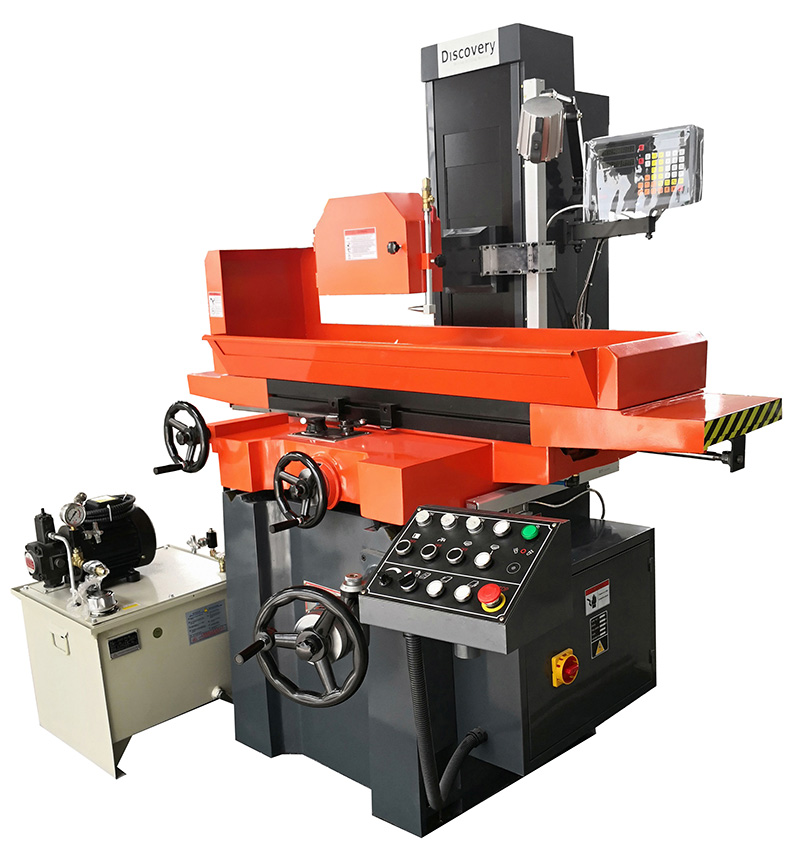

MY3060 Hydraluic surface grinding machine
Standard features:
* Compact structure, and easy operate.
* Hydraulic transmission on longitudinal manual and auto feed on transverse, rapid movement and micro-adjust mechanism on vertical
* The guide ways of saddle and bed is adopted with V type and plane guide pair and the low guide ways are adhesive with plastic, so that the moving is facile and light.
* DRO can be selected

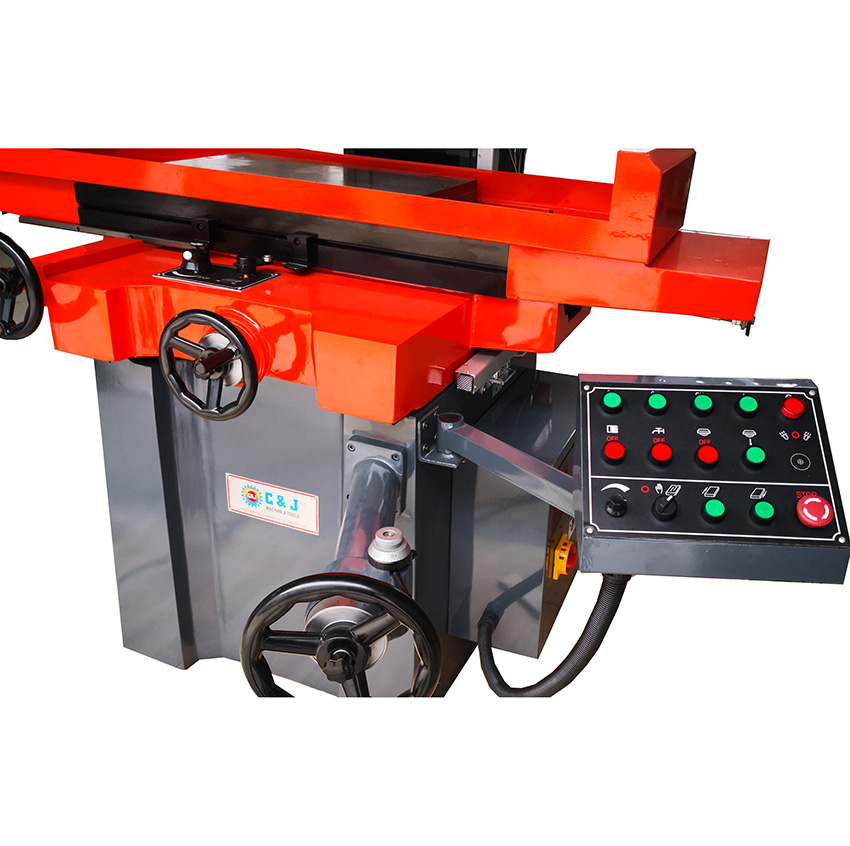

* Rapid moving up or down is driven by the micro motor located on the lower of grinding head body. Drive the worm pair to complete the rapid movement. When working, pull the micro setting handle on bed to engage the worm. Then push the button on the panel. If feed by hand, disengage the micro-worm on bed to turn the hand wheel, when micro-feed, put the micro-adjustable knob to engaged the worm and turn the micro-adjusting handle to realize the micro-feed. The lead screw pair timing wheel and micro-motor is located in the saddle of bed.
Technical Parameters
|
Main specifications
|
Unit
|
MY3060
|
|
Max.workpiece to be Ground (
L×W×H)
|
mm
|
680×300×390
|
|
Max. Grinding Length
|
mm
|
760
|
|
Max. Grinding Width
|
mm
|
330
|
|
Distance From Table Surface
To Spindle Center
|
mm
|
50-500
|
|
Slide way
|
|
V-type rail with Plane
|
|
V-type rail with Steel-ball
|
Kg
|
180
|
|
Table Size (L×W)
|
mm
|
600×300
|
|
Number of T -Slot
|
mm×n
|
14×1
|
|
Speed OF Working Table
|
m/min
|
3-20
|
|
Cross Feed On Handwheel
|
mm
|
0.02/div. 4/rev.
|
|
Vertical Feed On Handwheel
|
mm
|
0.01/div. 4/rev.
|
|
Wheel Size (dia.×width×bore
)
|
mm
|
300×25×76.2
|
|
Spindle Speeds
|
50Hz
|
rpm
|
1450
|
|
Spindle Motor
|
Kw
|
3
|
|
Hydraulic station motor
|
Kw
|
1.5
|
|
Working Pressure
|
Mpa
|
3
|
|
Max.Capacity
|
L/min
|
20
|
|
Minimum Of Numerical
|
L
|
60
|
|
Coolant Pump
|
Kw
|
0.04
|
|
Minimum of Numerical Display
|
mm
|
0.001
|
|
Machine Size (L×W×H)
|
mm
|
1900×1530×1750
|
|
Packing Size (L×W×H)
|
mm
|
1500×1750×1980
|
|
Gross Net weight
|
T
|
1.3 1.4
|
|
|
|
|
|
Standard Appendix:
(1) tool box (2) balancing stand and bar (3) handwheel nut (4)flange wrench
(5) screwdriver (6)Balancing screw (7)open-end wrench (8)inner hexagon spanner
(9) wheel dresser holder (10) machine stand pad (11) wheel flange
(12) diamond wheel dresser (diamond pen) (13) permanent chuck
Optional accessories:
(1) tiltable permanent chuck or electro magnetic chuck (2) demagnetizer (3) angle dresser
(4) radius dresser (5) precision vice (6) 2- axis digital readout system
(7) working light (8)wheel flange
