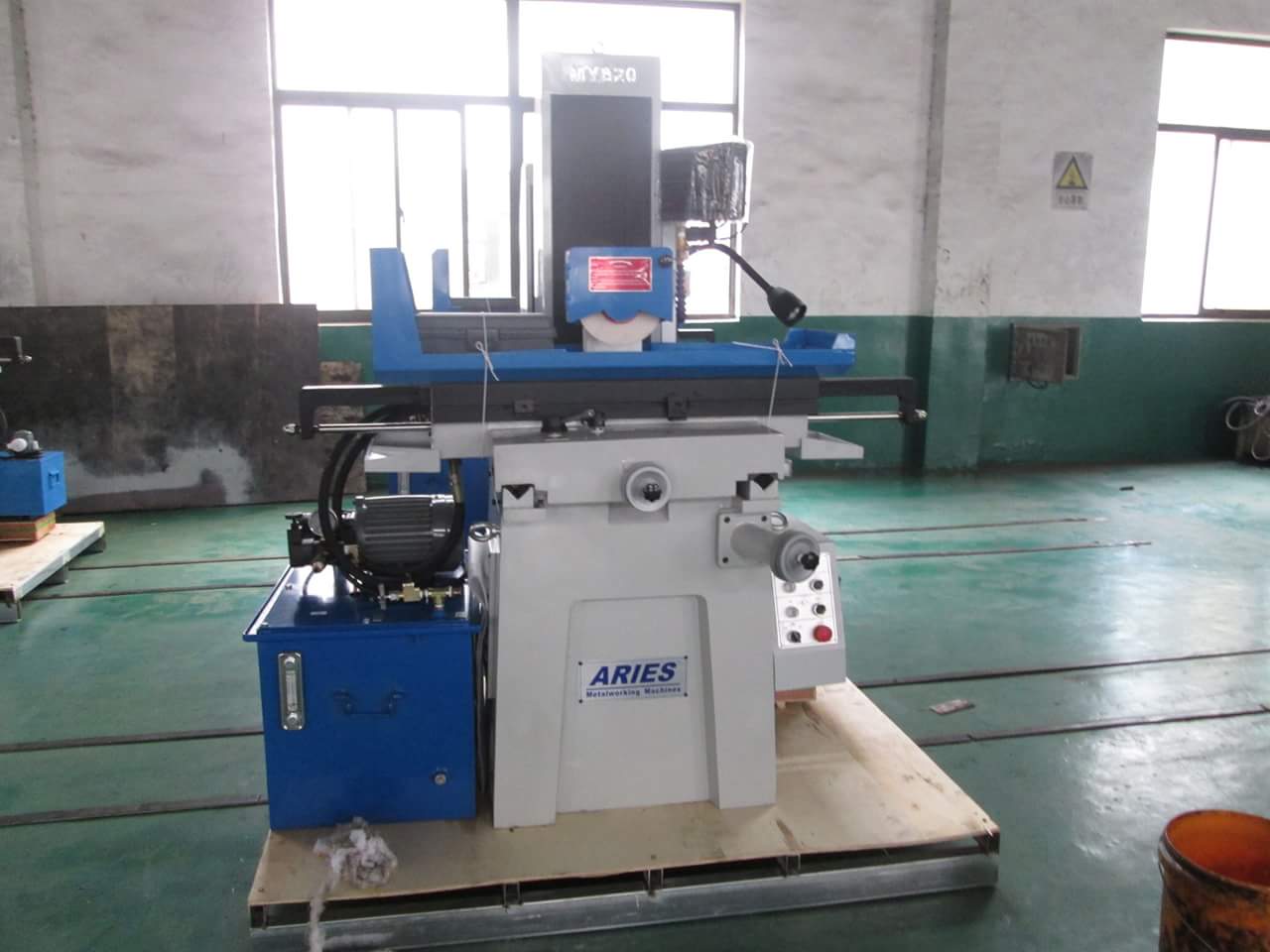

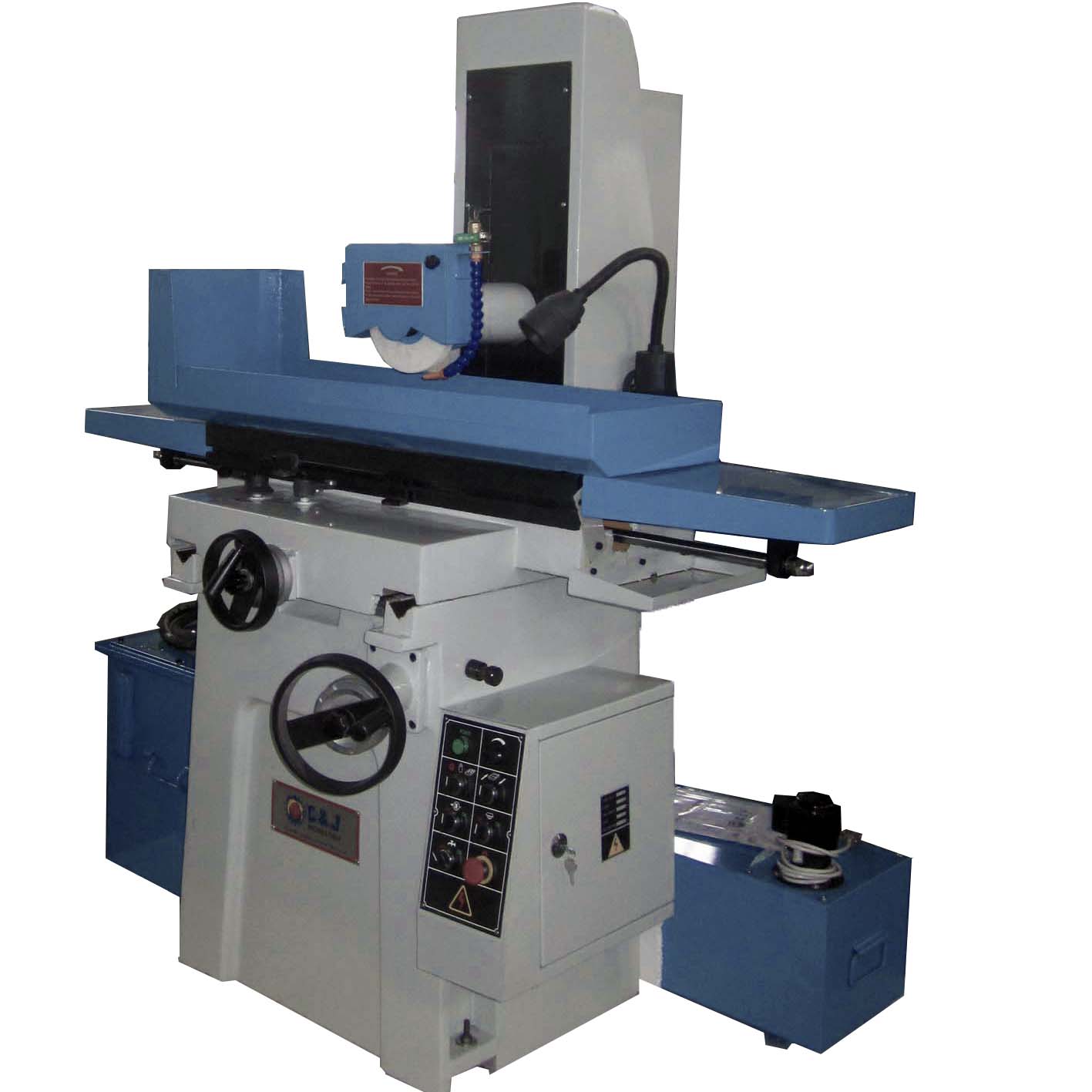

MY820 Hydraluic surface grinding machine
Standard features:
* High rigidity H-frame column with spindle center to table for extra clearance under the wheel.
* Enhanced ribbed full cast iron base provides the best anti-vibration foundation with greater stability and rigidity
*Enlarged spindle housing for heavier grinding
* V3 grade spindle motor for powerful output to achieve prescicion work standards and better grinding capability.
* Cartridge spindle w/4 preloaded class 7 (P4) bearing and run our of taper nose better than 0.00060 T.I.R.provides quiet,vibration free operation for better workpiece accuracy.
* MY820: X –axis auto hydraulic transmission,Y – axis manual transmission,Z – axis manual transmission.
* Flat+V type linear table ways for easy and smooth longitudinal movements and double V shape saddle ways for rigidity
* Manual lubrication system provides lubrication to all necessary mechanism saddle&column ways,bearings and lead screws for better machine performance and less maintenance.

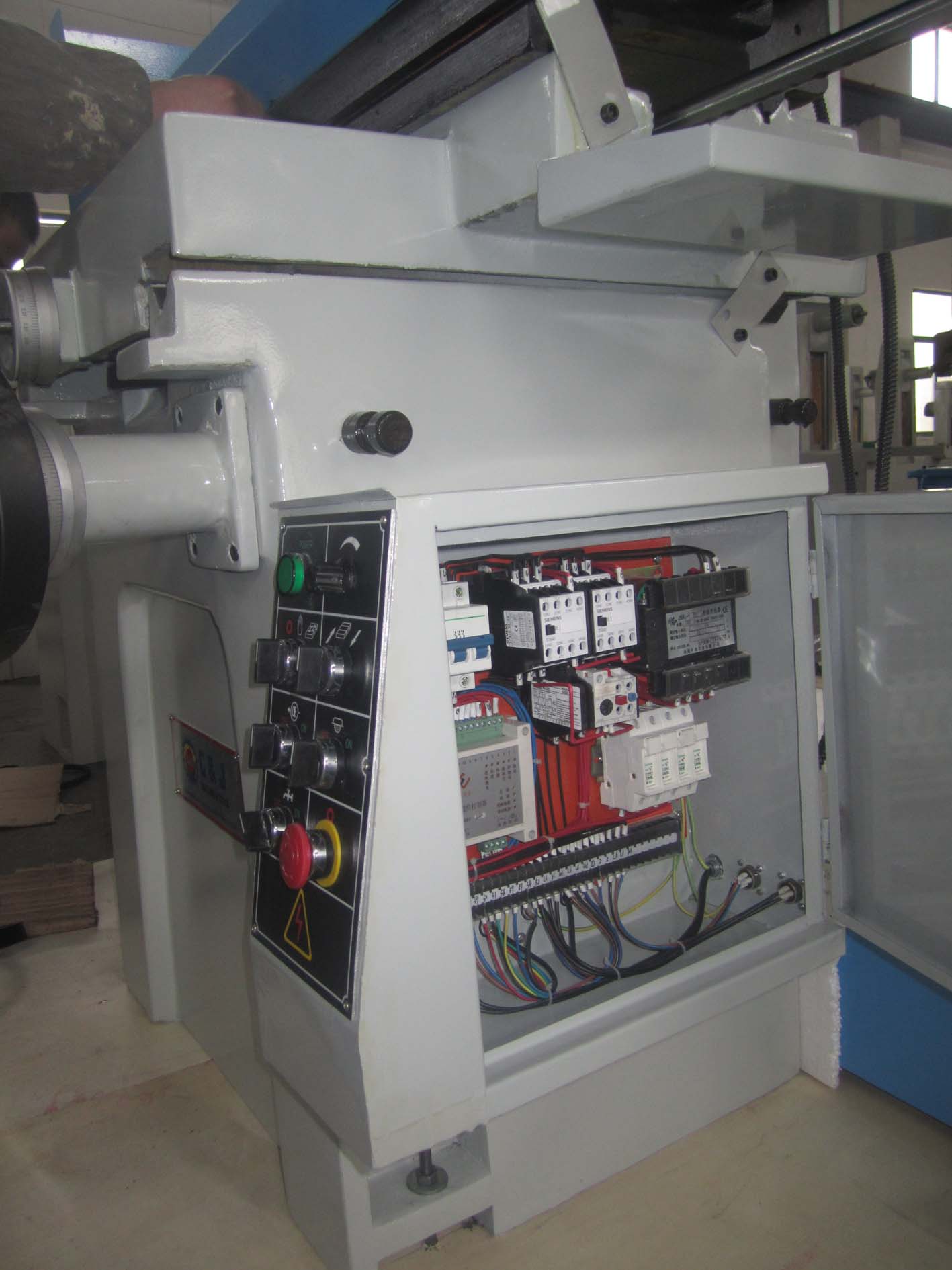

* Convenient control panel including all buttons and switches.
*Digital readout system – two axis (Z& Y axis) digital readout
The min.digital readout amount:0.001-0.005mm
Technical Parameters
|
Main specifications
|
Unit
|
MY820
|
MY618
|
|
Max.workpiece
to be Ground ( L×W×H)
|
mm
|
500×220×320
|
480×180×250
|
|
Max.
Grinding Length
|
mm
|
520
|
500
|
|
Max.
Grinding Width
|
mm
|
220
|
190
|
|
Distance
From Table Surface To Spindle Center
|
mm
|
490
|
335
|
|
Slide way
|
|
V-type rail
with Plane
|
V-type rail
with Plane
|
|
V-type rail
with Steel-ball
|
Kg
|
200
|
200
|
|
Table Size
(L×W)
|
mm
|
480×220
|
460×180
|
|
Number of T
-Slot
|
mm×n
|
12×1
|
12×1
|
|
Speed OF
Working Table
|
m/min
|
3-23
|
3-23
|
|
Cross Feed
On Handwheel
|
mm
|
0.02/div.2.5/rev.
|
0.02/div.
2.5/rev.
|
|
Vertical
Feed On Handwheel
|
mm
|
0.01/div.
1.25/rev.
|
0.01/div.
1.25/rev.
|
|
Wheel Size
(dia.×width×bore )
|
mm
|
200×16×31.75
|
200×16×31.75
|
|
Spindle
Speeds
|
50Hz
|
rpm
|
2850
|
2850
|
|
Spindle
Motor
|
Kw
|
1.1
|
1.1
|
|
Hydraulic
station motor
|
Kw
|
1.5
|
1.5
|
|
Working
Pressure
|
Mpa
|
3
|
3
|
|
Max.Capacity
|
L/min
|
18
|
18
|
|
Minimum Of
Numerical
|
L
|
80
|
80
|
|
Coolant Pump
|
Kw
|
0.04
|
0.04
|
|
Minimum of
Numerical Display
|
mm
|
0.001
|
0.001
|
|
Machine Size
(L×W×H)
|
mm
|
1680×1140×1800
|
1550×1150×1590
|
|
Packing Size
(L×W×H)
|
mm
|
1140×1630×1960
|
1000×1140×1760
|
|
Gross
Net weight
|
T
|
O.85 0.75
|
0.80 0.70
|
|
|
|
|
|
|
Standard Appendix:
(1) tool box (2) balancing stand and bar (3) handwheel nut (4)flange wrench
(5) screwdriver (6)Balancing screw (7)open-end wrench (8)inner hexagon spanner
(9) wheel dresser holder (10) machine stand pad (11) wheel flange
(12) diamond wheel dresser (diamond pen) (13) permanent chuck
Optional accessories:
(1) tiltable permanent chuck or electro magnetic chuck (2) demagnetizer (3) angle dresser
(4) radius dresser (5) precision vice (6) 2- axis digital readout system
(7) working light (8)wheel flange
