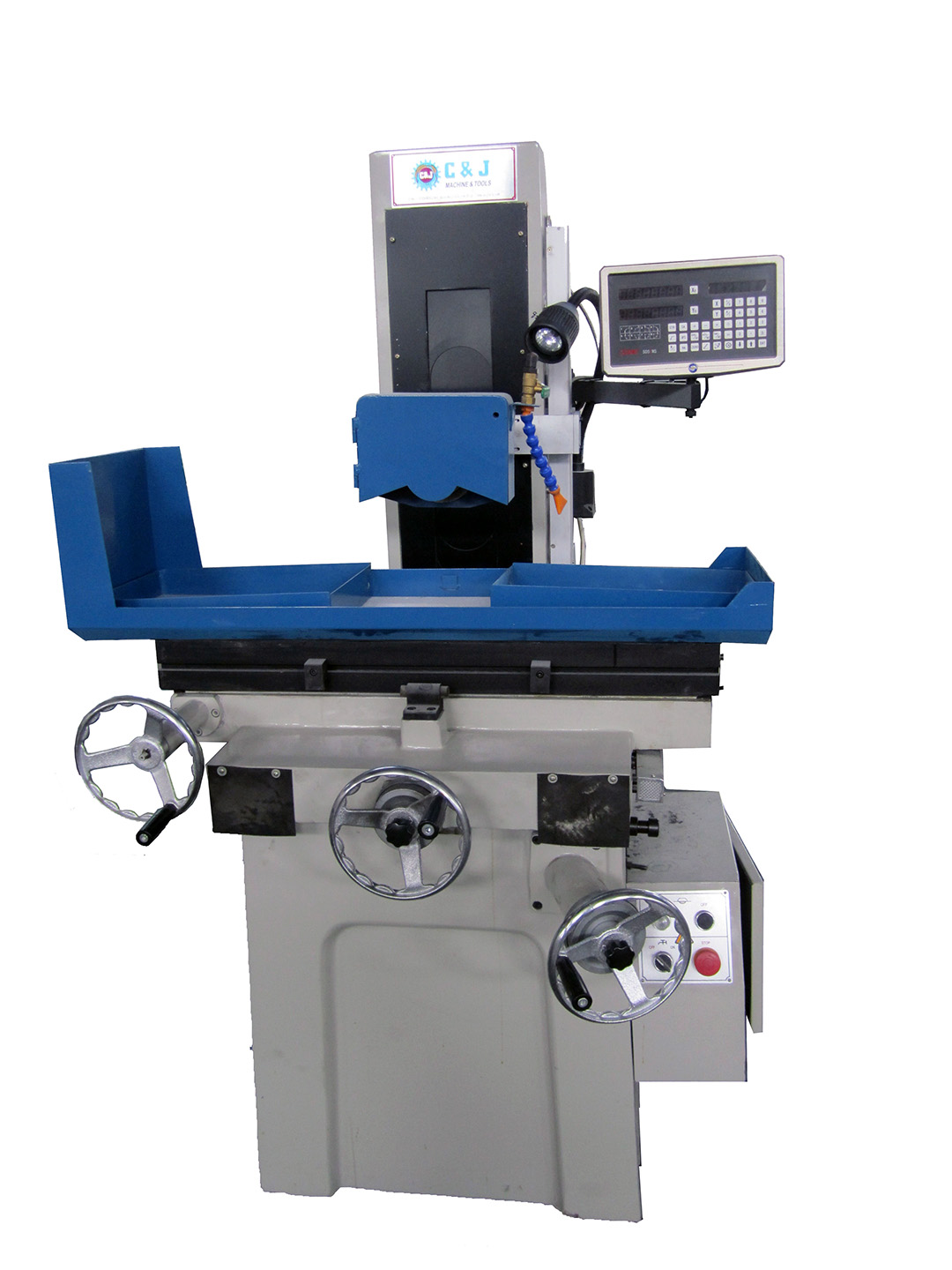

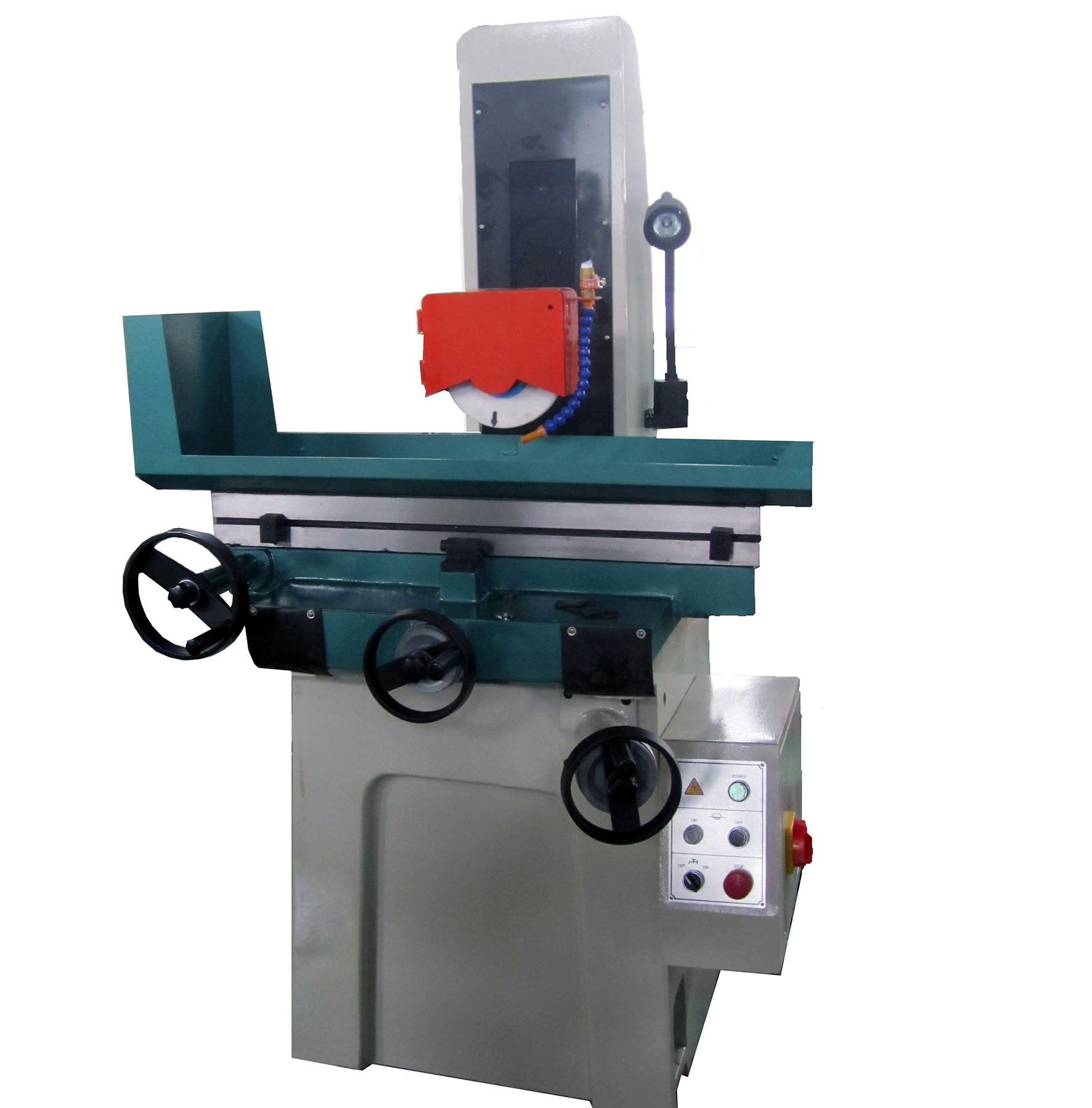

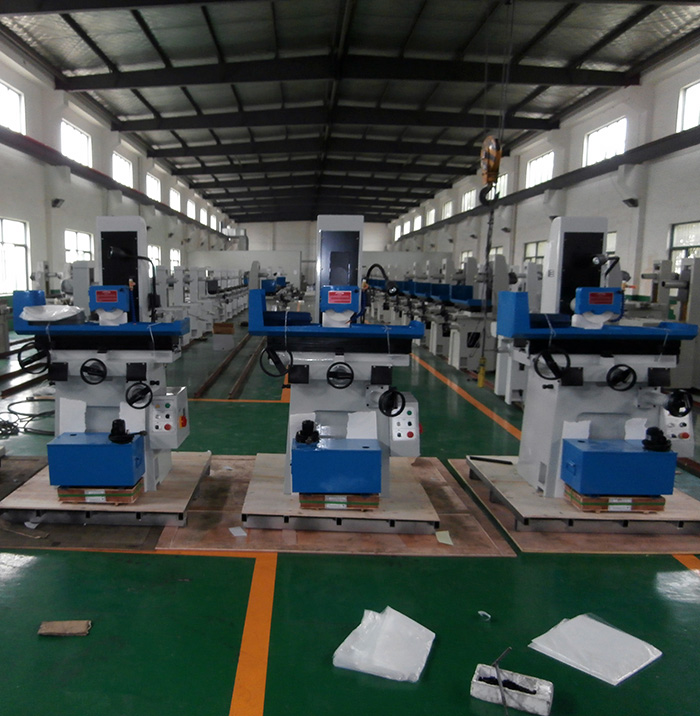

M820A Manual surface grinding machine
Main Features:
* 3 – axis manual operation
* High rigidity H-frame column with spindle center to table for extra clearance under the wheel.
* Enhanced ribbed full cast iron base provides the best anti-vibration foundation with greater stability and rigidity
*Enlarged spindle housing for heavier grinding
* V3 grade spindle motor for powerful output to achieve prescicion work standards and better grinding capability
* Cartridge spindle w/4 preloaded class 7 (P4) bearing and run our of taper nose better than 0.00060 T.I.R.provides quiet,vibration free operation for better workpiece accuracy.
* M618: roller steel balls on linear table ways for easy and smooth longitudinal movements and “V+Flat” shape saddle ways for rigidity.
* Mid-level downfeed handwheel placement for convenient and easy positioning for Z-axis
* Manual lubrication system provides lubrication to all necessary mechanism saddle&column ways,bearings and lead screws for better machine performance and less maintenance.
* Convenient control panel including all buttons and switches.
*Digital readout system – two axis (Z& Y axis) digital readout
The min.digital readout amount:0.001-0.005mm
Technical Parameters
|
Main specifications
|
Units
|
M820
|
|
Max.workpiece to be Ground( L×W×H)
|
mm
|
500×200×320
|
|
Max. Grinding Length
|
mm
|
530
|
|
Max. Grinding Width
|
mm
|
220
|
|
Distance From Table Surface To Spindle
Center
|
mm
|
490
|
|
Slide way
|
|
V-type rail with Steel-ball
|
|
V-type rail with Steel-ball
|
Kg
|
100
|
|
Table Size (L×W)
|
mm
|
480×200
|
|
Number of T -Slot
|
mm×n
|
12×1
|
|
Cross Feed On Handwheel
|
mm
|
0.02/Graduation 2.5/revolution
|
|
Vertical Feed On Handwheel
|
mm
|
0.01/Graduation 1.25/revolution
|
|
Wheel Size (dia.×width×bore )
|
mm
|
200×16×32
|
|
Spindle Speeds
|
50Hz
|
rpm
|
2850
|
|
Spindle Motor
|
Kw
|
1.1
|
|
Coolant Pump
|
Kw
|
0.4
|
|
Minimum of Numerical Display
|
mm
|
0.001
|
|
Machine Size (L×W×H)
|
mm
|
1680×1140×1800
|
|
Packing Size (L×W×H)
|
mm
|
1140×1630×1960
|
|
Gross Net
|
T
|
O.85 0.75
|
Standard Appendix:
(1) tool box (2) balancing stand and bar (3) handwheel nut (4)flange wrench
(5) screwdriver (6)Balancing screw (7)open-end wrench (8)inner hexagon spanner
(9) wheel dresser holder (10) machine stand pad (11) wheel flange
(12) diamond wheel dresser (diamond pen) (13) permanent chuck
Optional accessories:
(1) tiltable permanent chuck or electro magnetic chuck (2) demagnetizer (3) angle dresser
(4) radius dresser (5) precision vice (6) 2- axis digital readout system
(7) working light (8)wheel flange
