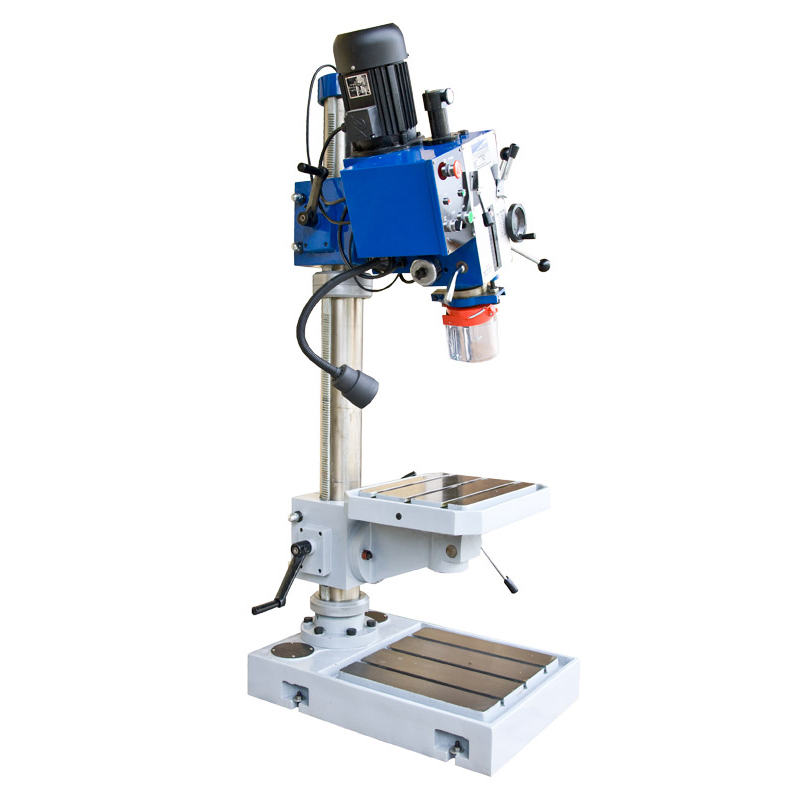

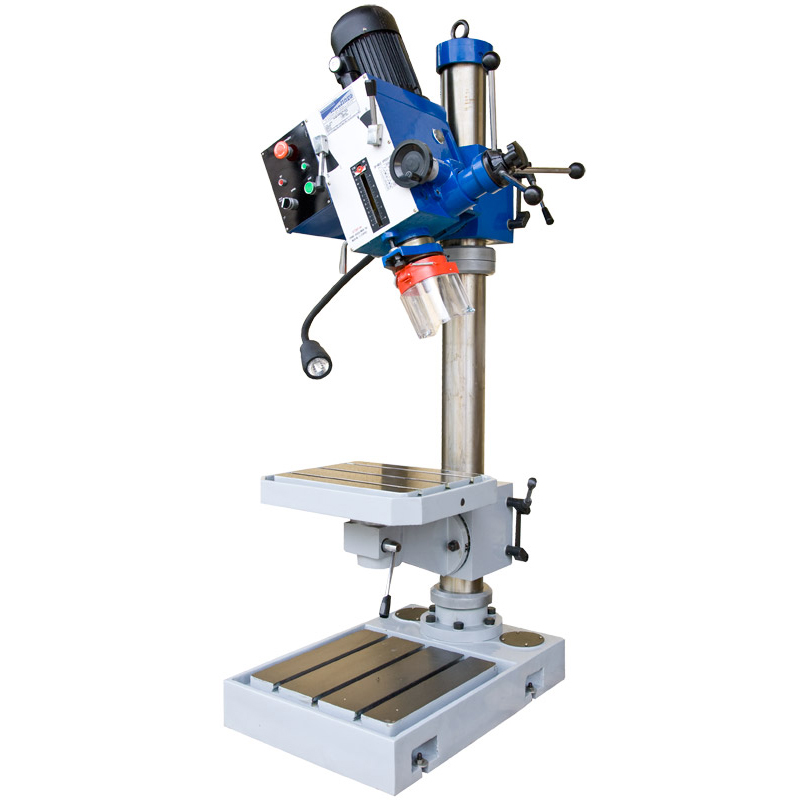

Z5045 Gear head drilling machine
Features：
Drilling, milling and tapping
Head swivels 360 degree horizontally
Headstock and Worktable up & down perpendicularly
Super high column
Precision micro feed
Positive spindle lock
Distinct auto device for releasing tools, operate easily
Geared drive, lower noise
Technical
specifications:
|
Specification
|
Unit
|
Z5032
|
Z5040
|
Z5045
|
|
Max.drilling capacity
|
mm
|
32
|
40
|
45
|
|
Spindle taper
|
|
M.T.3 or R8
|
M.T.4
|
M.T.4
|
|
Spindle travel
|
mm
|
130
|
130
|
130
|
|
Step of spindle speed
|
|
6
|
6
|
6
|
|
Range of spindle speed 50Hz
|
r.p.m
|
80-1250
|
80-1250
|
80-1250
|
|
Range of spindle speed 60Hz
|
r.p.m
|
95-1500
|
95-1500
|
95-1500
|
|
Min.distance from spindle axis to
column
|
mm
|
283
|
283
|
283
|
|
Max.distance from spindle nose to
worktable
|
mm
|
725
|
725
|
725
|
|
Max.distance from spindle nose to
stand table
|
mm
|
1125
|
1125
|
1125
|
|
Max.travel of headstock
|
mm
|
250
|
250
|
250
|
|
Swivel angle of
headstock(horizontal/perpendicular)
|
|
360°/±90°
|
360°/±90°
|
360°/±90°
|
|
Max.travel of worktable bracket
|
mm
|
600
|
600
|
600
|
|
Worktable size of avaliablity
|
mm
|
380×300
|
380×300
|
380×300
|
|
Swivel angle of table horizontally
|
|
360°
|
360°
|
360°
|
|
Table leaned
|
|
±45°
|
±45°
|
±45°
|
|
Size of stand worktable of
avaliability
|
mm
|
417×416
|
417×416
|
417×416
|
|
Motor Power
|
kw
|
0.75(1HP)
|
1.1(1.5HP)
|
1.5(2HP)
|
|
Voltage/Frequency
|
|
As request
|
As request
|
As request
|
|
speed of motor
|
r.p.m
|
1400
|
1400
|
1400
|
|
Net weight/Gross weight
|
kg
|
430/480
|
432/482
|
435/485
|
|
Packing size
|
mm
|
1850×750×1000
|
1850×750×1000
|
1850×750×1000
|
