ZS-40HS Gear head drilling machine
Product description:
The machine adopt gear driving and the driving movement is strong
The machine has the six series speed variable feature ,which can be widely fit for processing to kinds of common hard and soft material

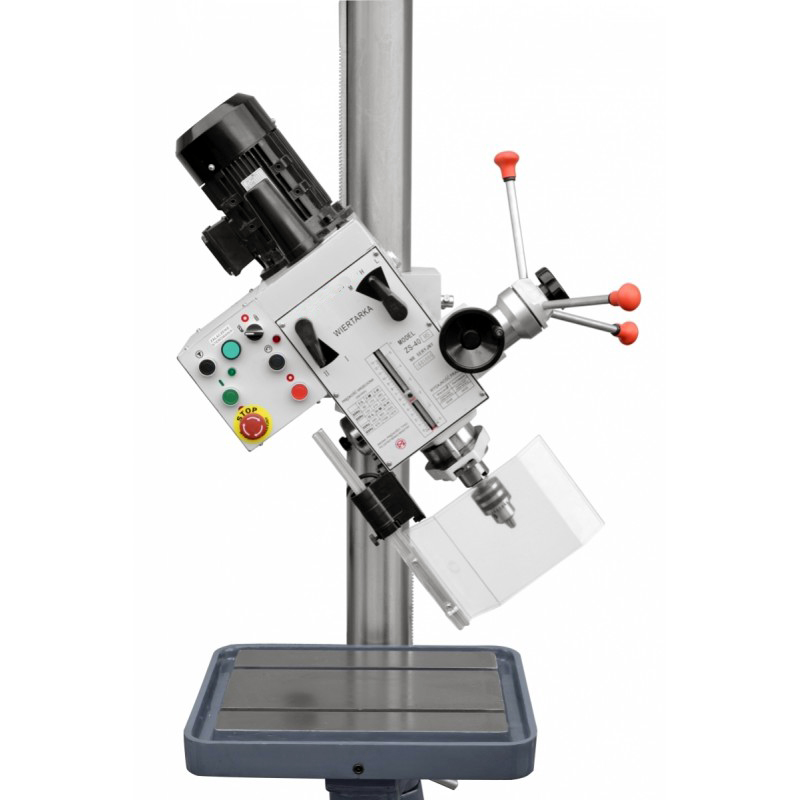

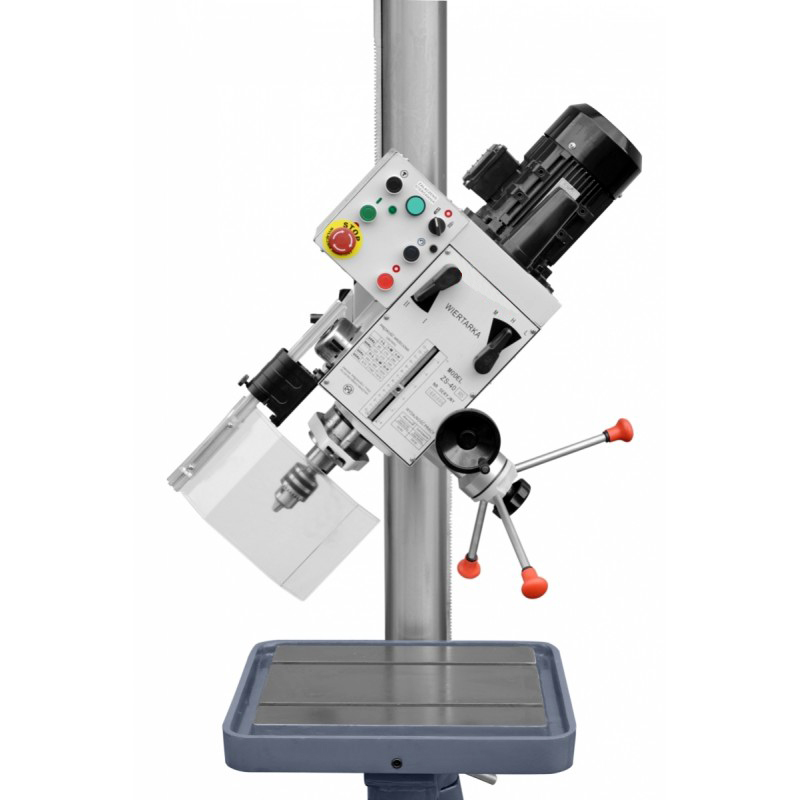

The head can rotated 360 degree and can tilted +/-45 degree it reliable and easy job can be done
The motor drive by gear ,which overcome the short coming of the belt skid
According to the customer demand the machine can drill ,enlarge,ream and tap the multi-holes by the multi-spindles .
Technical
specifications:
|
Model
|
ZS-40HS
|
|
Max. Drilling capacity(mm)
|
Cast iron 40 steel32
|
|
Max.tapping capacity(mm)
|
Cast iron M32 steel M24
|
|
Diameter of column(mm)
|
115
|
|
Spindle travel(mm)
|
120
|
|
Distance spindle axis to generating line
(mm)
|
272.5
|
|
Max. Distance spindle nose to table(mm)
|
745
|
|
Max. Distance spindle nose to base(mm)
|
1200
|
|
Spindle taper(mm)
|
MT4
|
|

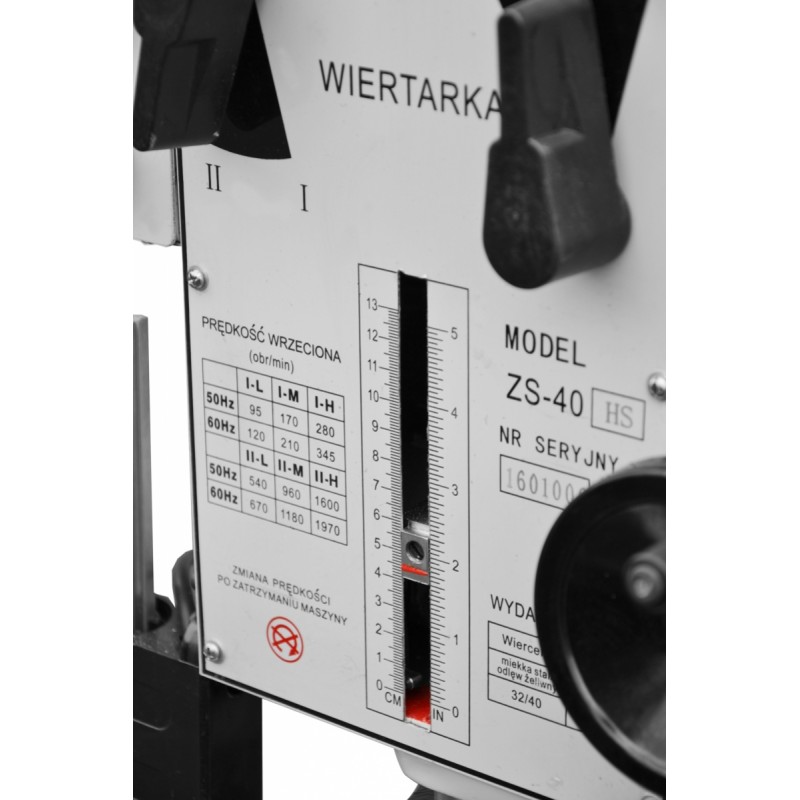

Spindle speeds range(r/min)
|
95/170/280/540/960/1600
|
|
Spindle speeds series(r/min)
|
6
|
|

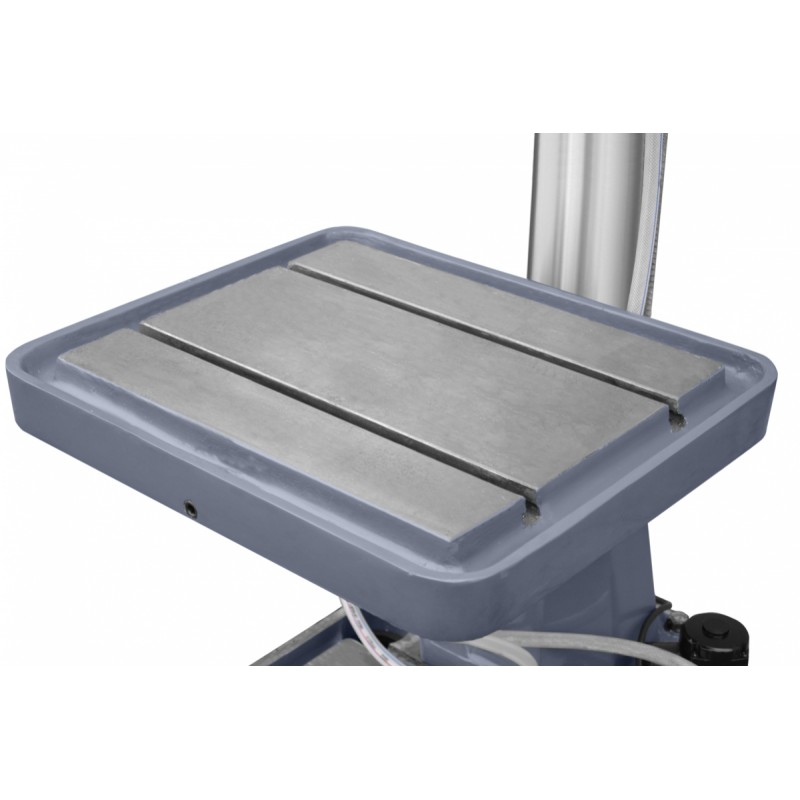

Dimension of worktable surface(mm)
|
540x470
|
|
Table travel(mm)
|
515
|
|
Dimension of base(mm)
|
635x460
|
|
Overall height(mm)
|
1760
|
|
Motor(W)
|
Single phase 750 Three phase 1100
|
|
G.W/N.W(kg)
|
350/310
|
|
Packing size(cm)
|
72x74x186/72x74x191
|
