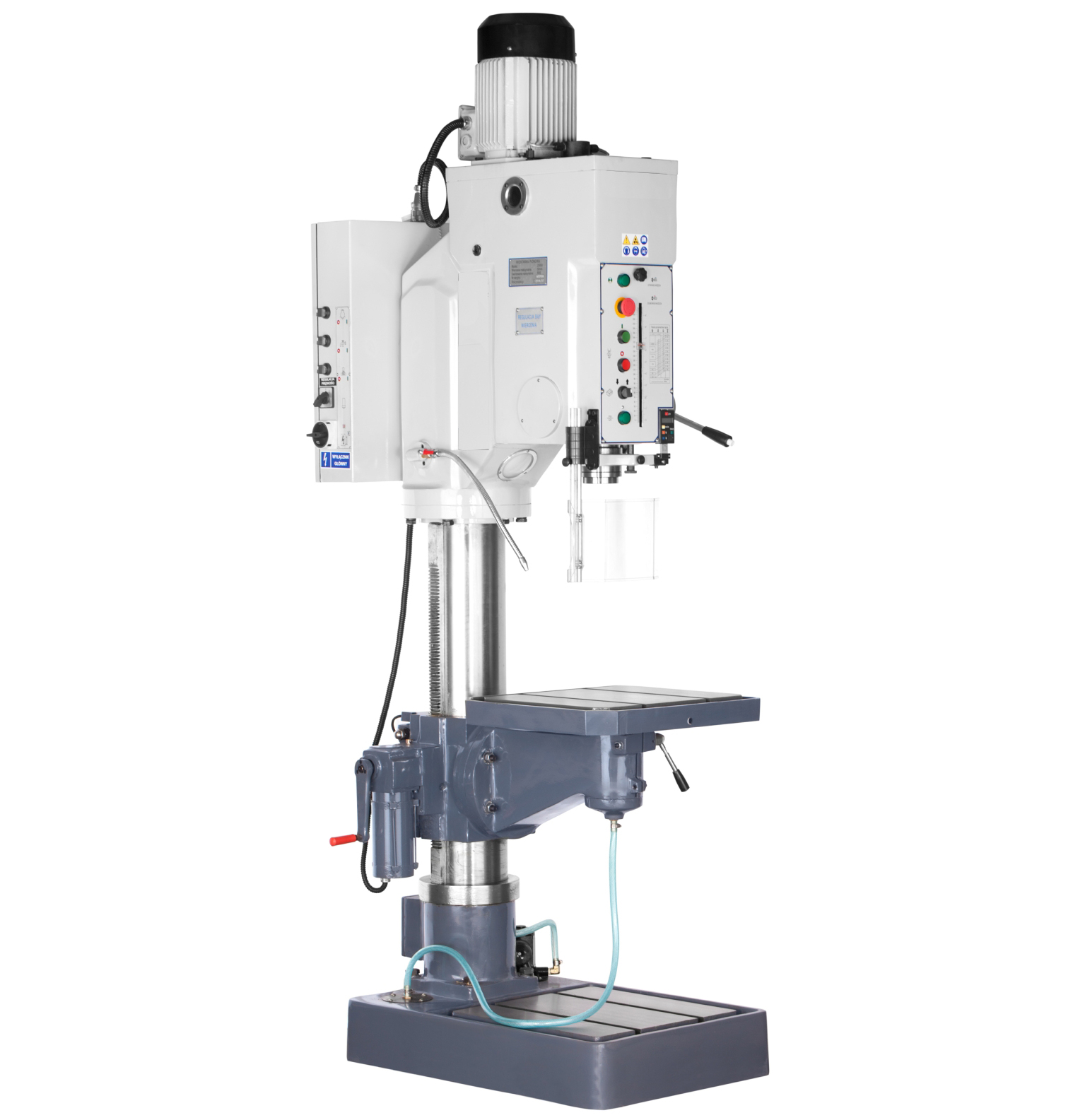

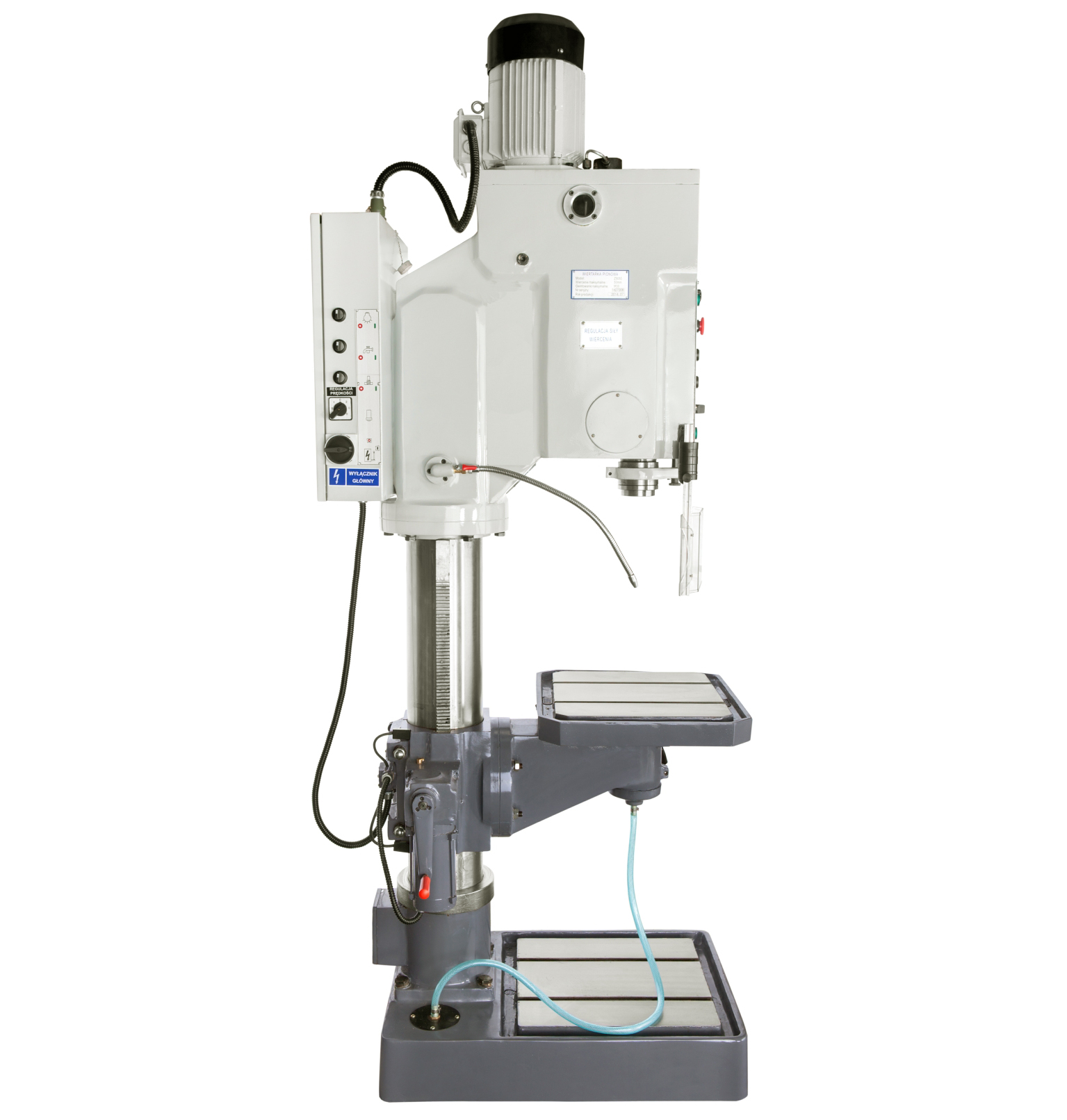

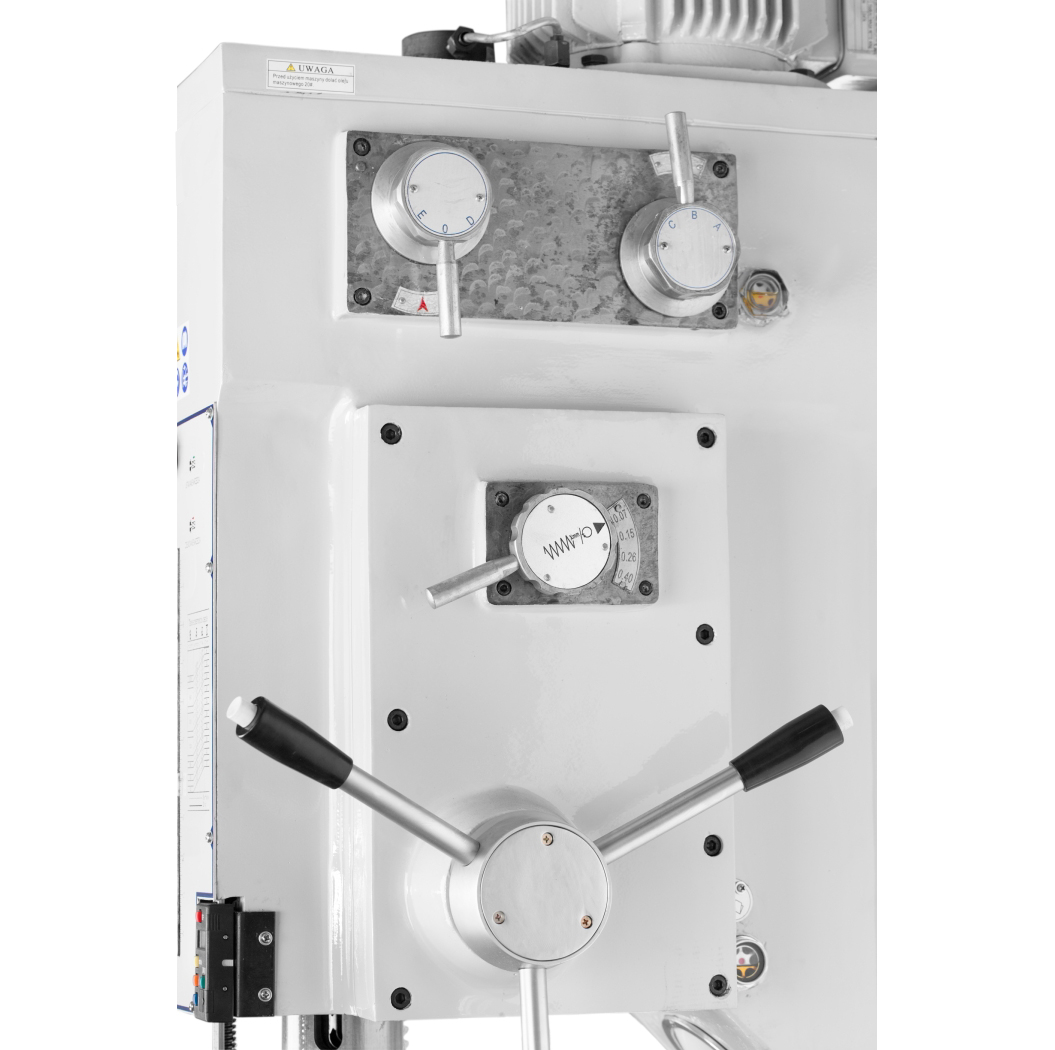

Z5030A Z5035A Z5040A Z5050A Gear head drilling machine
● New-designed, pleasing appearance,
compact construction, wide speed change range, easy tooperate.
● Easy operation with its unique worktable,
and bothmotor-drive and manual-operated lifting device.
● The working table can be rotated 180° and
can be tited ±45° also, it is reliable and easy job can be done.
● Equipped with coolant system and tapping
mechanism.
● Equipped with shortcut and overload
protection, its electricasy stem with powerful spindlem-otor, it designed
according to IEC standard
● Characteristic protection device is safe
and reliable.
● Ideal choice for single price, small
batch and mass production for drilling, counter boring , reaming, tapping, spot
facing, etc.
|
Model
|
Z5030A
|
Z5035A
|
Z5040A
|
Z5050A
|
|
Max.drilling capacity(mm)
|
30
|
35
|
40)
|
50
|
|
Max.thread-cutting(mm)
|
M18
|
M20
|
M24
|
M24
|
|
Quill stroke(mm)
|
135
|
150
|
180
|
180
|
|
Distance from spindle to column(mm)
|
315
|
330
|
360
|
360
|
|
Distance from spindle to table(mm)
|
1080
|
1150
|
1215
|
1205
|
|
Max adjustment of worktable and table
rest MM
|
480
|
540
|
560
|
525
|
|
Swivel of table and table rest
(mm)
|
±45°
|
±45°
|
±45°
|
±45°
|
|
Spindle bore taper(morse)
|
NO.3
|
NO.4
|
NO.4
|
NO.4
|
|
Spindle speed steps (r.p.m)
|
70~2600
12
|
72~2600
12
|
42~2050
12
|
42~1865
12
|
|
Spindle feed steps
Range (mm/r)
|
|
3
0.1, 0.2, 0.3
|
4
0.07,0.15,0.26,0.4
|
4
0.07,0.15,0.26,0.4
|
|
Effective working area of table LxW
|
374x374
|
424x424
|
370x500
|
370x500
|
|
Effective working area of base plate
|
370x360
|
420x380
|
460x450
|
460x450
|
|
T-slot of work table and base plate
mm
|
2-14
2-16
|
2-14
2-16
|
2-14
2-16
|
2-14
2-16
|
|
Column dia(mm)
|
Ø125
|
Ø140
|
Ø160
|
Ø170
|
|
Double speed AC Motor power(kW)
Speed
|
1.1/1.5
960/1450
|
1.5/2.2
960/1450
|
2.2/2.8
960/1450
|
2.2/2.8
960/1450
|
