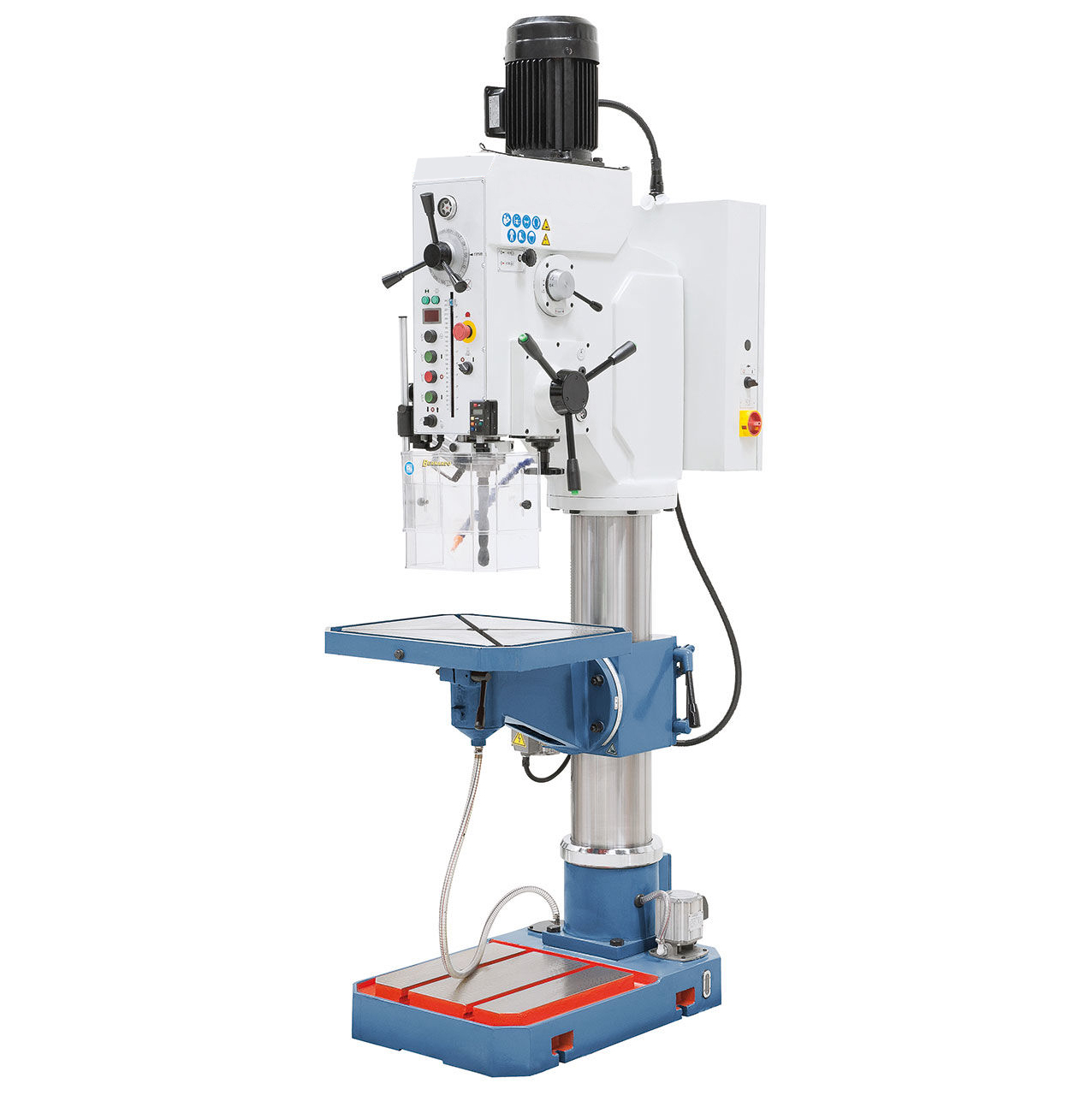

ZB5050 Gear head drilling machine
Motorized table stroke reduces non-production times
Thread cutting device and automatic tool release device as
standard
Solid, vibration-free construction ensures accurate results
Solid, polished steel column suitable for heavy workload

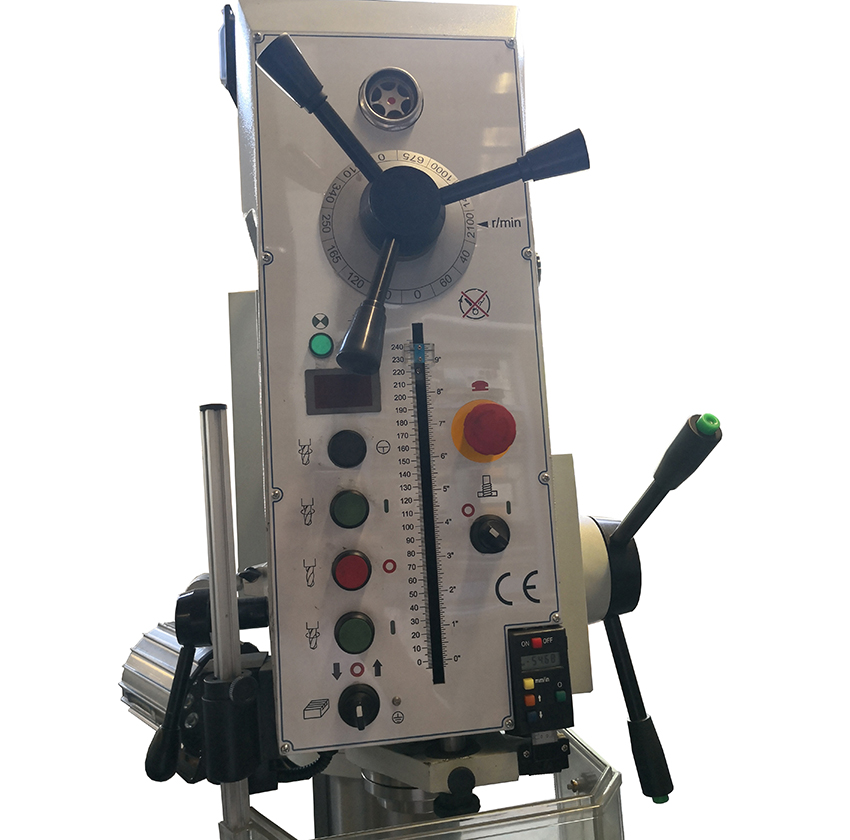

Digital displays for speed and drill depth
Solid grey cast iron table with tilt- and rotatable support
Wide range of standard equipment increases efficiency
Hardened and polished gear wheels ensure smooth running
4 automatic spindle feeds
via electromagnetic clutch
Technische Spezifikationen
|
Drilling capacity in steel
|
50 mm
|
|
Drilling capacity in cast iron
|
60 mm
|
|
Thread cutting max.
|
M42
|
|
Drill chuck
|
1 - 13 mm / B 16
|
|
Morse taper
|
MT 4
|
|
Spindle speeds / Steps
|
40 - 2100 rpm / 12
|
|
Feed range
|
0,1 / 0,2 / 0,3 / 0,4 mm/rev.
|
|
Distance spindle to column
|
370 mm
|
|
Distance spindle to table max.
|
600 mm
|
|
Distance spindle to base
|
1190 mm
|
|
Spindle stroke
|
250 mm
|
|
Column diameter
|
200 mm
|
|
Table size / T-slot size
|
600 x 500 mm / 14 mm
|
|
Motor power
|
2,2 / 2,8 kW
|
|
Machine dimension (W x D x H)
|
700 x 1050 x 2350 mm
|
|
Weight approx.
|
670 kg
|
