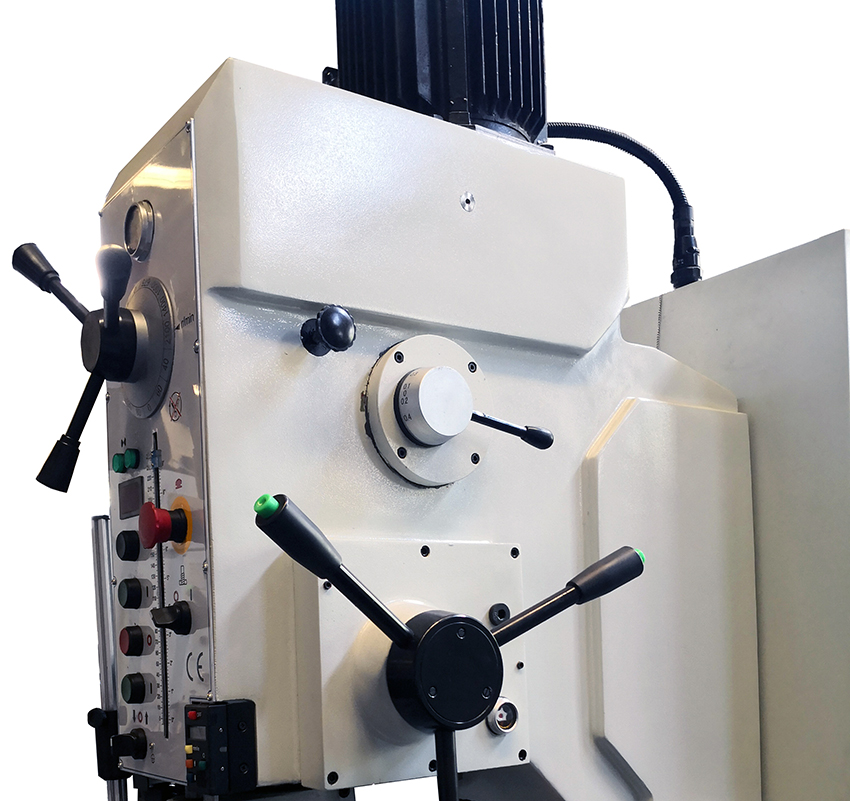

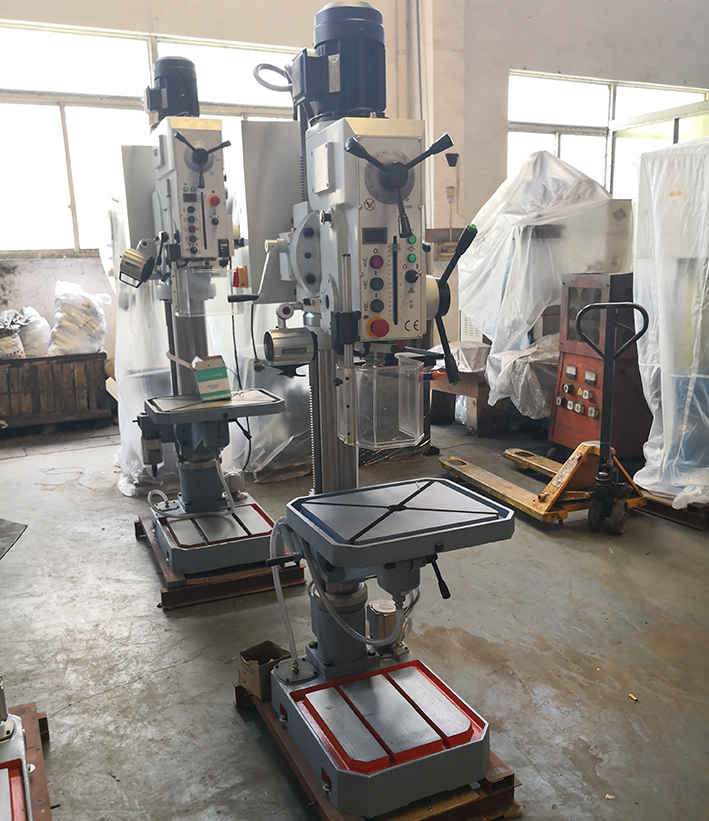

ZB5040 Gear head drilling machine
Includes motorized table stroke and digital displays for
drill depth and speed
Hand-polished, grey cast-iron table, tiltable from -45°
to +45°
T-slots in base allow mounting of oversized workpieces
Automatic tool release device allows quick change of
drilling tools
Electromechanic feed, adjustable from 0,1 to 0,4 mm/rev.
Gear shift located on front of machine allows quick speed
change
Adjustable drill depth stop includes scale for easy
readout
Protective cover with limit switch for increased security
Technische Spezifikationen
|
Drilling capacity in steel
|
40 mm
|
|
Drilling capacity in cast iron
|
45 mm
|
|
Thread cutting max.
|
M32
|
|
Drill chuck
|
1 - 13 mm / B 16
|
|
Morse taper
|
MT 4
|
|
Spindle speeds / Steps
|
55 - 2120 rpm / 12
|
|
Feed range
|
0,1 / 0,2 / 0,3 / 0,4 mm/rev.
|
|
Distance spindle to column
|
355 mm
|
|
Distance spindle to table max.
|
580 mm
|
|
Distance spindle to base
|
1185 mm
|
|
Spindle stroke
|
200 mm
|
|
Column diameter
|
180 mm
|
|
Table size / T-slot size
|
580 x 460 mm / 14 mm
|
|
Motor power
|
2,2 kW
|
|
Machine dimension (W x D x H)
|
700 x 950 x 2280 mm
|
|
Weight approx.
|
563 kg
|
