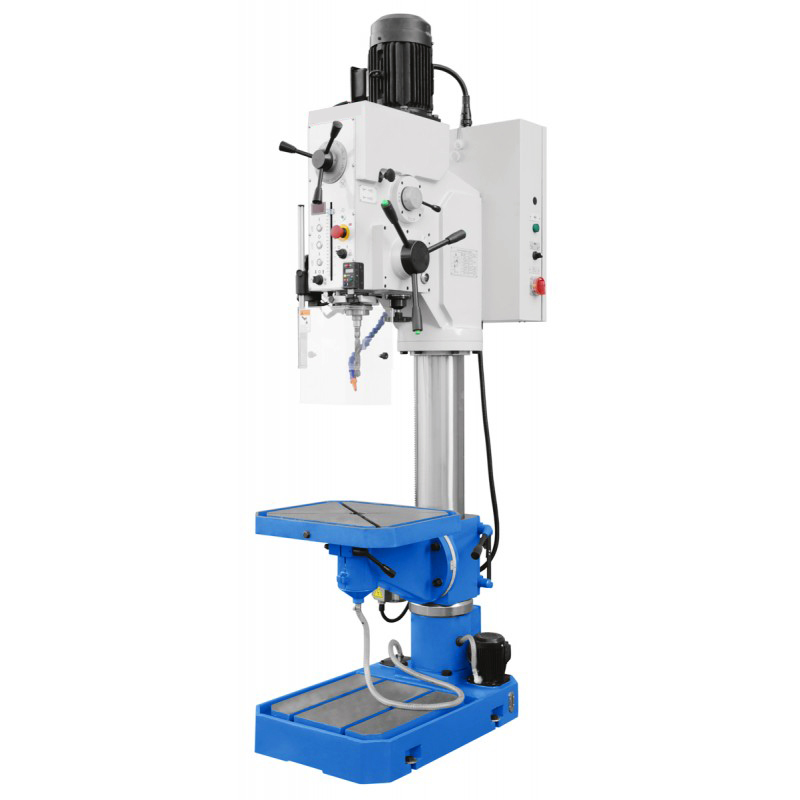

ZB5035 Gear head drilling machine
Serially equipped with motorized table
height adjustment
Automatic tool release device and thread
cutting device come standard

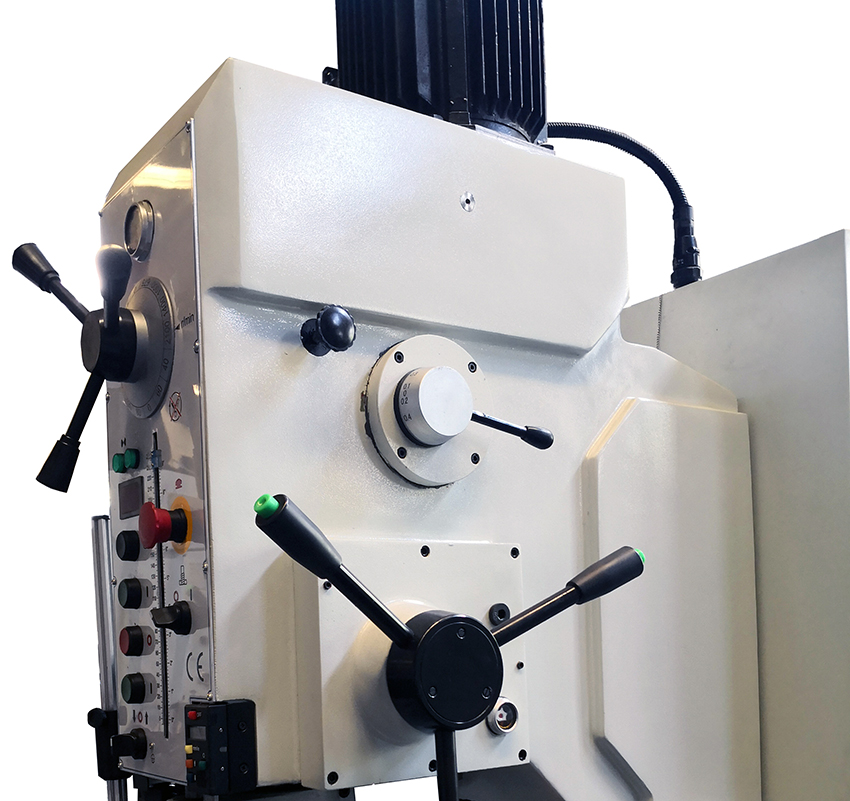

Lever on gear head allows quick and easy
speed change
Digital readout of speed and drill depth
come standard
Treated machine base (430 x 440 mm) with
integrated coolant pump
Electromagnetic spindle feed for precise
work
Quality bearings guarantees high
concentricity
Solid, hand-polished, grey cast iron table with
tilt- and turnable support
Technische Spezifikationen
|
Drilling capacity in steel
|
35 mm
|
|
Drilling capacity in cast iron
|
40 mm
|
|
Thread cutting max.
|
M24
|
|
Drill chuck
|
1 - 13 mm / B 16
|
|
Morse taper
|
MT 4
|
|
Spindle speeds
|
(12) 43 - 2355 rpm
|
|
Feed range
|
0,1 / 0,2 / 0,3 / 0,4 mm/rev.
|
|
Distance spindle to column
|
340 mm
|
|
Distance spindle to table max.
|
580 mm
|
|
Distance spindle to base
|
1185 mm
|
|
Spindle stroke
|
200 mm
|
|
Column diameter
|
160 mm
|
|
Table size / T-slot size
|
540 x 440 mm / 14 mm
|
|
Working surface of base
|
430 x 440 mm
|
|
Motor power
|
1,3 / 1,8 kW
|
|
Machine dimension (W x D x H)
|
660 x 900 x 2240 mm
|
|
Weight approx.
|
553 kg
|
