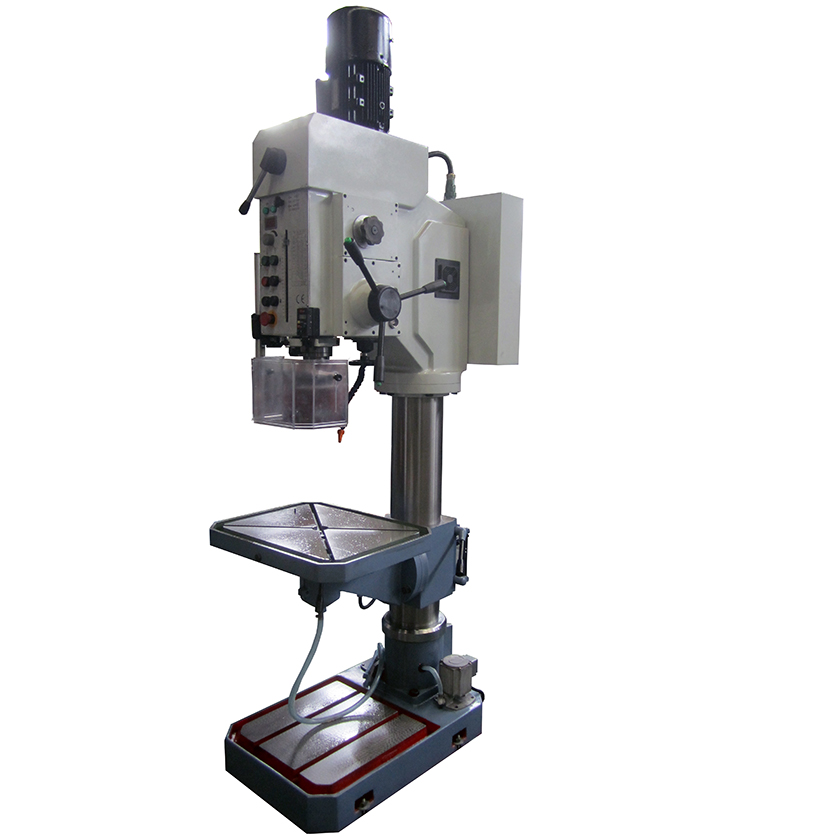

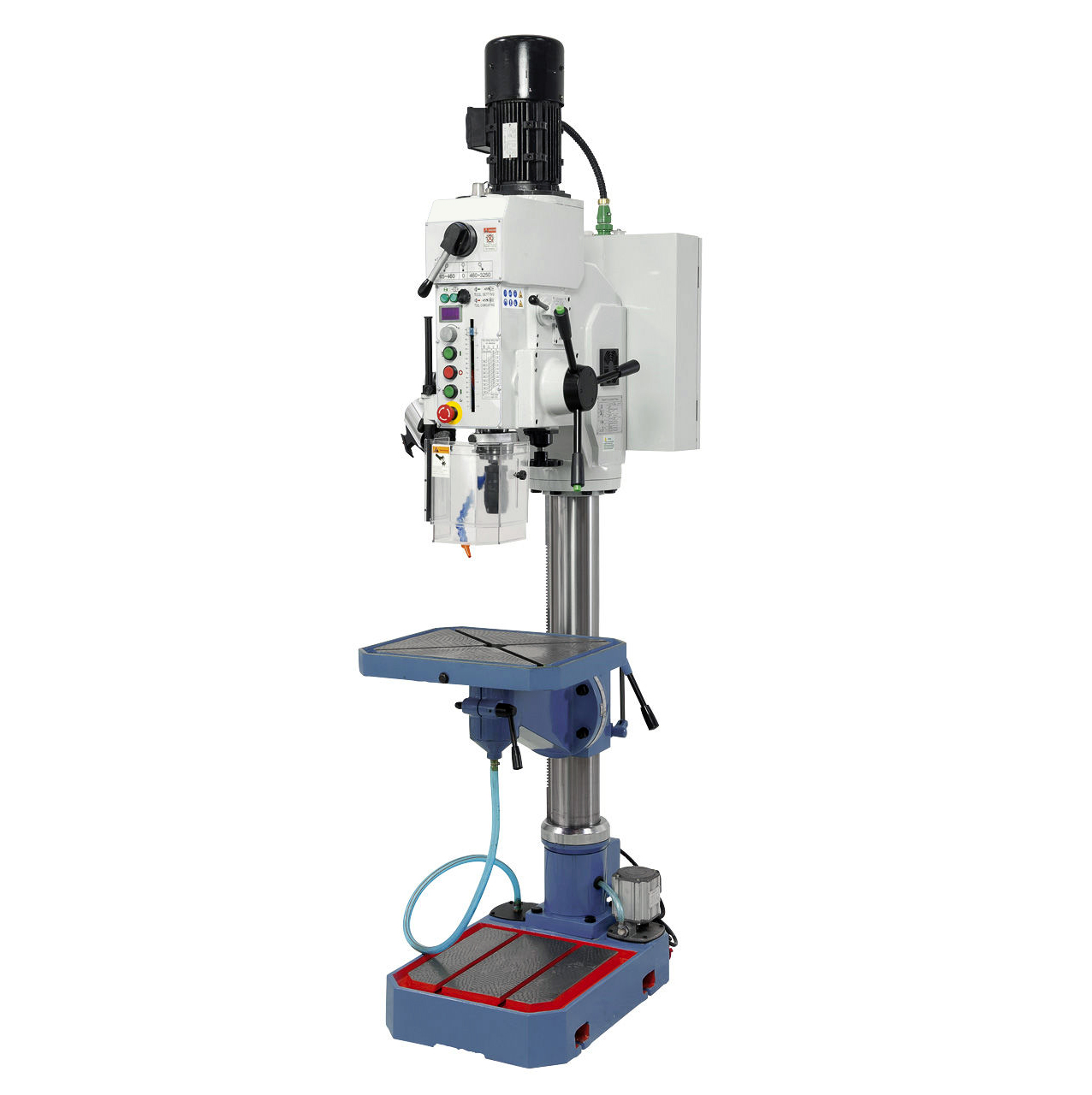

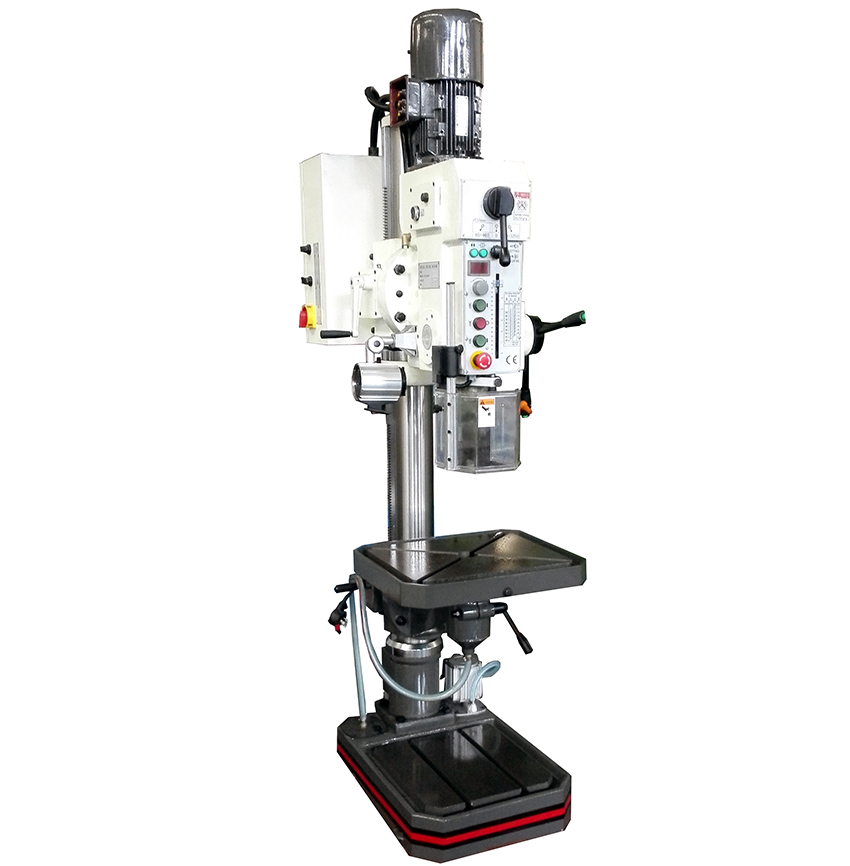

ZWB Series Vario Drilling Machine Vario Drilling Machine
Feature:
1. Single-speed motor, Germany original Lenze transducer spindle stepless timing
2.Digital readout for the display of speed and cutting depth
3.Electromagnetism clutch transmission feed
4.Coolant system and spindle cover
5. Strength spindle,large diameter column
6.Motor driven or manual lifting of worktable
7.All main parts made with high quality cast iron
8.3PH with two voltage for 220V-575V collocation
9. Trochoid lubrication pump
10. Micro feed is available
11. Worktable could be rotated and could be inclined 45 degree to lest and right
12. Main electrical components with CE,CSA and UL standard
Specification:
|
Model/Items
|
ZWB5030A
|
ZWB5035A
|
ZWB5040A
|
ZWB5050A
|
|
Max. Drilling dia.(steel) and tapping
dia.(mm)
|
φ30/M20
|
φ35/M22
|
φ40/M24
|
φ50/M30
|
|
Max. milling cutter diameter (mm)
|
N/A
|
80
|
80
|
80
|
|
Max.Travel of spindle(mm)
|
125
|
155
|
190
|
200
|
|
Max.Distance from spindle to generating
line of column(mm)
|
280
|
320
|
340
|
360
|
|
Max.Distance from spindle nose to surface
of worktable.(mm)
|
650
|
625
|
665
|
590
|
|
Max.Distance from spindle nose to surface
of base worktable(mm)
|
1120
|
1180
|
1195
|
1175
|
|
Max Travel of worktable and
bracket/Manual(Mechanical)(mm)
|
605
|
560
|
570(450)
|
530(410)
|
|
Swivel angle of worktable
|
±45°
|
±45°
|
±45°
|
±45°
|
|
Spindle taper bore
|
MT3
|
MT4
|
MT4
|
MT4
|
|
Spindle speed steps
|
stepless
|
stepless
|
stepless
|
stepless
|
|
Spindle speed range(r/min)
|
70~249,249~3500
|
65~460,465~3250
|
60~400,396~2600
|
50~316,316~2200
|
|
Spindle feed steps
|
3
|
3
|
4
|
6
|
|
Spindle feed range(mm/r)
|
0.1,0.2,0.3
|
0.1,0.2,0.3
|
0.1,0.2,0.3,0.4
|
0.08~0.50
|
|
Diameter of culumn
|
110
|
120
|
140
|
180
|
|
Dimension of worktable(mm)
|
450×380
|
500×380
|
520×440
|
580×460
|
|
Effective working area of worktable(mm)
|
335×340
|
370×360
|
405×395
|
445×435
|
|
Power of motor(kw)
|
1.1
|
1.5
|
2
|
3
|
|
Machine dimension(mm)
|
785×480×2035
|
849×545×2290
|
849×545×2290
|
950×680×2405
|
|
Packing dimension/Net weight and gross
weight
|
960×590×2150mm
|
870×510×2140mm
|
1000×650×2220mm
|
1150×680×2250mm
|
|
320/400kg
|
550/600kg
|
550/600kg
|
650/705kg
|
Standard accessories:
-Key type drill chuck
-Connecting bar for drill chuck
-Shaft sleeve for taper shank tool
-Wedge for taper shank tool
-double open end spanner
Optional accessoreis:
-Cross worktable
-125mm precision vice
-Germany original Lenze transducer
-Collect and handle of milling cutter
-Rotation worktable
ZWB Series Vario Drilling Machine Vario Drilling Machine
Feature:
1. Single-speed motor, Germany original Lenze transducer spindle stepless timing
2.Digital readout for the display of speed and cutting depth
3.Electromagnetism clutch transmission feed
4.Coolant system and spindle cover
5. Strength spindle,large diameter column
6.Motor driven or manual lifting of worktable
7.All main parts made with high quality cast iron
8.3PH with two voltage for 220V-575V collocation
9. Trochoid lubrication pump
10. Micro feed is available
11. Worktable could be rotated and could be inclined 45 degree to lest and right
12. Main electrical components with CE,CSA and UL standard
Standard accessories:
-Key type drill chuck
-Connecting bar for drill chuck
-Shaft sleeve for taper shank tool
-Wedge for taper shank tool
-double open end spanner
Optional accessoreis:
-Cross worktable
-125mm precision vice
-Germany original Lenze transducer
-Collect and handle of milling cutter
-Rotation worktable
