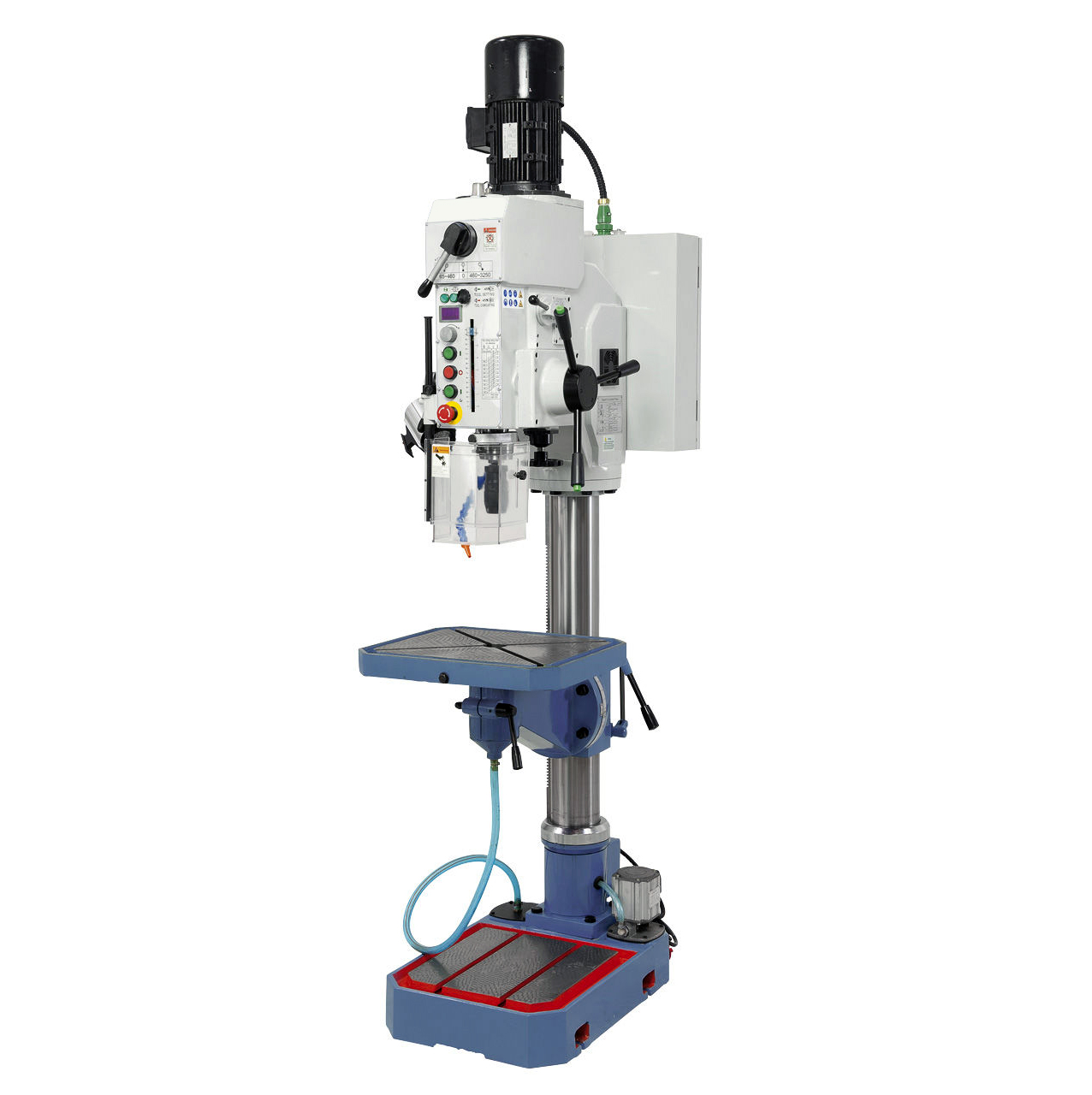

ZWB5035A Vario Drilling Machine
Feature:
1. Single-speed motor, Germany original Lenze transducer spindle stepless timing

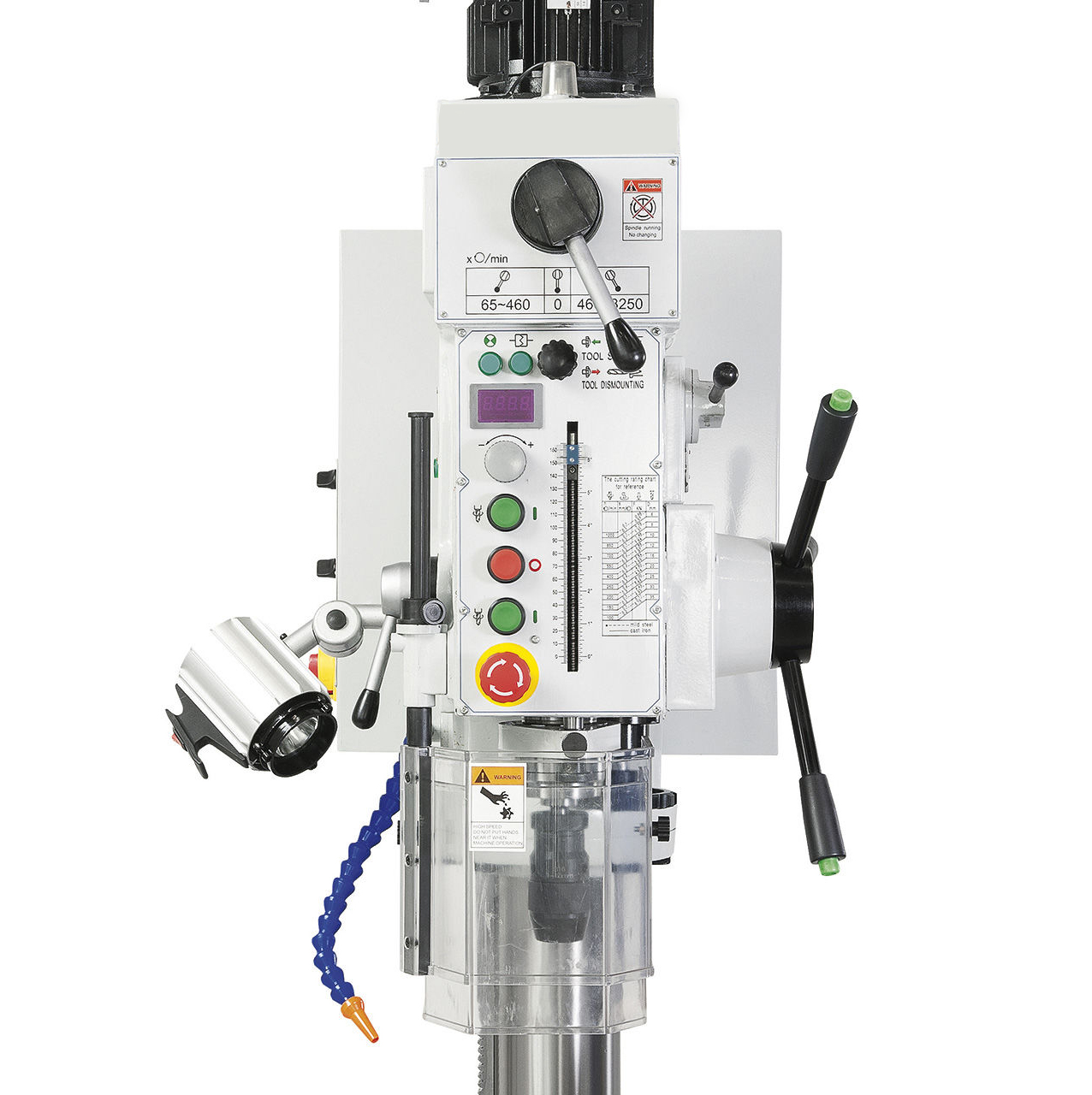

2.Digital readout for the display of speed and cutting depth
3.Electromagnetism clutch transmission feed
4.Coolant system and spindle cover
5. Strength spindle,large diameter column
6.Motor driven or manual lifting of worktable
7.All main parts made with high quality cast iron
8.3PH with two voltage for 220V-575V collocation
9. Trochoid lubrication pump
10. Micro feed is available
11. Worktable could be rotated and could be inclined 45 degree to lest and right
12. Main electrical components with CE,CSA and UL standard
Specification:
|
Model
|
ZWB5035A
|
|
Max.
drilling diameter (steel) and tapping diameter
|
35mm/M22mm
|
|
Max.
milling cutter diameter
|
80mm
|
|
Max.
Travel of spindle
|
155mm
|
|
Max.
distance from spindle to generating line of column
|
320mm
|
|
Max.
distance from spindle nose to the surface of worktable
|
625mm
|
|
Max.
distance from spindle end to the surface of base worktable
|
1180mm
|
|
Max.
travel of worktable and bracket/Manual (Mechanical)
|
560mm
|
|
Swivel
angle of worktable
|
±45°
|
|
Spindle
taper bore
|
MT4
|
|
Spindle
speed steps
|
stepless
|
|
Spindle
speed range
|
65-460,460-3250
r/min
|
|
Spindle
feed steps
|
3
|
|
Spindle
feed range
|
0.1,0.2,0.3
|
|
Dimension
of worktable
|
500 x
420mm
|
|
Effective
working area of worktable
|
370 x
360mm
|
|
Power of
motor
|
1.5KW
|
|
Machine
dimension
|
870 x
510 x 2140mm
|
|
Packing
dimension
|
960 x
590 x 2230mm
|
|
Weight
|
600kg
|
|
Sets/20’
container
|
24
|
Standard accessories:
-Key type drill chuck
-Connecting bar for drill chuck
-Shaft sleeve for taper shank tool
-Wedge for taper shank tool
-double open end spanner
Optional accessoreis:
-Cross worktable
-125mm precision vice
-Germany original Lenze transducer
-Collect and handle of milling cutter
-Rotation worktable
