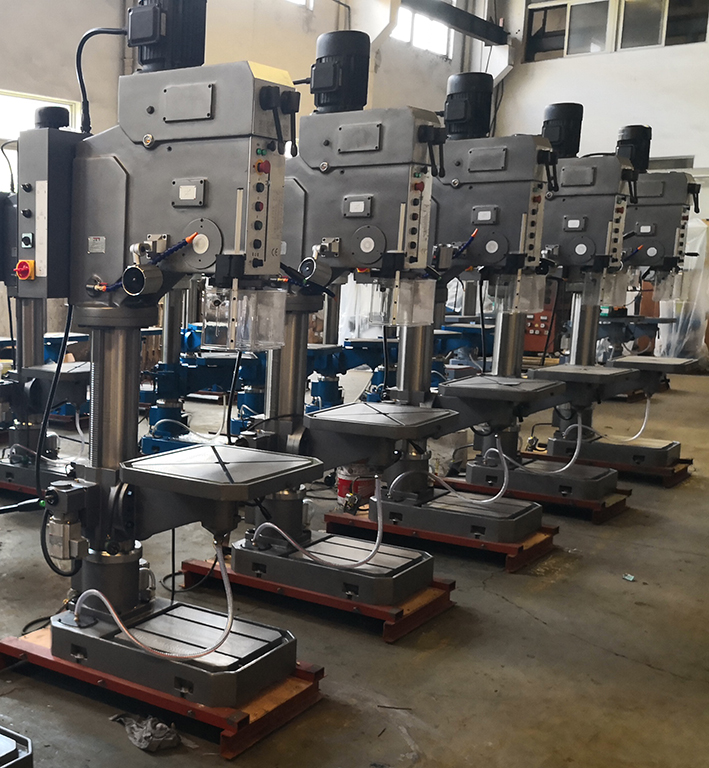

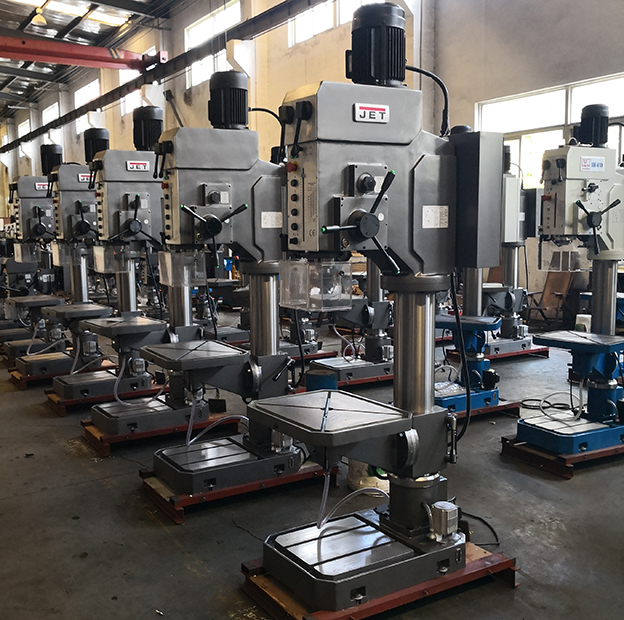

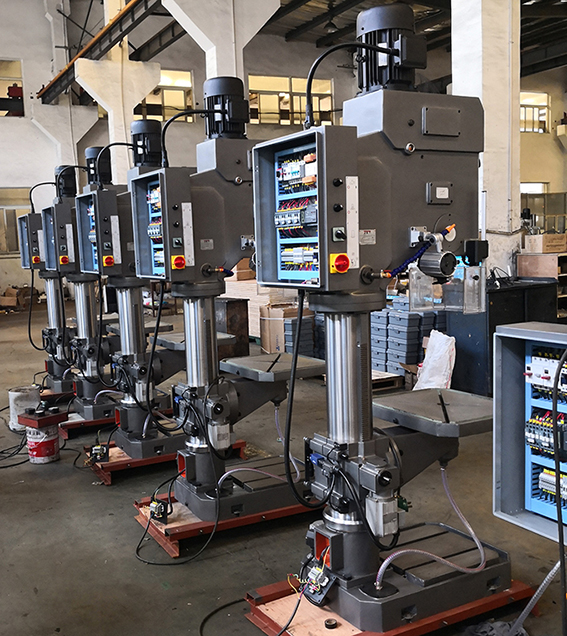

ZY5035A/ZY5035B Drilling machine
Feature:
1.3-phase with two-voltage for 220V-575V Collocation
2.All main parts are made with quality cast iron
3.Single-speed motor, 12 step gear shift
4.Unload tool device and coolant, fender device
5.Drilling diameter above 35mm(including 35mm) with milling function
6.Strength spindle, large diameter column
7.Worktable could be rotated and could be inclined ±45°
8.Motor driven lifting of worktable
9.Micro feed is available
10.Trochoid thin oil lubrication
11.Superior quality of gears with hardened and lapped gears of surface
12.Main motor with break
13.Imported electrical components with CE, CSA and UL
Specification:
|
Model
|
ZY5035A/ZY5035B
|
|
Max.
drilling dia. (steel) and tapping dia.
|
35mm/M22
|
|
Max.
milling cutter diameter
|
80mm
|
|
Max.
Travel of spindle
|
190mm
|
|
Max.
Distance from spindle to generating line of column
|
340mm
|
|
Max.
distance from spindle nose to surface of worktable
|
665mm
|
|
Max.
distance from spindle nose to surface of base worktable
|
1195mm
|
|
Max.
travel of worktable and bracket/ Manual (Mechanical)
|
570mm
|
|
Swivel
angle of worktable
|
±45°
|
|
Spindle
taper bore
|
MT.4
|
|
Spindle
speed steps
|
12
|
|
Spindle
speed ranges
|
76-2065
r/min
|
|
Spindle
feed steps
|
3
|
|
Spindle
feed range
|
0.1,.2,0.3
mm/r
|
|
Dimension
of worktable
|
520 x
440mm
|
|
Effective
working area of worktable
|
405 x
395mm
|
|
Diameter
of column
|
140mm
|
|
Power of
motor
|
1.5KW
|
|
Machine
dimension
|
849 x
545 x 2290mm
|
|
Packing
dimension
|
1000 x
650 x 2220mm
|
|
Weight
(Net/Gross)
|
565/615kg
|
|
Sets/20’
container
|
20
|
Standard accessories:
-Key type drill chuck
-Connecting bar drill chuck
-Shaft sleeve for taper shank tool
-Wedge for taper shank tool
-Double open end spanner
-Cross wortable
-Rotary table
-Collect and milling cutter shank
Special Accessories:
-Cross worktable
-125 precision vice
-Lifting worktable by motor
-Collet and handle of milling cutter
