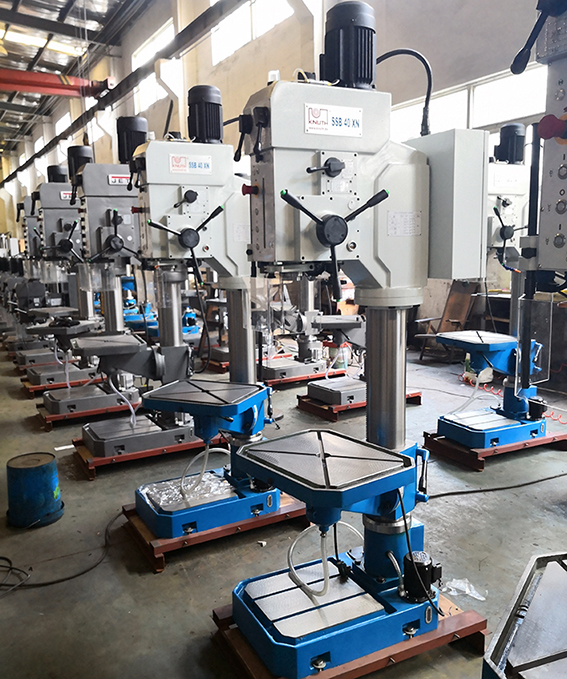

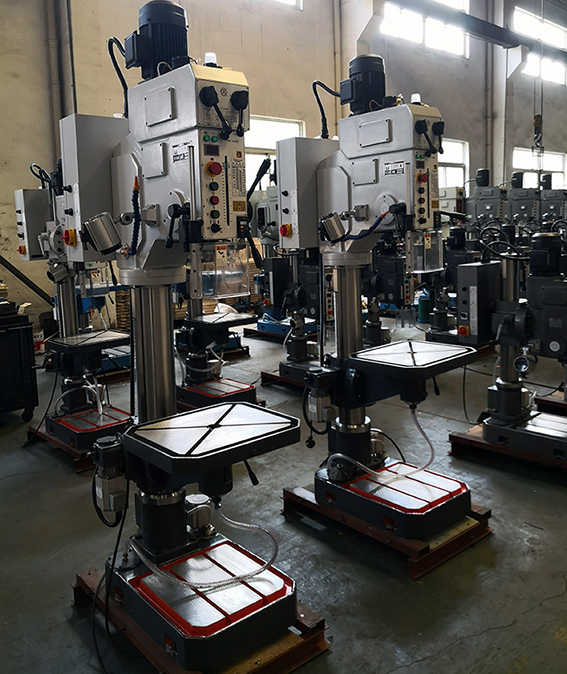

ZN5040A/ZN5040B Gear head drilling machine
Feature:
1) 3 phase with two-voltage for 220v~575v collocation
2) all main parts are made with quality cast iron
3) gear shif
4) Thin oil lubrication is available for drilling diameter 40mm and 50mm, grease lubrication is available for others
5) superior quality of gears with hardened and lapped gears of surface
6) workable could be rotated and could be inclined ± 45 °
7) importable electrical components with CE,CSA and UL standard
8) the model of mchines with A is electromagnetism clutch transmission feed, with B is mechanical feed, without A and B is manual feed.
Specification:
|
Model
|
ZN5040A
|
ZN5040B
|
|
Max.
drilling diameter (steel) and tapping diameter
|
40mm/M24mm
|
40mm/M24mm
|
|
Max.
Travel of spindle
|
190mm
|
190mm
|
|
Max.
distance from spindle to generating line of column
|
360mm
|
360mm
|
|
Max.
distance between spindle end to the worktable surface
|
615mm
|
615mm
|
|
Max.
distance from spindle end to the surface of base worktable
|
1195mm
|
1195mm
|
|
Max.
travel of worktable and bracket
|
550mm
|
550mm
|
|
Swivel
angle of worktable
|
±45°
|
±45°
|
|
Spindle
taper bore
|
MT4
|
MT4
|
|
Spindle
speed steps
|
9
|
9
|
|
Spindle
speed range
|
72-2150
r/min
|
72-2150
r/min
|
|
Spindle
feed steps
|
3
|
3
|
|
Spindle
feed range
|
0.12,0.24,0.42
|
0.12,0.24,0.42
|
|
Dimension
of worktable
|
570 x
480mm
|
570 x
480mm
|
|
Effective
working area of worktable
|
410 x
395mm
|
410 x
395mm
|
|
Power of
motor
|
2KW
|
2KW
|
|
Max
machine dimension
|
945 x
570 x 2290mm
|
945 x
570 x 2290mm
|
|
Weight
(Net/Gross)
|
550/600kg
|
550/600kg
|
Standard accessories:
-Shaft sleeve for taper shank tool
-Key type drill chuck
-Connecting bar drill chuck
-Wedge for taper shank tool
-Double open end spanner
Optional Accessories:
-6-16mm collet
-Milling cutter shank
-Cross worktable
-Collet shank
-Nut for T-slot
-Inner hexagon holt
-125mm precision vice
-Rotation worktable
