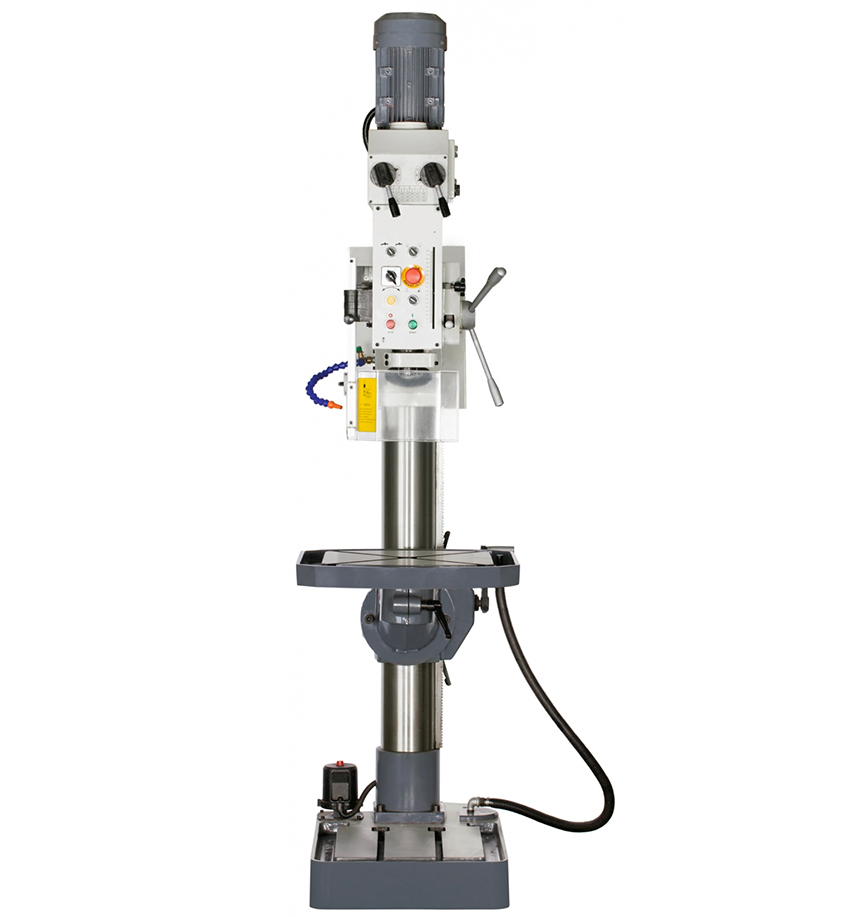

Z5040 Gear head drilling machine
Gears operating in oil ensure smooth
machine run
Comes complete with automatic spindle feed,
tapping device and work lamp
Solid work table turns 360° and features
diagonal T-slots and coolant groove
Includes integrated coolant pump in machine
base

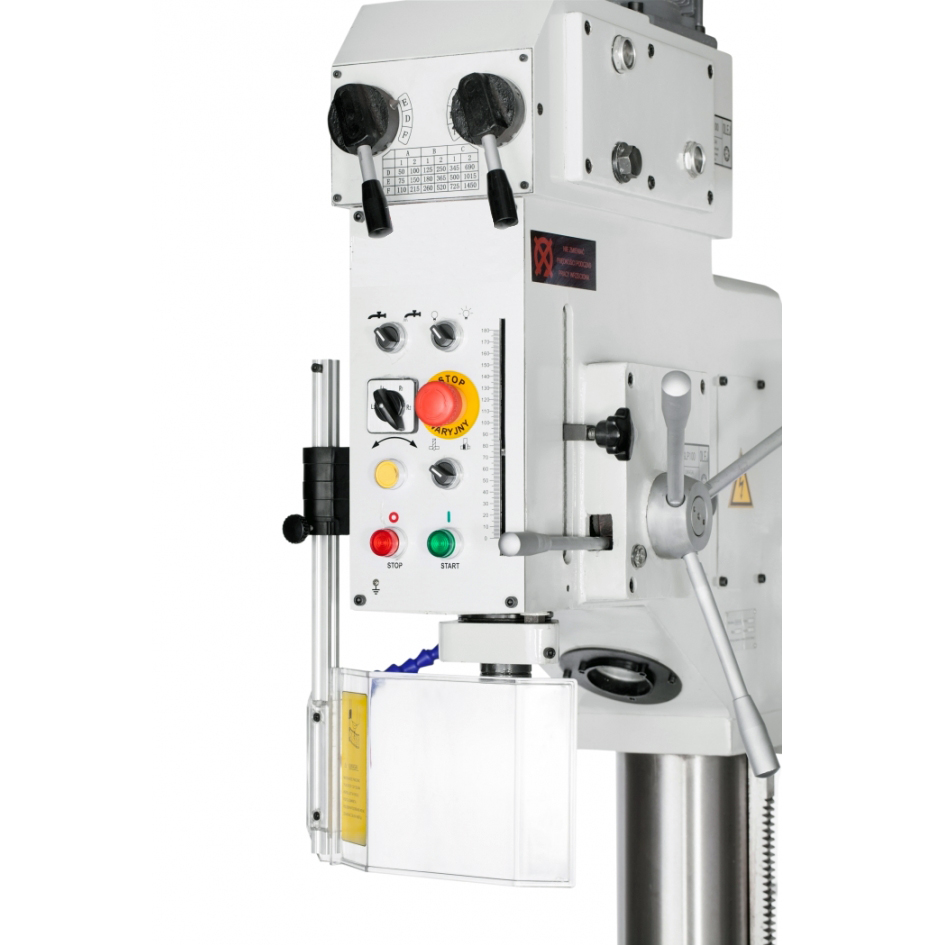

Lever on gear box allows for speed settings
Powerful motor even at continuous operation
Height adjustable protective cover
according to CE standards guarantees high safety
Adjustable drill depth stop with scale
18 gear steps come standard
Technische
Spezifikationen
|
Max.drilling capacity
|
40mm
|
|
Threading in steel & last iron
|
22/24mm
|
|
Distance from spindle center to column
|
350mm
|
|
Distance from spindle nose to worktable
|
770mm
|
|
Distance from spindle nose to base
|
1215mm
|
|
Spindle taper
|
MT4
|
|
Spindle travel
|
180mm
|
|
Spindle power feed range
|
2steps/0.1,0.2mm/re
|
|
Spindle speeds range
|
50-1450rpm
|
|
Worktable size
|
560×560mm
|
|
Dimensions of base
|
735×510mm
|
|
Width of T-slot
|
18mm
|
|
Distance of T-slot of working table
|
125mm
|
|
Distance of T-slot of base
|
200mm
|
|
Cooling pump
|
75w
|
|
Main motor
|
0.85/1.5KW
|
|
Packing size(L×W×H)
|
2270×580×1100mm
|
|
Machine net weight
|
540kg
|
|
Machine gross weight
|
600kg
|
