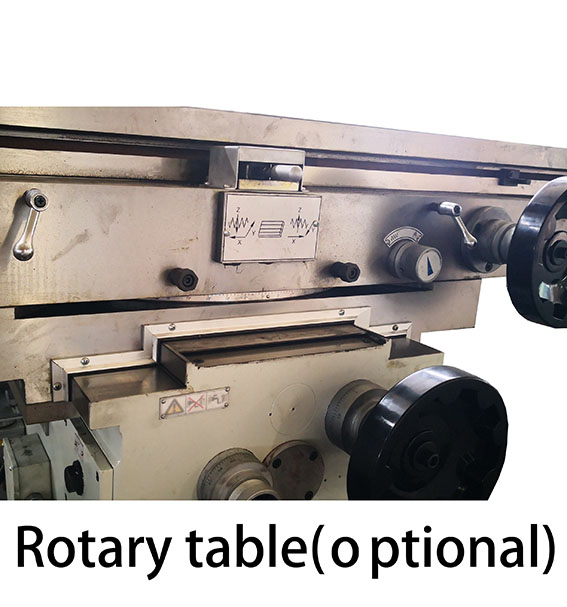

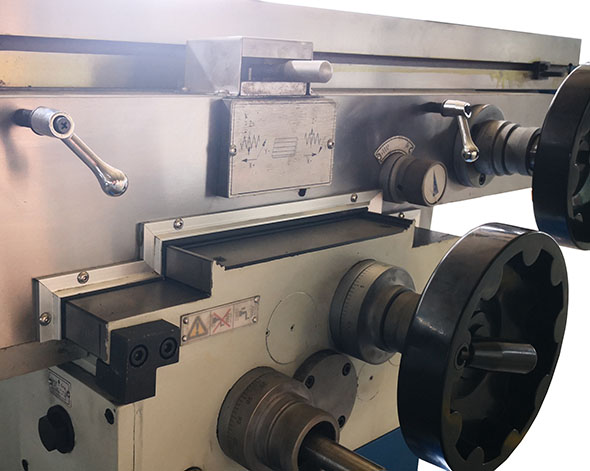

Features:
1. Table 3 axes are controlled by one servo motor, torque large, energy efficiency, safe and reliable.
2. Horizontal spindle widens the range of applications significantly
3. Headstock swivel +- 45
4. Hardened and ground guideways
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in machining of plane and arbitrary angle plane, and slotting, drilling, reaming, boring etc.
Specifications
|
Unit
|
MFM 360 Servo
|
Table size
|
mm
|
1600×360
|
Table travel (X/Y/Z)
|
mm
|
1300/320/450
|
Table feed(X/Y/Z)
|
mm/min
|
30~750/20~500/15~375
|
Spindle taper
|
|
7:24 IS050 (H)
7:24 IS040 (V)
|
Stroke of spindle quill
|
mm
|
5HP:127 (V)
7.5HP :140(V)
|
Arm travel
|
mm
|
550
|
Distance between spindle
nose and table surface
|
mm
|
200-650
|
Distance between horizontal spindle
center line and table surface
|
mm
|
20-470
|
Distance between horizontal spindle
center line and arm surface
|
mm
|
245
|
Spindle speed range
|
mm
|
16 steps 65-4660 (V)
12 steps 60-1800 (H)
|
T-slots(NO./width/pitch)
|
r.p.m
|
3/18/80
|
Main motor power
|
mm
|
5.5 (H)
3.7 (V)
|
3 to feed Ac servo motor torque
|
N.m
|
10
|
Overall size
|
mm
|
2520×2100×2500
|
Net weight
|
kg
|
2800
|
