PRODUCT FEATURES:
1. Longitudinal and cross feeds are effected by servo motor drive through ball screws.
2. Either vertical or horizontal 3-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
3. Both chuck and tailstock are supplied with hydraulic or manual type.
4. The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
5. Variable spindle speed can be programmed as two rangs, that is high one and low one.
|
ITEMS
|

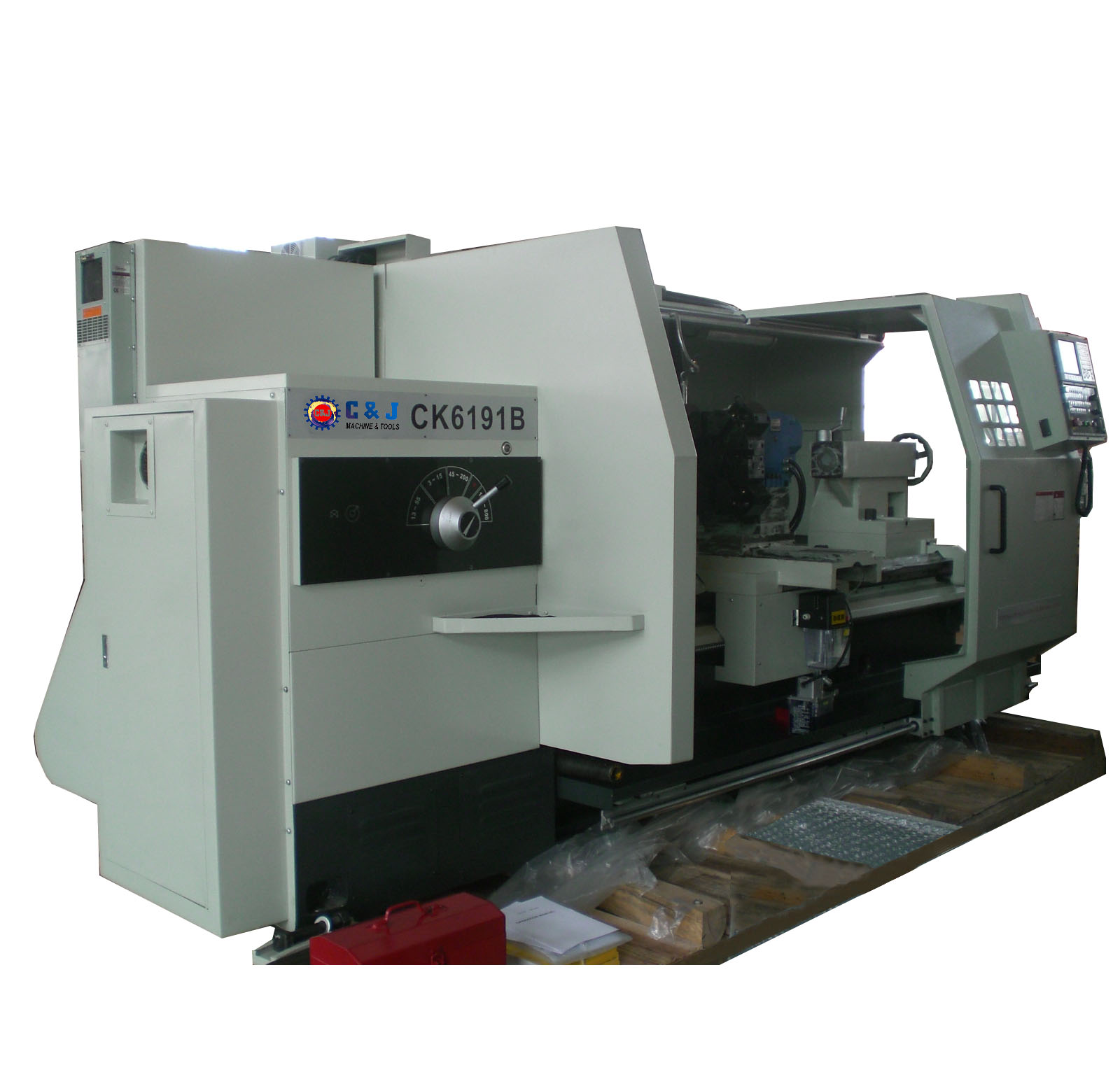

CK6191B/
CK6291B
|
CK61100B/CK62100B
|
CK61110B/CK62110B
|
|
Max.
swing over bed
|
Ø910mm
|
Ø1000 mm
|
Ø1100 mm
|
|
Max.
swing over carriage
|
Ø530mm
|
Ø620mm
|
Ø720mm
|
|
Width of
bed
|
600mm
|
|
Maximum turned
length
|
1.5/2/3/4mm
|
|
Max. turning
length
|
1350/1850/2850/3850mm
|
|
Max. weight
between center
|
2000kg
|
|
over gap
|
Ø1100 mm
|
Ø1200 mm
|
Ø1300 mm
|
|
Effective
length of gap
|
400 mm
|
|
Spindle nose
|
D11
|
|
Spindle bore
|
Ø104mm
|
|
Cone hole
diameter and taper of spindle hole
|
Metric Ø120
1:20
|
|
Steps of
spindle speed(Manual)
|
4 (riable
Within Each Step)
|
|
Range of
spindle speed
|
10~90, 20~180,
40~320, 80~630r/min
|
|
Rapid feed for
Axis Z
|
10m/min
|
|
Rapid feed for
Axis X
|
8m/min
|
|
Max. travel of
Axis X
|
520mm
|
|
Min. input
|
0.001mm
|
|
Tool post
stations
|
4-way
|
|
Tool cross
section
|
40×40mm
|
|
External
diameter
|
Ø100mm
|
|
Taper of bore
|
M.T.NO.5
|
|
Max. Traverse
|
250mm
|
|
Power of main
motor
|
15KW
|
|
Power of
cooling pump
|
370W
|
|
2m Overall
dimensions(L×W×H)
|
4200×2000×1930mm
|
4200×2000×1980mm
|
4200×2000×2030mm
|
|
Net weight
|
6600Kg
|
6770Kg
|
6940Kg
|
|
Note : For
each additional machine length of 1m, there will be additional net weight of
600kg
|
