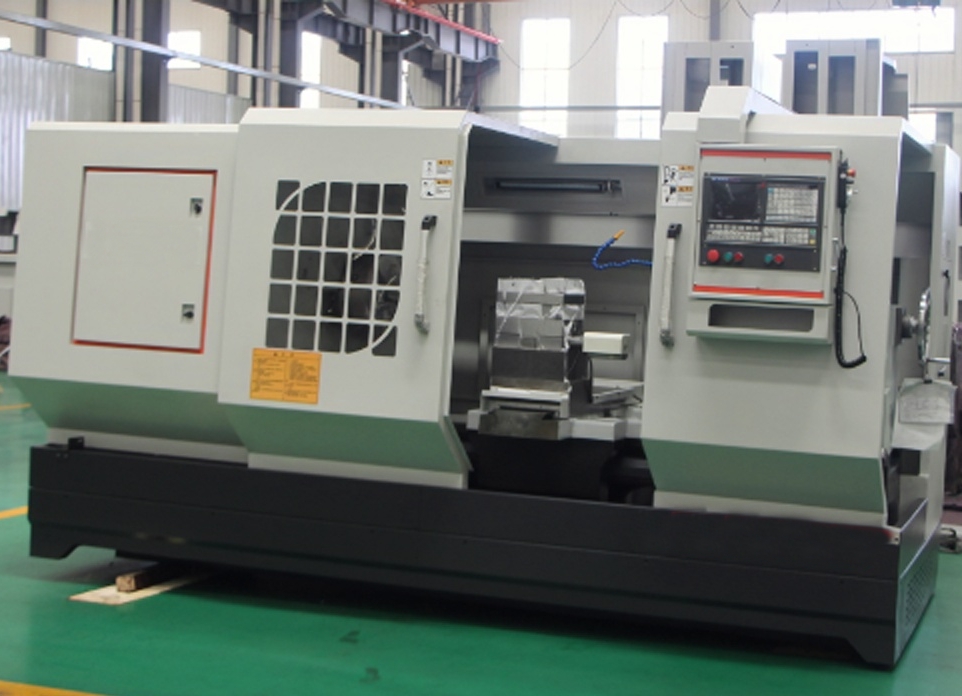

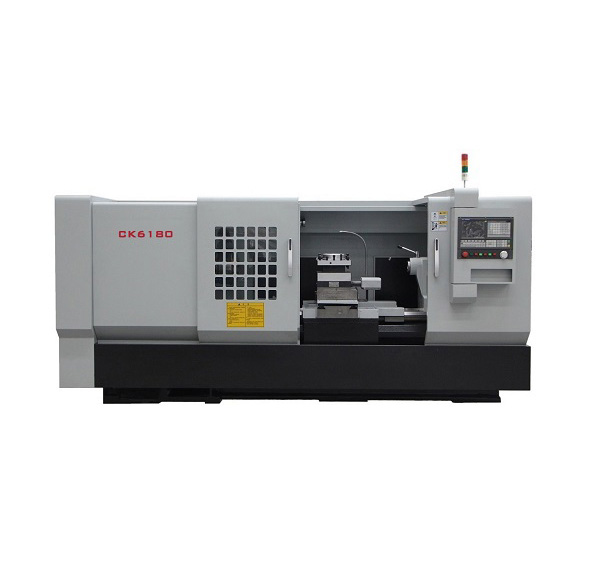

CK6180Q CK61100Q CNC Lathe
The CNC lathe is a general and standard type of automatic metal processing equipment, which can carry out
the finishing and finishing of mechanical processing. It has the characteristics of reliable semi-structure, convenient
operation and practicality. It is suitable for turning deformed surfaces, conical surfaces and other rotating surfaces.
All kinds of threads such as metric system, imperial system module and warpknuckle, are commonly
used automobile processing equipment for machining
Performance characteristics:
High-quality high-strength cast overall bed is good, high precision
Ultra-audio frequency quenching treatment on the surface of the earth, high hardness and long life
The carriage adopts the plasticization process of the guide rail surface, which has good wear resistance and high precision
CKQ6180 CKQ61100 CNC Lathe
|
ITEMS
|
UNIT
|
CK6180Q
|
CK61100Q
|
|
Capacity
|
Swing over bed
|
mm
|
Φ800
|
Φ800
|
|
Swing over cross slide
|
mm
|
Φ480
|
Φ680
|
|
Distance between centers
|
mm
|
1000/1500/2000/3000/4000/5000/6000
|
|
Width of bed way
|
mm
|
600
|
|
Max. load capacity
|
T
|
4
|
|
Spindle
|
Spindle bore
|
mm
|
Φ104
|
|
Spindle bore taper
|
-
|
MetricΦ120/MT5
|
|
Spindle nose type
|
-
|
C11
|
|
Spindle speed range
|
rpm
|
3 steps/10-800 (HYD 3 Steps 17-800）
|
|
Chuck size
|
mm
|
Φ400
|
|
Chuck type
|
-
|
3-jaw manual
|
|
Turret
|
Turret type
|
-
|
NC turret 4 position
|
|
Tool shank size
|
mm
|
32×32
|
40x40
|
|
Carriage
|
X axis travel
|
mm
|
420
|
520
|
|
Z axis travel
|
mm
|
850/1350/1850/2850/3850/4850/5850
|
1250/1750/2750/3750/4750/5750
|
|
X axis rapid traverse speed
|
mm/min
|
4000
|
|
Z axis rapid traverse speed
|
mm/min
|
6000
|
|
Tailstock
|
Tailstock quill diameter
|
mm
|
Φ100
|
Φ100
|
|
Tailstock quill taper
|
-
|
MT5
|
MT6
|
|
Tailstock quill travel
|
mm
|
250
|
250
|
|
Motors
|
Main spindle motor
|
kW
|
15
|
15
|
|
Coolant pump motor
|
kW
|
0.125
|
0.125
|
|
Dimensions
|
Width x Height
|
mm
|
1850×1900
|
1900X2100
|
|
Length
|
mm
|
3500/4000/4500/5500/6500/7500/8500
|
4000/4500/5500/6500/7500/8500
|
|
Weight
|
Net weight
|
T
|
4.6/5.0/5.4/6.1/6.8/7.5/8.2
|
5.4/5.8/6.5/7.2/7/9/8.6
|
