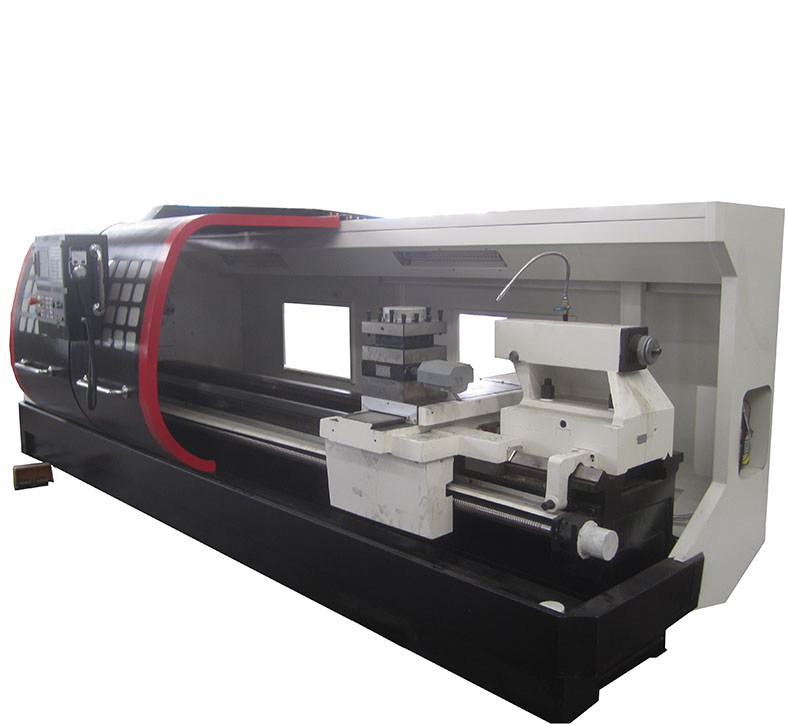

CNC horizontal lathe series including CK6163, CK6180, CK61100 and CK61120 is the widely used standard automated metal processing equipment at present, which is suitable for processing large size metal parts and components with complex shape such as shaft and disc; it will greatly improve the processing efficiency and reduce the labor intensity of the workers when it is used to process great mass of parts. This series of lathe is reliable in accuracy and stability and easy in operating and programming, it can undertake various turning works such as turning inner and outer cylindrical surface, so it is applied widely and is a kind of ideal metal processing equipment.
|
MODEL
|
CK6163
|
CK6180
|
CK61100
|
CK61120
|
|
Max.swing over bed
|
630mm
|
800mm
|
1000mm
|
1200mm
|
|
Max.swing over cross bed slide
|
335mm
|
470mm
|
670mm
|
830mm
|
|
Center distance
|
1500 2000 3000 4000mm
|
|
Spindle hole
|
φ105mm
|
|
Maxdistance of moving tool-post
|
|
|
Longitude
|
1500 2000 3000 4000mm
|
|
Transerse
|
420mm
|
420mm
|
520mm
|
520mm
|
|
Spindle speeds(Number)
|
6-20,18-70,70-245,225-750(4 gears stepless)
|
|
Main motor power
|
11or15kw AC motor
|
|
Speed of high-speed movement
|
|
|
Longitude
|
6m/min
|
|
Transerse
|
4m/min
|
|
Tool numbers on tool-post
|
4,6,8
|
|
Positioning accuracy
|
|
|
Longitude
|
0.04/1000mm
|
|
Transerse
|
0.03mm
|
|
Repeatiablity
|
|
|
Longitude
|
0.016/1000mm
|
|
Transerse
|
0.012mm
|
|
Repeatiablity accuracy of tool-post
|
0.005mm
|
|
Feed resoving factor
|
|
|
Longitude
|
0.01mm
|
|
Transerse
|
0.005mm
|
|
NET.WEIGHT(KG)
|
|
|
Center distance:1500mm
|
4300kg
|
4500kg
|
4700kg
|
4900kg
|
|
2000mm
|
4800kg
|
5000kg
|
5200kg
|
5400kg
|
|
FLOOR SPACE(L*W*H)
|
|
|
Center distance:1500mm
|
3460×1830×1730
|
3460×1910×1960
|
