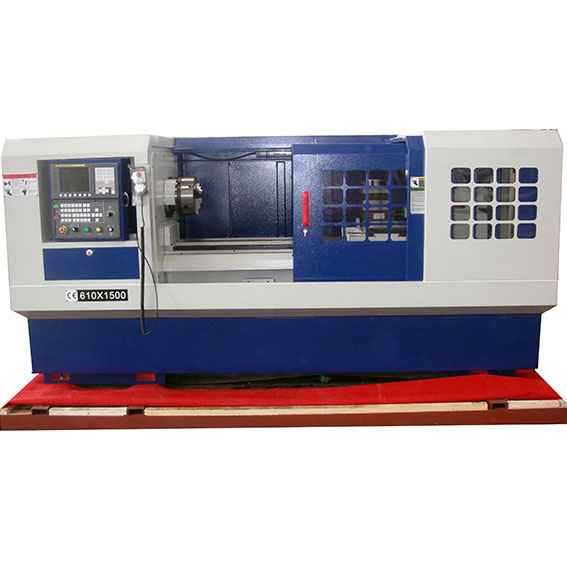

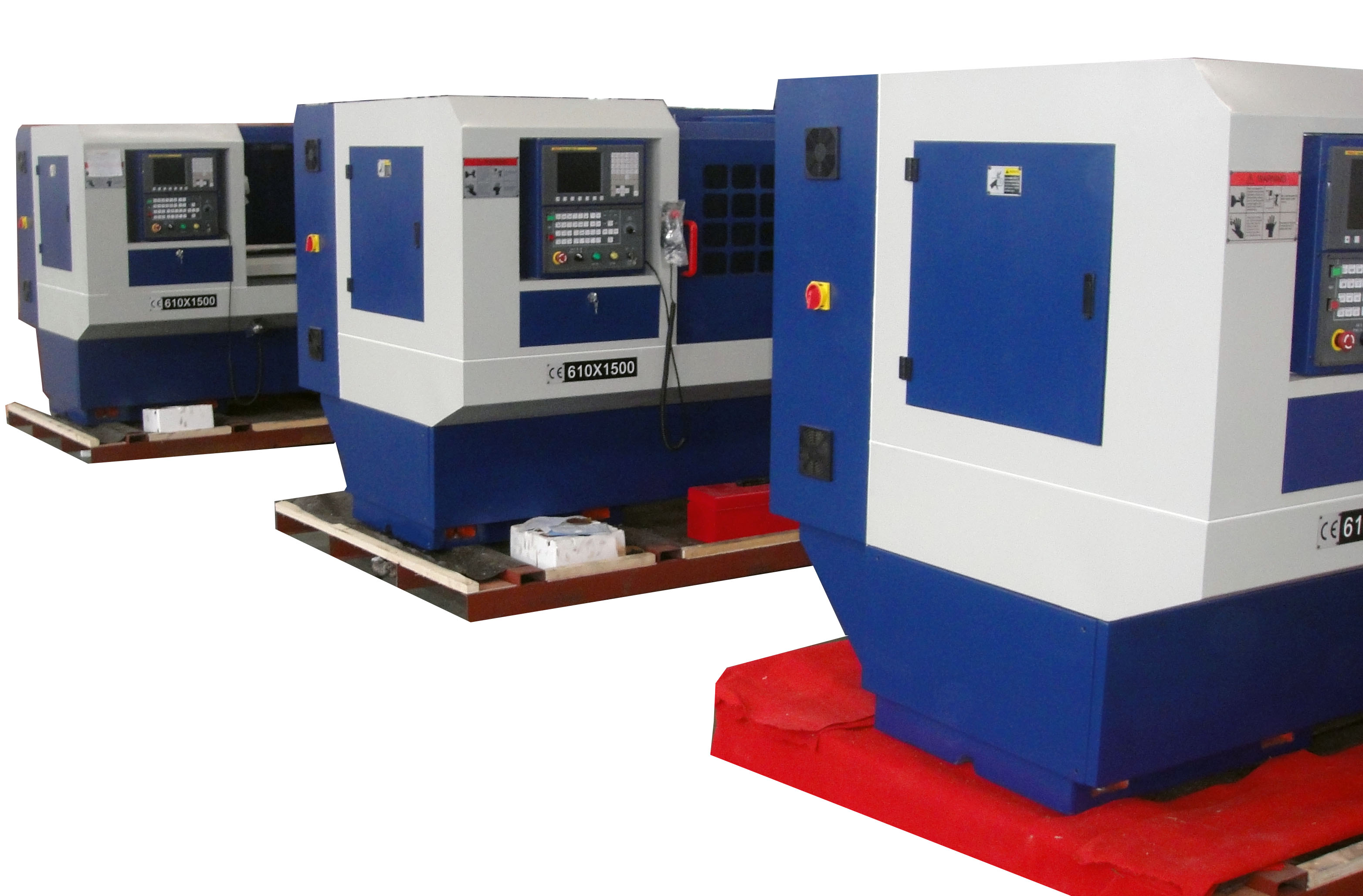

A: Main Features:
1.Spindle with smooth surface and high speed
2.Japan NSK bearing
3.Body and guide of lathe has good rigidity and stability;
4.the guide is treated by super audio quenching with high hardness,
5.The carriage adopts plastic paste processing. High precision with long life.
6.Spindle brake way by electric brake
7.Feed of X.Z axis are driven by all screw with servo-motor
8.Electronic hand wheel equipped easy operation.
9.Can be free to choose CNC system
10.Three gears speed change and stepless speed change with lower noise and high standard machining accuracy;
11.Three kinds of spindle bore can be choose(52mm/82mm/105mm)while the diameter of chuck is φ250mm and 325mm
|
pecifications
|
Units
|
CAK6140
CAK6140B CAK6140C
|
CAK6150
CAK6150B CAK6150C
|
CAK6161
CAK6161B CAK6161C
|
CAK6166
CAK6166B CAK6166C
|
CAK6180
CAK6180B CAK6180C
|
|
Max.swing
over bed
|
mm
|
400
|
500
|
610
|
660
|
800
|
|
Max.processing
length
|
mm
|
750/1000/1500/2000/3000
|
|
Spindle taper
|
|
MT6(Ø90
1:20 for B)[Ø113 1:20 for C]
|
|
Chuck
size
|
mm
|
C6(D8)[D8]
|
|
Spindle
bore
|
mm
|
52(80
for B)[105 for C]
|
|
Spindle
speed 3 steps (auto change gear)
|
rpm
|
Independent
spindle:100-1600
21-1500(162-1500,66-500,21-150)
|
|
Tailstock
sleeve travel
|
mm
|
150
|
|
Tailstock
sleeve taper
|
|
MT5
|
|
Position
accuracy
|
mm
|
±0.015
|
|
Repositioning
accuracy
|
mm
|
±0.006
|
|
X/Z
axis rapid traverse
|
m/min
|
4/6
|
|
Spindle
motor
|
kw
|
7.5
|
11
|
|
|
Machine
dimension for 750
|
mm
|
2550x1550x1700
|
2550x1550x1900
|
|
|
Machine
dimension for 1000
|
mm
|
2750x1550x1700
|
2750x1550x1900
|
|
|
Machine
dimension for 1500
|
mm
|
3250x1550x1700
|
3250x1550x1900
|
|
|
Machine
dimension for 2000
|
mm
|
3700x1550x1700
|
3700x1550x1900
|
|
|
Machine
dimension for 3000
|
mm
|
4710x1550x1700
|
4710x1550x1900
|
|
|
Machine
weight for 750
|
kg
|
2100/2800
|
2120/2900
|
2250/2850
|
2300/2900
|
2400/3000
|
|
Machine
weight for 1000
|
kg
|
2200/2900
|
2240/3000
|
2400/3000
|
2450/3050
|
2550/3150
|
|
Machine
weight for 1500
|
kg
|
2300/3150
|
2350/3200
|
2600/3200
|
2650/3250
|
2750/3350
|
|
Machine
weight for 2000
|
kg
|
2700/3350
|
2740/3400
|
2830/3400
|
2880/3450
|
2980/3550
|
|
Machine
weight for 3000
|
kg
|
3500/4100
|
3600/4200
|
3650/4250
|
3700/4300
|
3800/4400
|
Standard Configuration :
1.System: GSK
2.3-jaw manual chuck
3.4-station electric turret
4.Frequency spindle motor
5.Stepless speed changer
6.Manual tailstock
7.Lighting system
8.Cooling system
9.Automatic lubrication system
Optional Configuration:
|
System
|
KND ,Siemens ,Fanuc etc
|
|
Spindle motor
|
Servo spindle motor
|
|
Tool post (turret)
|
Electric 6-station / 8-station /Gang type 4-station
|
|
Chuck
|
Spring chuck ,Hydraulic chuck ,pneumatic chuck
|
|
Tailstock
|
Hydraulic tailstock ,pneumatic tailstock
|
|
Feeder
|
Automatic Bar feeder
|
|
Conveyor
|
Automatic chip conveyor
|
|
Speed change
|
Stepless speed ,Three-gear speed change
|
