Features:
1,Strong
casting base
2,Precision
spindle bearings
3,High
frequency hardening guide ways
4,High
frequency hardening for the carriage
5,Can
adopt GSK,KND,SIMENS or FUNUC contrlling system
|
|
Technical parameter
|

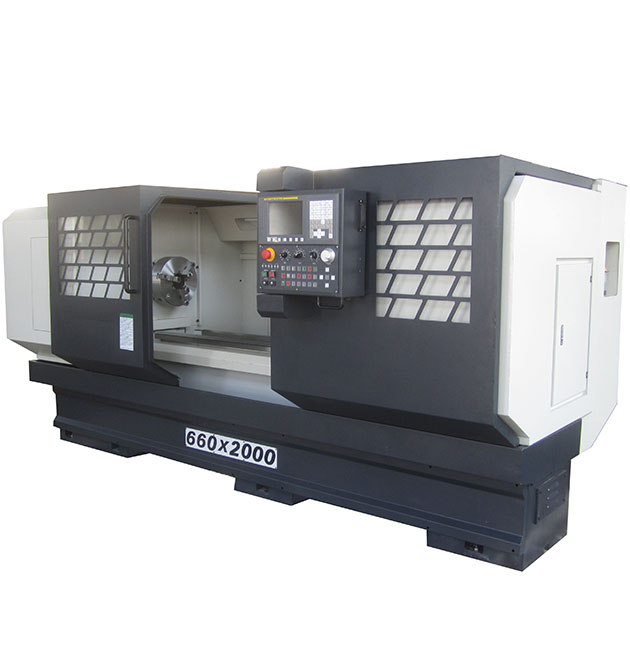

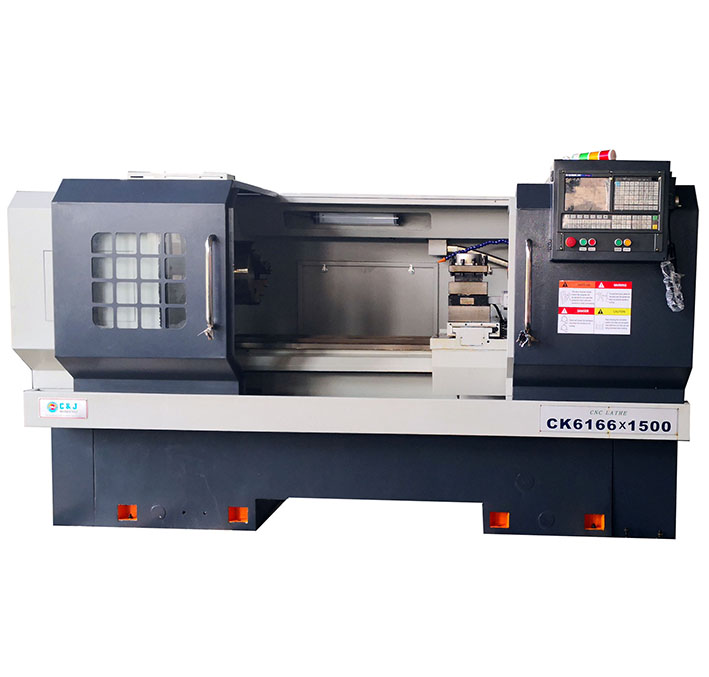

CK6166x1000/1500/2000/3000
|
CK6180x1000/1500/2000/3000
|
|
CAPACITY
|
Max.swing over bed
|
660mm
|
800mm
|
|
Max.swing over carriage
|
380mm
|
560mm
|
|
Max.cutting legth
|
1000/1500/2000/3000mm
|
|
RAIL WIDTH
|
Rail width
|
460mm
|
|
SPINDLE
|
Spindle nose
|
A2-8 or A2-11
|
|
Spindle bore
|
86mm or 105mm
|
|
Taper of Spindle bore
|
90mm,1:20 or 115mm 1:20
|
|
Chuck
|
10”or 15”
|
|
Range of spindle speed
|
100-1600rpm or
30-150,100-500,150-1200rpm
|
|
FEEDS
|
X a-xis travel
|
380mm
|
450mm
|
|
Z a-xis travel
|
1000/1500/2000/3000mm
|
|
X/Z Rapid speed
|
5/8m/min
|
|
X/Z Rapid Screw
|
3206/5010
|
|
CARRIAGE
|

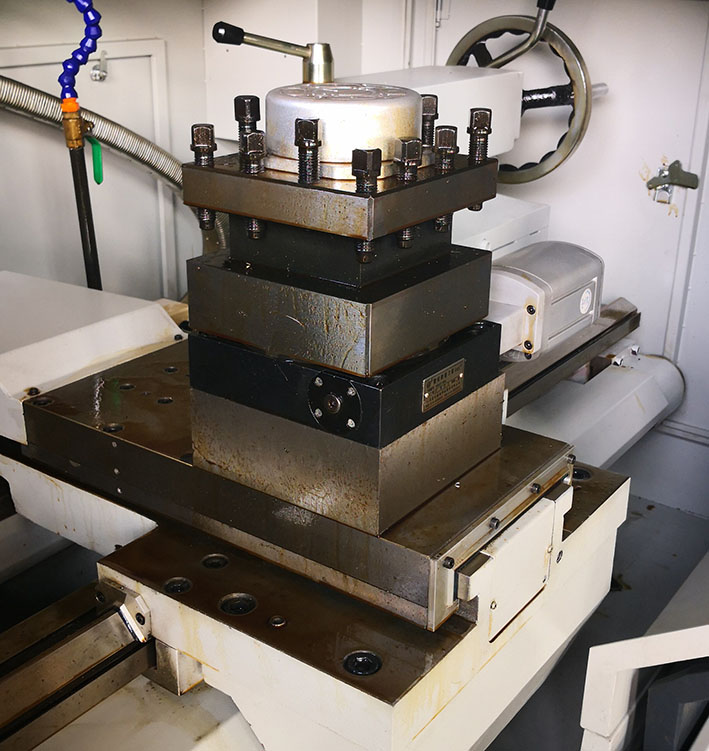

Hydraulic trurret
|
4 or 6 or 8
|
|
Max.section of tool
|
30x30/38x38mm
|
|
TAILSTOCK
|
Stroke of tailstock sleeve
|
235mm
|
|
Diameter/Hole of tailstock
sleeve
|
100mm/MT5
|
|
MOTOR
|
Main motor power
|
11kW
|
|
Coolant pump power
|
250W
|
|
DIMENSION
|
Overall dimensions L x W
x H
|
3000/3320/3830/4830x1600x1830mm
|
|
Parking size L x W x
H
|
3300/3520/4030/5030x1760x2030mm
|
|
WEIGHT
|
Net weight
|
3900/4400/5200KG
|
4100/4600/5400KG
|
|
Groos weight
|
4300/4900/5800KG
|
4500/5000/6000KG
|
