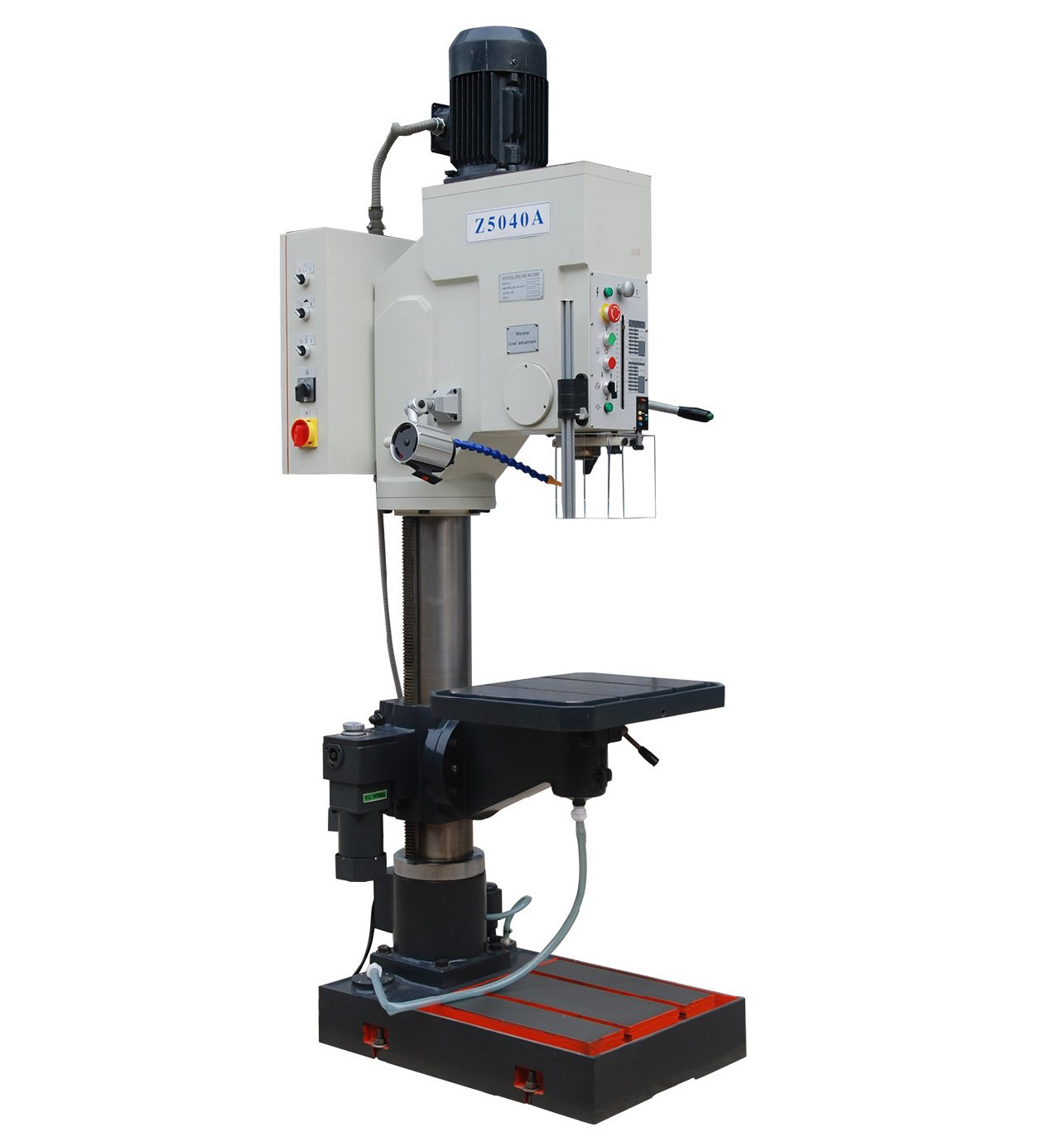

Z5032A Z5035A Z5040A Z5050A Gear head round column vertical drilling machine
VERTCIAL DRILLING MACHINE FEATURES:
The machine is designed with multi-function of drilling. Broaching, reaming, tapping and facing milling.
With a strengthened capacity of drilling it allows the workpieces to be drilled with larger range of size.
It is suitable for using in both production and maintenance shops
1. Easy operation.
2. Casting iron structure for long durability.
3. Column type of vertical drilling machine.
4. Worktable can tilt 45degree
function of drilling. Broaching, reaming, tapping and facing milling.
With a strengthened capacity of drilling it allows the workpieces to be drilled with larger range of size.
It is suitable for using in both production and maintenance shops
1. Easy operation.
2. Casting iron structure for long durability.
3. Column type of vertical drilling machine.
4. Worktable can tilt 45degree
Z5030A Z5035A Z5040A Z5050A Gear head round column vertical drilling machine
|
MODEL
|
Z5030A
|
Z5035A
|
Z5040A
|
Z5050A
|
|
Max. drilling capacity(mm)
|
30
|
35
|
40
|
50
|
|
Max. taping capacity(mm)
|
M18
|
M20
|
M24
|
M30
|
|
Distance from spindle axis to
generating line of column(mm)
|
315
|
330
|
360
|
360
|
|
Max. distance from spindle nose to
work table surface(mm)
|
520
|
610
|
600
|
600
|
|
Max. distance from spindle
nose to base(mm)
|
1080
|
1150
|
1215
|
1205
|
|
Max. spindle travel(mm)
|
135
|
150
|
180
|
180
|
|
Max. adjustment of work
table and table rest(mm)
|
480
|
540
|
560
|
525
|
|
Swivel of table and table reat
|
±45°
|
±45°
|
±45°
|
±45°
|
|
Spindle bore taper(Morse)
|
3
|
4
|
4
|
4
|
|
Spindle steps
|
12
|
12
|
12
|
12
|
|
Spindle speed(r/min)
|
70-2600
|
70-2600
|
42-2050
|
42-1865
|
|
Spindle feed steps
|
3
|
3
|
4
|
4
|
|
Spindle feed range(mm/r)
|
0.1,0.2,0.3
|
0.07,0.15, 0.26,0.4
|
|
Column diameter
|
125
|
140
|
160
|
170
|
|
Effective area of table(mm)
|
450x450
|
500x550
|
580x450
|
580x450
|
|
Effective area of base plate(mm)
|
690x480
|
760x500
|
820x550
|
820x550
|
|
Dimension of T-slot (mm)
|
2-14 2-16
|
2-14 2-16
|
2-14 2-16
|
2-14 2-16
|
|
3-phase tea-speed AC motor
|
1.1/1.5
|
1.5/2.2
|
2.2/2.8
|
2.2/2.8
|
|
3-phase pump motor
|
0.09
|
0.09
|
0.09
|
0.09
|
