T8216 Con-rod Boring Machine
1.Automatic and manual table traverse controls both avaliable for this machine, table is driven by reduction motor and ball screws. provide powerful and smooth travels.
2.Both carriage adopt linera guidway, it can provide higher precision and longer life.
3.Main spindle is driven by double speed motor and 3 level pulley transmission. provide total 6 speed range. it can fit different size and material needed.

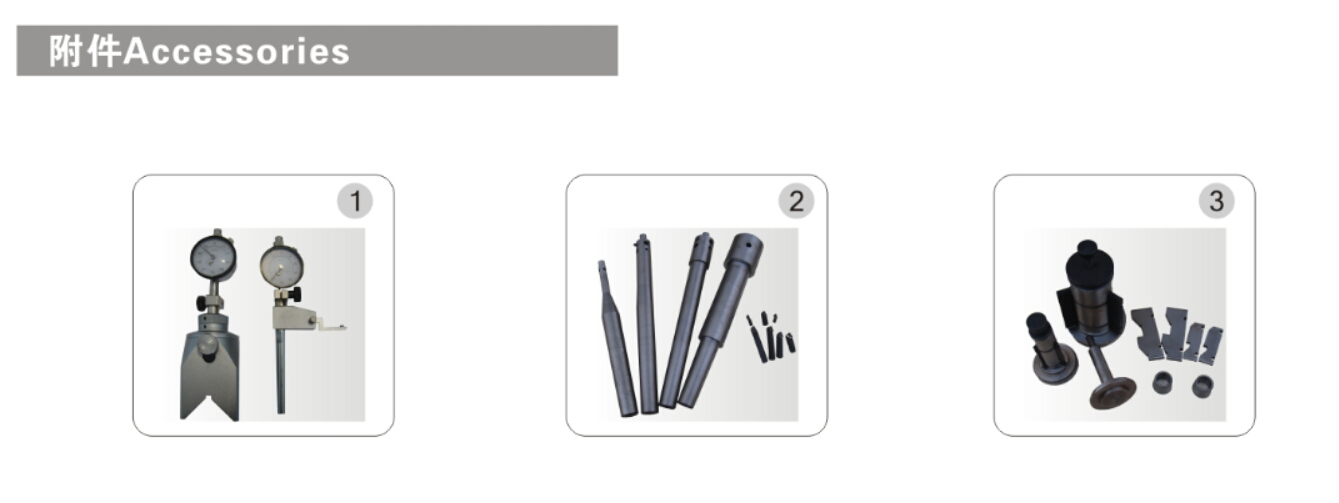

4.Boring tools, centering gauge, tool setting gauge were all standard equipment, makes your work comes easy.
T8216 Con-rod Boring Machine
Main specifications
|
Model
|
T8210D
|
T8216
|
|
Diameter range of boring hole
|
16-100 mm
|
15-150 mm
|
|
Centre distance of link two hole
|
100-425 mm
|
85-600 mm
|
|
Longitudinal travel of worktable
|
220 mm
|
320 m
|
|
Spindle speed
|
350, 530, 780, 1180 rpm
|
140, 215, 355, 550, 785, 1200 rpm
|
|
Transverse adjusting amount of fixture
|
80 mm
|
80 mm
|
|
Feeding speed of worktable
|
16-250 mm/min
|
16-250 mm/min
|
|
Traveling speed of working
|
1800 mm/min
|
1800 mm/min
|
|
Diameter of boring bar (4 class)
|
14, 16, 24, 40 mm
|
14, 29, 38, 59 mm
|
|
Main motor power
|
0.65/0.85 Kw
|
0.85/1.1 Kw
|
|
Motor power of oil pump
|
0.55 Kw
|
0.55 Kw
|
|
Overall dimensions(L×W×H)
|
1150×570×1710 mm
|
1300×860×1760 mm
|
|
Packing dimensions(L×W×H)
|
1700×950×1450 mm
|
1850×1100×1700 mm
|
|
N.W/G.W
|
700/900 kg
|
900/1100 kg
|
