Main
prameters type
|
CW61100E
CW62100E
|

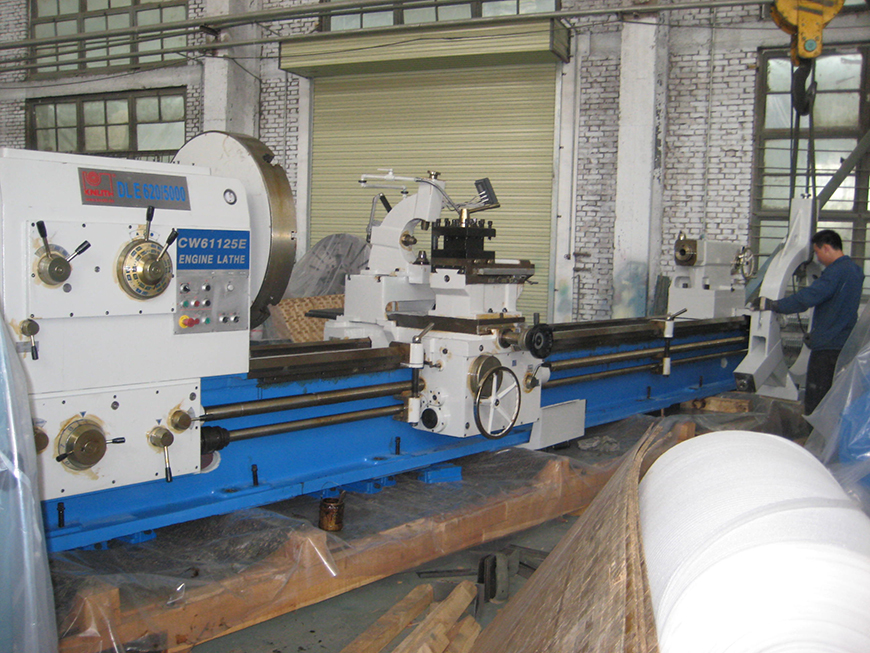

CW61125E
CW62155E
|
CW64100E
CW62140E
|
CW61125
CW62125
|
CW61140
CW62140
|
CW61160
CW62160
|
CW61180/1
CW62180/1
|
|
|
Swing overbet
|
mm(in)
|
1000(40)
|
1250(50)
|
1400(56)
|
1250(50)
|
1400(56)
|
1600(64)
|
1800(72)
|
|
Swing overgap
|
mm(in)
|
1250(50)
|
1500(60)
|
1650(66)
|
1750(870)
|
1930(77)
|
2110(84)
|
|
|
Swing over
carriage
|
mm(in)
|
650(26)
|
900(36)
|
980(38)
|
900(36)
|
1100(44)
|
1280(51)
|
1480(59)
|
|
Maximum
turning length
|
mm(in)
|
1500-16000(60-640)
|
1500-16000(60-640)
|
|
Maximum weight
of workpiece batween centers
|
kg
|
6000、8000
|
8000、10000
|
|
Width of the
bed
|
mm(in)
|
755(33)
|
970(39)
|
|
Spindle noses
No.
|
ISO
|
A2-15
|
A2-15
|
|
Diameter of
spindle front bearing
|
mm(in)
|
200(8)
|
200(8)、220(8.8)
|
|
Diameter of
spindle hole
|
mm(in)
|
130(5.2)
100(4)
|
130(5.2)、100(4)
|
|
Taper hole of
spindle
|
|
Metric No.140
|
Metric No.140
|
|
Number of
spindle speeds
|
|
手动21级（Manual operating)
|
|
Range of
spindle speeds
|
r/min
|
3.15-315
2.5-250(2-200)
|
3.15-315
2.5-250(2-200)
|
|
Main motor
power
|
kw
|
AC22
|
AC22
|
|
Rapid
travelling speed of motor power
|
kw
|
1.5
|
1.5
|
|
Section of
tool shank
|
mm(in)
|
45×45(1.8×1.8)
|
45×45(1.8×1.8)
|
|
Swivel angle
of tool post
|
|
±90°
|
±90°
|
|
Travel of
transvers tool post
|
mm(in)
|
|
200(8)
|
|
200(8)
|
|
Travel of
longitudinal tool post
|
|
200(8)
|
400(16)
|
200(8)
|
400(16)
|
|
travel of
cross slide
|
mm(in)
|
520(21)
|
695(27)
|
720(28)
|
880(35)
|
|
Rapid
travelling speed of longitudinal
tool post
|
mm/min
|
935
|
935
|
|
Rapid
travelling speed of transverse
|
mm/min
|
1870
|
1870
|
|
Rapid
travelling speed of longitudinal
|
mm/min
|
3740
|
3740
|
|
Metric threads
number and range
|
mm
|
45、1-120
|
45、1-120
|
|
Inch threads
number and range
|
T.P.I.
|
42、30-1/4
|
42、30-1/4
|
|
Modul threads
number and range
|
mm
|
46、0.5-60
|
46、0.5-60
|
|
Diameter pitch
threads number and range
|
D.P.
|
48、60-0.5
|
48、60-0.5
|
|
Longitudinal
number and range of feeds
|
m/rev
|
97、0.064-12
|
97、0.064-12
|
|
Transverse
number and range of feeds
|
m/rev
|
97、0.032-6
|
97、0.032-6
|
|
Longitudinal
tool post number and range of feeds
|
m/rev
|
97、0.016-3
|
97、0.016-3
|
|
Diameter of
tailstock quill
|
mm(in)
|
160(6.4)
|
160(6.4)
200(8)
|
|
Taper hole of
tailstock quill
|
|
Metric No.80、Morse No.6
|
Metric No.80、Morse No.6
|
|
Travel of
tailstock quill
|
mm(in)
|
300(12)
|
300(12)
|
|
Weight of the
lathe with 3m b.c.
|
kg
|
10800
|
11500
|
12300
|
11200
|
12200
|
13200
|
14200
|
|
Additional
weight par 1m b.c.
|
kg
|
1200
|
1400
|
|
Machine
overall dimension(length×width×height)(3m)
|
mm
|
6100×1900×2000
6100×2000×2100
6100×2100×2200
|
6360×2100×2300
6360×1960×2400
6360×2060×2500
6360×2160×2600
|
