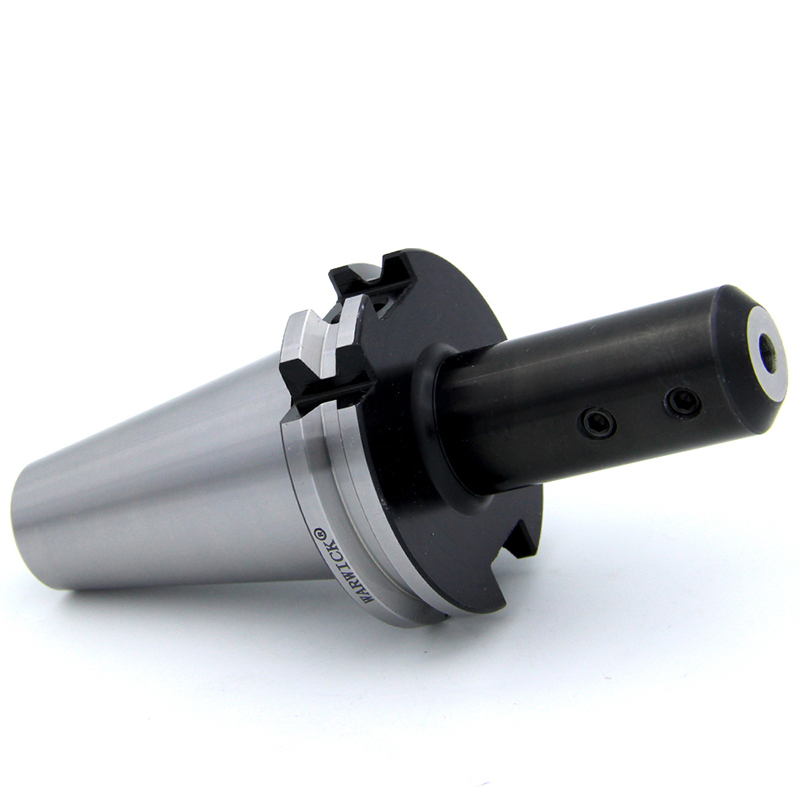

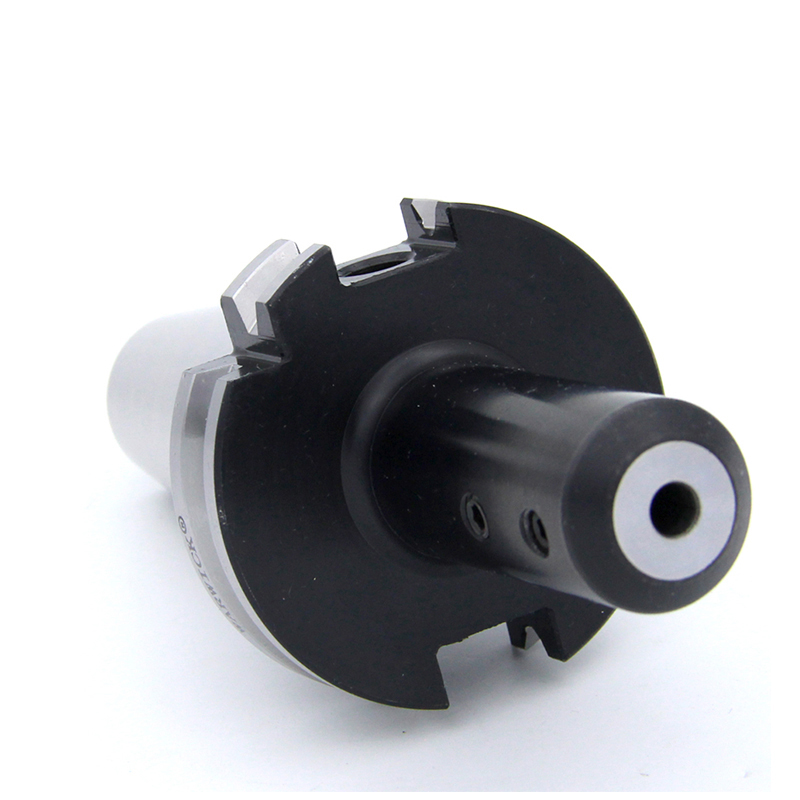

SK Side Lock End Mill Arbors Sln Tool Holder

Model No.

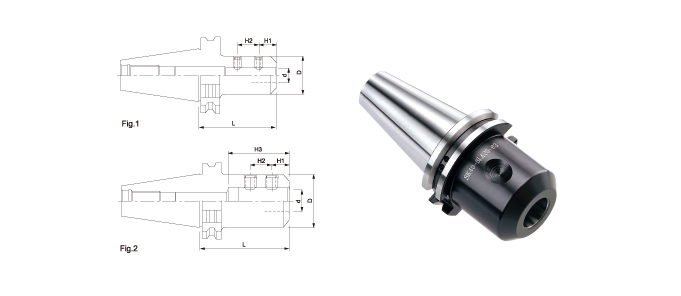

Fig

Ød (mm)

ØD (mm)

ØD1 (mm)

L (mm)

H1 (mm)

H2 (mm)

G

Weight (Kgs)

SK40-SLA6-60

1

6

25

60

9

10

-

M6

0.9

SK40-SLA8-60

1

8

30

60

12

12

-

M8

1

SK40-SLA10-60

1

10

34

60

15

12

-

M8

1.1

SK40-SLA12-63

1

12

38

63

18

16

-

M10

1.15

SK40-SLA16-63

2

16

45

63

20

18

50

M10

1.35

SK40-SLA20-63

2

20

50

63

25

20

60

M12

1.4

SK40-SLA25-100

2

25

57

100

24

25

66

M16

2.2

SK40-SLA32-100

2

32

60

100

24

28

70

M16

2.6

SK50-SLA10-75

1

10

34

75

15

12

-

M8

3.3

SK50-SLA12-75

1

12

40

75

18

16

-

M10

3.5

SK50-SLA16-75

1

16

45

75

20

18

-

M10

3.5

SK50-SLA20-75

2

20

50

75

25

20

60

M12

3.6

SK50-SLA25-80

2

25

60

80

24

24

66

M16

4.3

SK50-SLA32-100

2

32

62

100

24

28

75

M16

5.1

SK50-SLA40-100

2

40

80

100

30

32

90

M20

5.8
