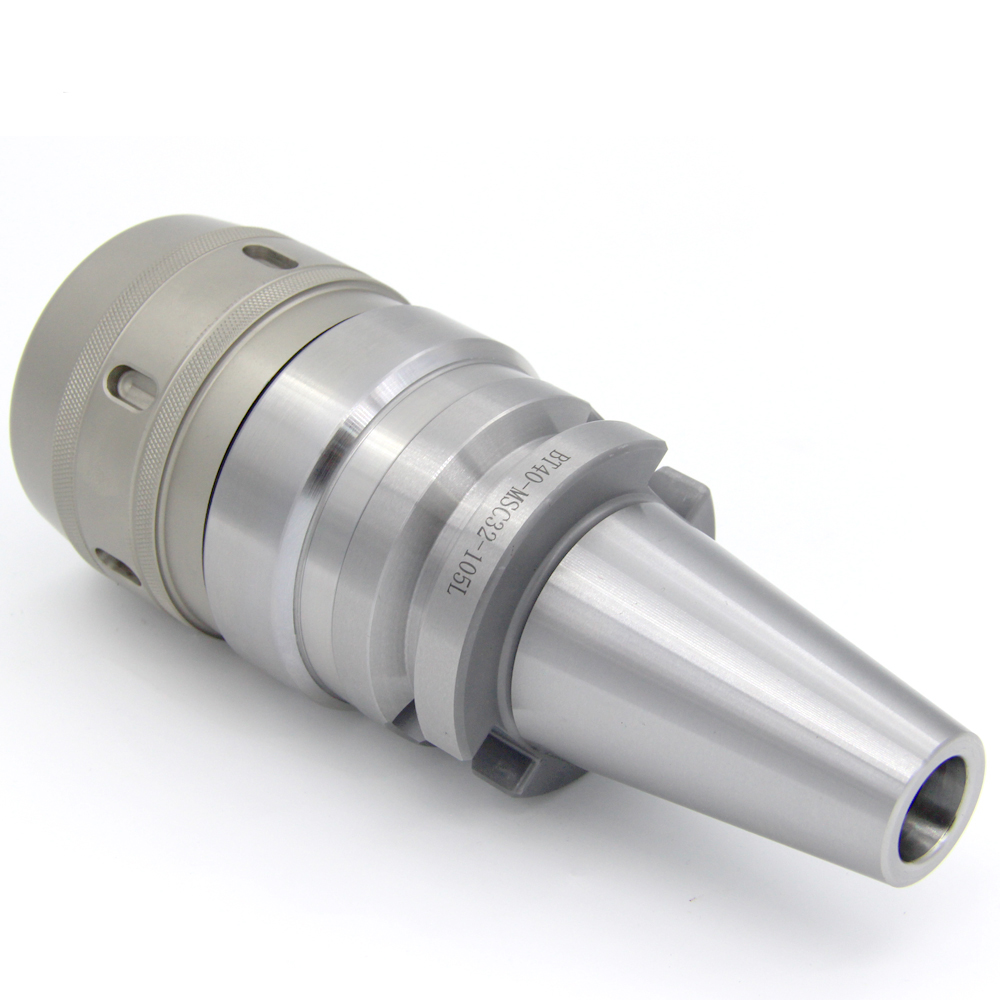

BT Straight Collets Chuck Holders - KCH

Model No.

Clamping Range(mm)

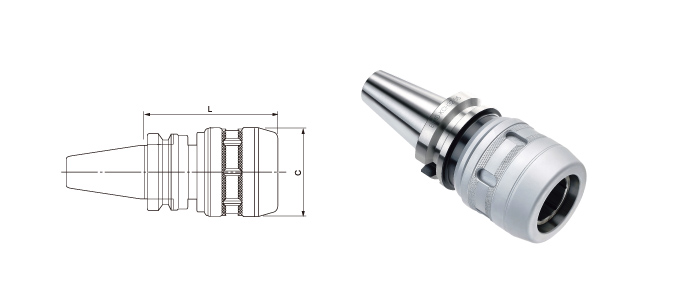

L (mm)

C (mm)

Collet

Weight (kgs)

BT30-KCH16-70

4-16

70

42

C16

1.19

BT30-KCH20-80

6-20

80

52

C20

1.19

BT30-KCH25-80

6-25

80

60

C25

1.3

BT30-KCH32-100

6-32

100

68

C32

1.5

BT40-KCH16-75

4-16

75

42

C16

1.4

BT40-KCH16-90

1-16

90

42

C16

1.5

BT40-KCH20-75

6-20

75

52

C20

1.6

BT40-KCH20-105

6-20

105

52

C20

1.8

BT40-KCH25-75

6-25

75

60

C25

2

BT40-KCH25-105

6-25

105

60

C25

2.2

BT40-KCH32-95

6-32

95

68

C32

2.34

BT40-KCH32-135

6-32

135

68

C32

3.5

BT50-KCH16-105

4-16

105

42

C16

4.44

BT50-KCH16-135

4-16

135

42

C16

4.99

BT50-KCH16-165

4-16

165

42

C16

5.54

BT50-KCH20-105

6-20

105

52

C20

4.69

BT50-KCH20-135

6-20

135

52

C20

5.24

BT50-KCH20-165

6-20

165

52

C20

5.77

BT50-KCH25-105

6-25

105

60

C25

4.86

BT50-KCH25-135

6-25

135

60

C25

5.41

BT50-KCH25-165

6-25

165

60

C25

5.96

BT50-KCH32-105

6-32

105

68

C32

5.64

BT50-KCH32-135

6-32

135

68

C32

6.25

BT50-KCH32-165

6-32

165

68

C32

7.35

BT50-KCH42-105

6-42

105

87

C42

7.5

BT50-KCH42-135

6-42

135

87

C42

8.7

BT50-KCH42-165

6-42

165

87

C42

9.9
