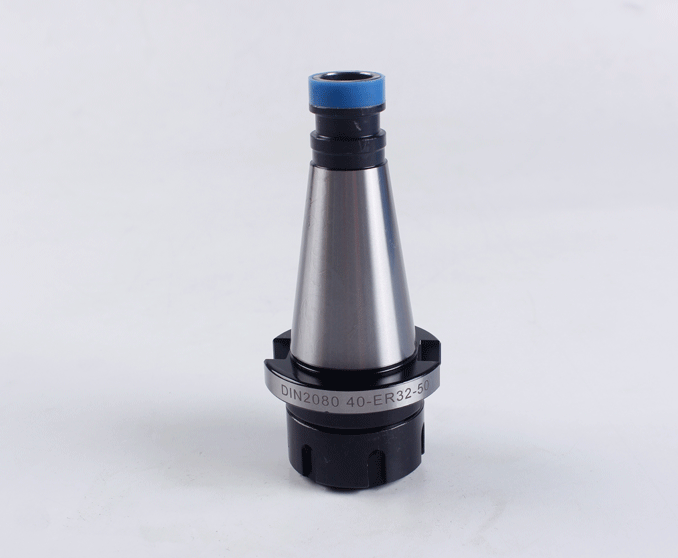

7:24 TAPER COLLET CHUCK

1.Products name：7:24 Taper collet chuck
2.Material: 40Cr
3.Hardness: HRC48-52
4.Accuracy: 0.005mm
5.Package: Plastic box
6.Standard: DIN2080.30 DIN2080.40 DIN2080.50
7.Mini order quantity:10pcs
8.Package:Plastic box

7:24 TAPER COLLET CHUCK

7:24 TAPER COLLET CHUCK
Order No.	7:24 NO	d	D	L1
30×ER11-50	30	1-7	19	50
30×ER16-63	30	1-10	28	63
30×ER20-63	30	1-13	34	63
30×ER25-63	30	1-16	42	63
30×ER32-63	30	2-20	50	63
30×ER40-75	30	3-26	63	75
40×ER16-63	40	1-10	28	63
40×ER20-60	40	1-13	34	60
40×ER25-60	40	1-16	42	60
40×ER32-70	40	2-20	50	70
40×ER40-60	40	3-26	63	60
40×ER50-100	40	6-34	78	100
50×ER16-63	50	1-10	28	63
50×ER20-60	50	1-13	34	60
50×ER25-60	50	1-16	42	60
50×ER32-70	50	2-20	50	70
50×ER40-70	50	3-26	63	70
50×ER50-90	50	6-34	78	90

7:24 TAPER COLLET CHUCK

7:24 TAPER COLLET CHUCK
Order No.	7:24 NO	d	D	L1
30×ER11-50	30	1-7	19	50
30×ER16-63	30	1-10	28	63
30×ER20-63	30	1-13	34	63
30×ER25-63	30	1-16	42	63
30×ER32-63	30	2-20	50	63
30×ER40-75	30	3-26	63	75
40×ER16-63	40	1-10	28	63
40×ER20-60	40	1-13	34	60
40×ER25-60	40	1-16	42	60
40×ER32-70	40	2-20	50	70
40×ER40-60	40	3-26	63	60
40×ER50-100	40	6-34	78	100
50×ER16-63	50	1-10	28	63
50×ER20-60	50	1-13	34	60
50×ER25-60	50	1-16	42	60
50×ER32-70	50	2-20	50	70
50×ER40-70	50	3-26	63	70
50×ER50-90	50	6-34	78	90
