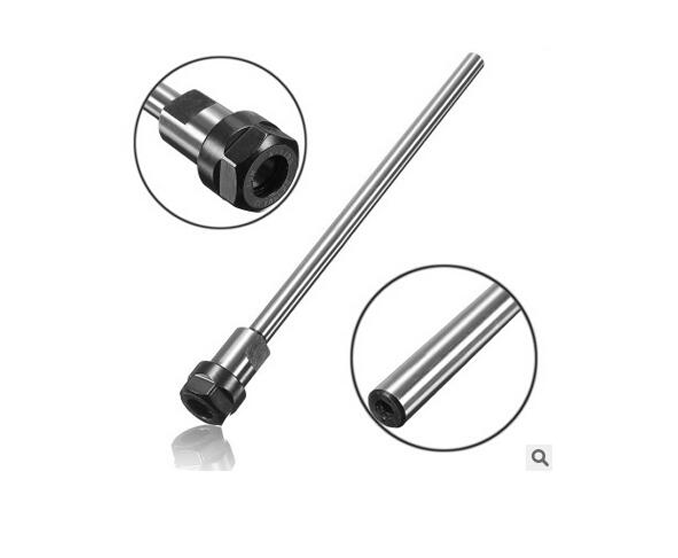

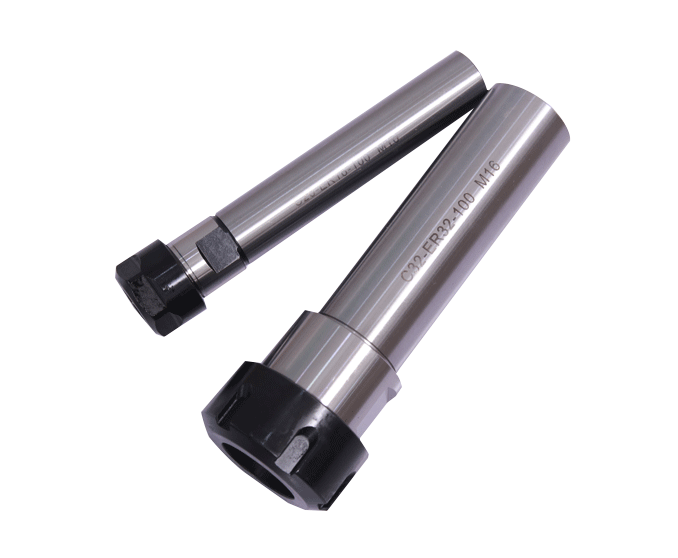

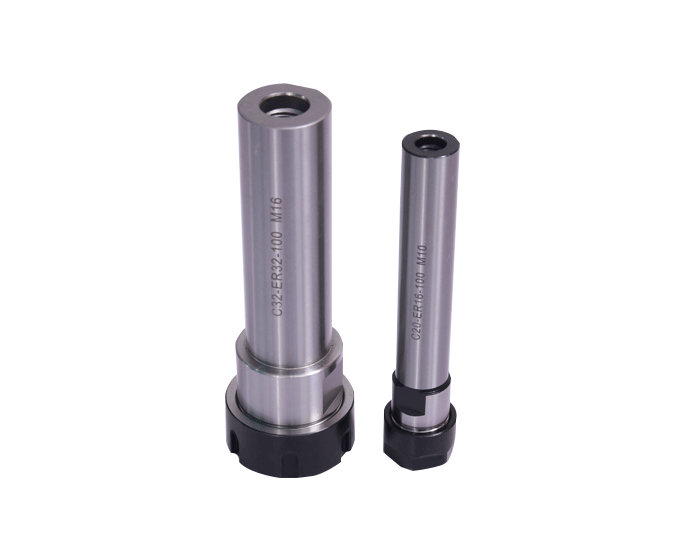

Straight shank collet chuck with standard nut
1.Products name：Straight shank collet chuck with standard nut
2.Material: 40Cr
3.Hardness: HRC48-52
4.Accuracy: 0.005mm
5.Package: Plastic box
6.Type: C12 C16 C20 C25 C32 C40
7.Mini order quantity:10pcs
8.Package:Plastic box

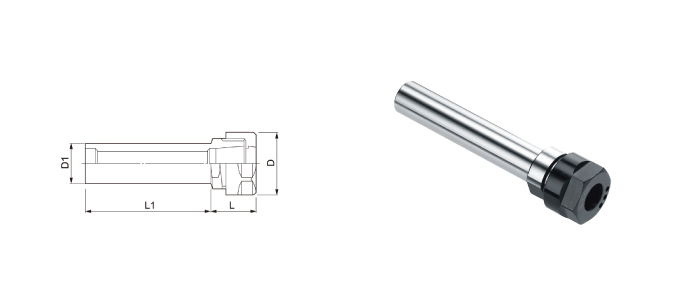

Straight shank collet chuck with standard nut
|
Model No.
|
L1
|
L (mm)
|
ØD (mm)
|
ØD1 (mm)
|
Weight (kgs)
|
|
Ø16-ER11 x 100
|
100
|
25
|
19 (16)
|
16
|
0.18
|
|
Ø20-ER16 x 50
|
50
|
30
|
28 (22)
|
20
|
0.17
|
|
Ø20-ER16 x 100
|
100
|
30
|
28 (22)
|
20
|
0.3
|
|
Ø20-ER16 x 150
|
150
|
30
|
28 (22)
|
20
|
0.43
|
|
Ø20-ER16 x 200
|
200
|
30
|
28 (22)
|
20
|
0.6
|
|
Ø20-ER20 x 50
|
50
|
36
|
34 (28)
|
20
|
0.22
|
|
Ø20-ER20 x 100
|
100
|
36
|
34 (28)
|
20
|
0.33
|
|
Ø20-ER20 x 150
|
150
|
36
|
34 (28)
|
20
|
0.44
|
|
Ø20-ER20 x 200
|
200
|
36
|
34 (28)
|
20
|
0.62
|
|
Ø25-ER16 x 50
|
50
|
30
|
28 (22)
|
25
|
0.27
|
|
Ø25-ER16 x 100
|
100
|
30
|
28 (22)
|
25
|
0.45
|
|
Ø25-ER20 x 50
|
50
|
36
|
34 (28)
|
25
|
0.27
|
|
Ø25-ER20 x 100
|
100
|
36
|
34 (28)
|
25
|
0.7
|
|
Ø25-ER20 x 150
|
150
|
36
|
34 (28)
|
25
|
0.62
|
|
Ø32-ER32 x 100
|
100
|
36
|
50
|
32
|
0.91
|
|
Ø32-ER32 x 150
|
150
|
36
|
50
|
32
|
1.16
|
|
Ø32-ER32 x 200
|
200
|
36
|
50
|
32
|
1.47
|
