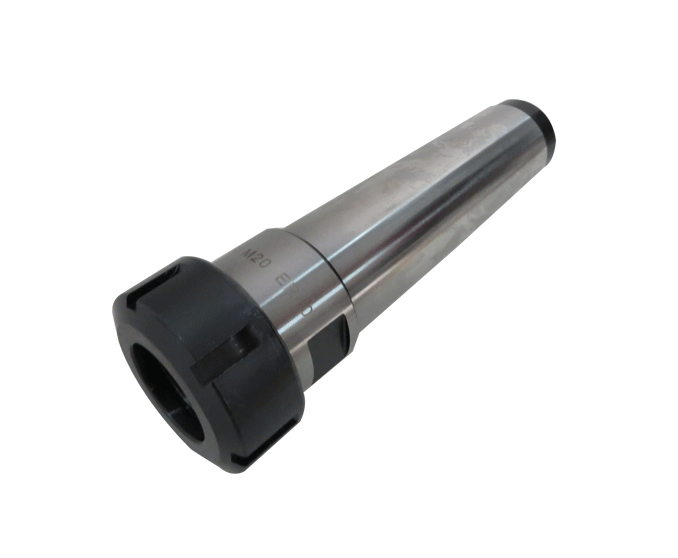

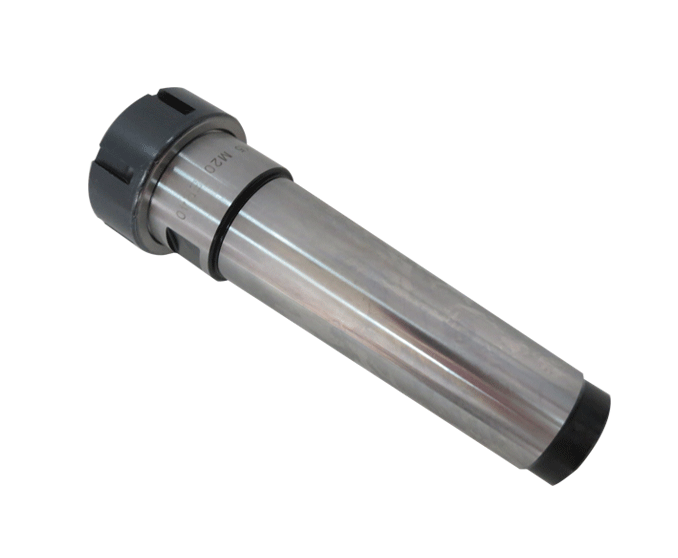

Morse taper collet chuck
1.Products name：Morse taper collet chuck
2.Material: 40Cr
3.Hardness: HRC48-52
4.Accuracy: 0.005mm
5.Package: Plastic box
6.Type: MS2 MS3 MS4 MS5
7.Mini order quantity:10pcs
8.Package:Plastic box
Morse taper collet chuck
|
MORSE TAPER COLLET CHUCK
|
|
Order No.
|
MS.NO.
|
d
|
D
|
L1
|
|
MS2×ER11
|
MS2
|
1-7
|
19
|
35.3
|
|
MS2×ER16
|
MS2
|
1-10
|
28
|
44.3
|
|
MS2×ER20
|
MS2
|
1-13
|
34
|
53.3
|
|
MS2×ER25
|
MS2
|
1-16
|
42
|
57.7
|
|
MS3×ER16
|
MS3
|
1-10
|
28
|
49.3
|
|
MS3×ER20
|
MS3
|
1-13
|
34
|
56.2
|
|
MS3×ER25
|
MS3
|
1-16
|
42
|
55.7
|
|
MS3×ER32
|
MS3
|
2-20
|
50
|
65.7
|
|
MS3×ER40
|
MS3
|
3-26
|
63
|
71.7
|
|
MS4×ER16
|
MS4
|
1-10
|
28
|
46.5
|
|
MS4×ER20
|
MS4
|
1-13
|
34
|
51.7
|
|
MS4×ER25
|
MS4
|
1-16
|
42
|
46.7
|
|
MS4×ER32
|
MS4
|
2-20
|
50
|
74.2
|
|
MS4×ER40
|
MS4
|
3-26
|
63
|
69.7
|
|
MS5×ER40
|
MS5
|
3-26
|
63
|
69.2
|
|
MS5×ER50
|
MS5
|
6-34
|
78
|
85
|
