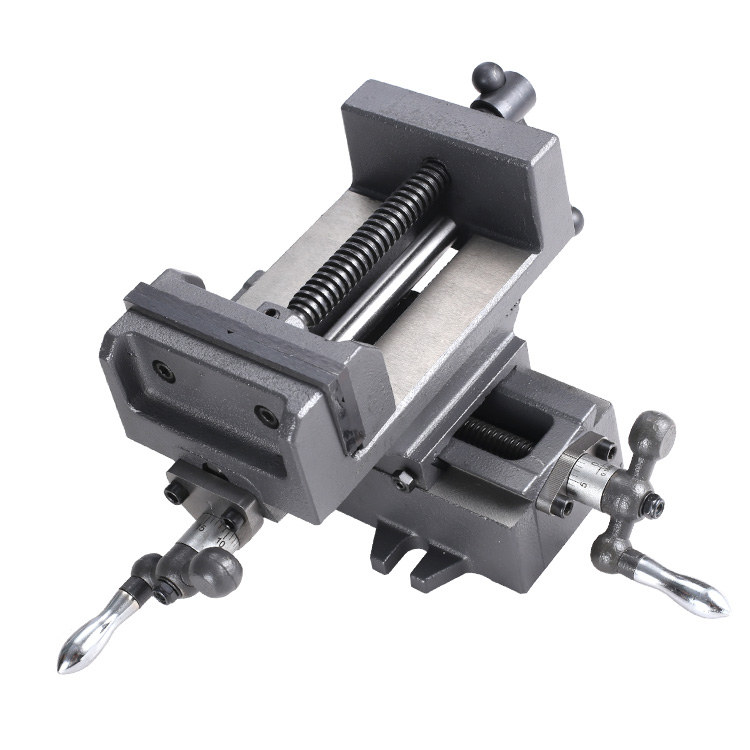

Cross slide Vice
1.The cross series fixture adopts two mutually perpendicular feeding mechanisms to realize simultaneous movement in the X and Y directions, and the base can be mounted for 360 degree rotation.
2. When used with the desktop drilling machine, through the manual feeding in two directions perpendicular to each other, multiple empty systems of the same plane can be drilled in one clamping, and multiple keyways can be milled.
3.Cross slide vice also be used as a milling machine, as an attachment to a grinding machine or as a tool alone.
Cross slide Vice
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
QTY/ctn
|
Packing size
|
NW./GW.
|
|
3 light
|
172
|
140
|
102
|
80
|
112
|
65
|
30
|
115
|
1
|
28×28×17
|
5.2/6.2
|
|
4 light
|
236
|
165
|
102
|
102
|
129
|
85
|
36
|
140
|
1
|
34×34×19
|
8/9
|
|
5 light
|
264
|
225
|
102
|
125
|
138
|
120
|
38
|
158
|
1
|
36×36×20
|
10.4/11.4
|
|
3
|
225
|
170
|
102
|
80
|
125
|
70
|
30
|
126
|
1
|
28×28×17
|
7/8
|
|
4
|
236
|
200
|
102
|
102
|
138
|
90
|
38
|
140
|
1
|
28×28×17
|
9.8/10.8
|
|
5
|
252
|
240
|
102
|
125
|
148
|
120
|
40
|
158
|
1
|
34×34×19
|
135./14.5
|
|
6
|
290
|
275
|
102
|
150
|
154
|
150
|
42
|
168
|
1
|
36×36×20
|
16/17
|
