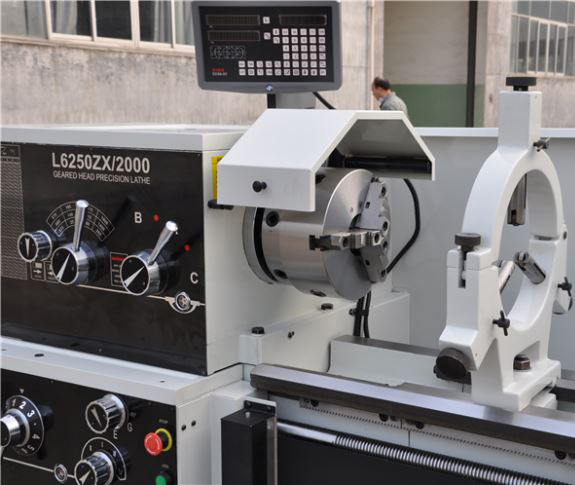

GH-1440ZX GH-1660ZX GH-1880ZX GH-2080ZX Gap Bed Lathe Machine
· The surface of the bed ways is supersonic frequency hardened and precision ground with a long service life. The design of the main drive is optimized and the gears in the headstock are precision ground. The noise of the machine is low.
· The spindle bore size is 80mm. The spindle system is high in rigidity and accuracy. There is no vibration when turning with a cutting depth of 10mm
· There is no need for change gears. The machine can turn about 200 kinds of metric. Whit worth, module and D.P. Threads including special whit worth threads such as 7-1/2,9-1/2,10-1/2,11,11-1/2,13,13-1/2,19,27 t.p.i and pipe threads.

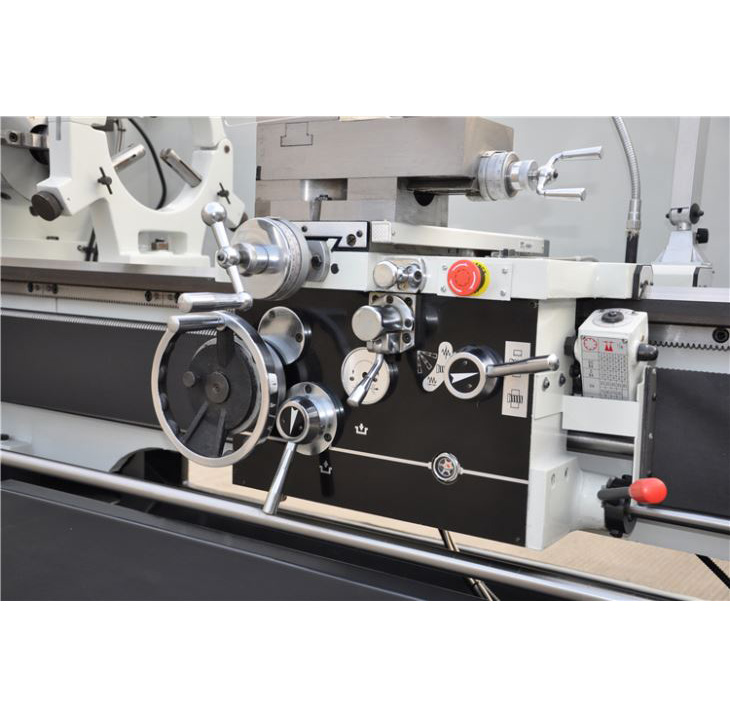

· An automatic stopping device is used to realize automatic stop for the machining of a certain length workpiece, which is safe and reliable. A pedal or electromagnetic braking device stops the machine quickly and effectively.
GH-1440ZX GH-1660ZX GH-1880ZX GH-2080ZX Lathe Machine
|
MODELS
|
GH-1440ZX
|
GH-1660ZX
|
GH-1880ZX
|
GH-2080ZX
|
|
CAPACITY
|
|
|
|
|
|
Max.swing
over bed
|
360mm
|
400mm
|
460mm
|
500mm
|
|
Max.swing
over cross slide
|
200mm
|
250mm
|
290mm
|
330mm
|
|
Max.
swing over gap
|
600mm
|
660mm
|
700mm
|
740mm
|
|
Distance
between centers
|
1000mm
|
1500mm
|
2000mm
|
2000mm
|
|
Bed
with
|
336mm
|
336mm
|
336mm
|
336mm
|
|
HEADSTOCK
|
|
|
|
|
|
Spindle
bore
|
80mm
|
80mm
|
80mm
|
80mm
|
|
Spindle
mount
|
D1-8
|
D1-8
|
D1-8
|
D1-8
|
|
Taper
bore of spindle
|
MT-7
|
MT-7
|
MT-7
|
MT-7
|
|
Steps
of spindle speed
|
12
|
12
|
12
|
12
|
|
Range
of spindle speed
|
42-1800rpm
|
42-1800rpm or
25-1800rpm
|
42-1800rpm or
25-1800rpm
|
25-1800rpm
|
|
GEARBOX
|
|
|
|
|
|
Range
of longitudinal feeds
|
0.04-2.46mm
|
0.04-2.46mm
|
0.04-2.46mm
|
0.04-2.46mm
|
|
Range
of cross feeds
|
0.02-1.23mm
|
0.02-1.23mm
|
0.02-1.23mm
|
0.02-1.23mm
|
|
Number
of inch threads
|
61
|
61
|
61
|
61
|
|
Range
of inch threads
|
1-5/8
- 72 T.P.I.
|
1-5/8
- 72 T.P.I.
|
1-5/8
- 72 T.P.I.
|
1-5/8
- 72 T.P.I.
|
|
Number
of metric threads
|
24
|
24
|
24
|
24
|
|
Range
of metric threads
|
0.5-20mm
|
0.5-20mm
|
0.5-20mm
|
0.5-20mm
|
|
Number
of D.P threads
|
45
|
45
|
45
|
45
|
|
Range
of D.P threads
|
96-3
1/4D.P
|
96-3
1/4D.P
|
96-3
1/4D.P
|
96-3
1/4D.P
|
|
Number
of module threads
|
20
|
20
|
20
|
20
|
|
Range
of module threads
|
0.25-10M.Pmm
|
0.25-10M.Pmm
|
0.25-10M.Pmm
|
0.25-10M.Pmm
|
|
CARRIAGE
|
|
|
|
|
|
Max.Tool
size
|
25x25mm
|
25x25mm
|
25x25mm
|
25x25mm
|
|
Max.compound
slide travel
|
130mm
|
130mm
|
130mm
|
130mm
|
|
Max.cross
slide travel
|
280mm
|
280mm
|
280mm
|
280mm
|
|
TAILSTOCK
|
|
|
|
|
|
Tailstock
sleeve travel
|
130mm
|
130mm
|
130mm
|
130mm
|
|
Taper
in tailstock sleeve
|
MT-4
|
MT-4
|
MT-5
|
MT-5
|
|
MISCELLANEOUS
|
|
|
|
|
|
Main
motor
|
5.5kw (7.5HP)
|
5.5kw (7.5HP)
|
5.5kw (7.5HP)
|
5.5kw (7.5HP)
|
|
Net
weight
|
2250kg
|
2300kg
|
2900kg
|
3250kg
|
