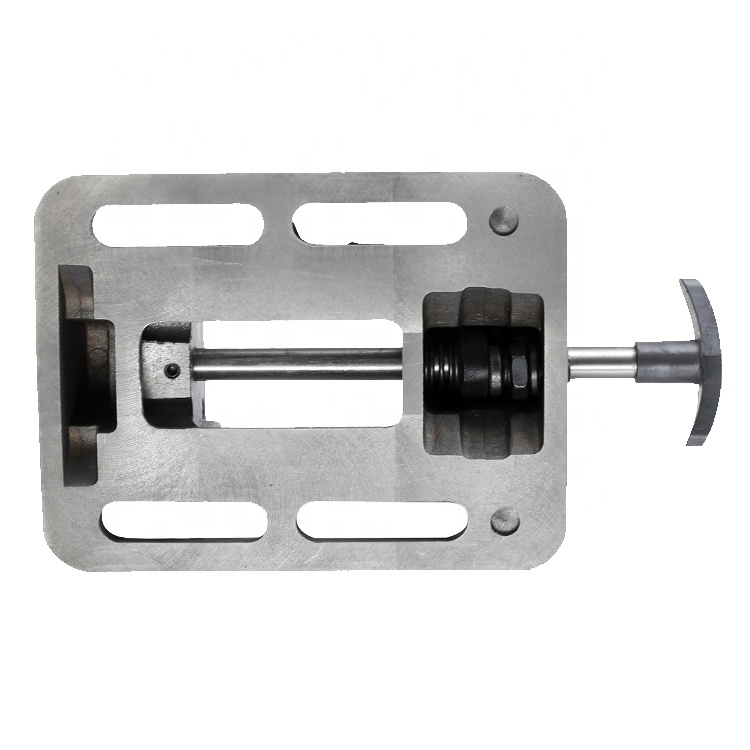

Quick Grip Drill Press
Performance And Character:
*Q19K machines vices are used double parallel guide rods structure, it can make the movable block move steady during clamping. And it used eccentric locking mechanism. The clamping force is strong and locking reliable.
*It is one of main attachments for drilling machine, easy to operate, steady and reliable.
Quick Grip Drill Press
|

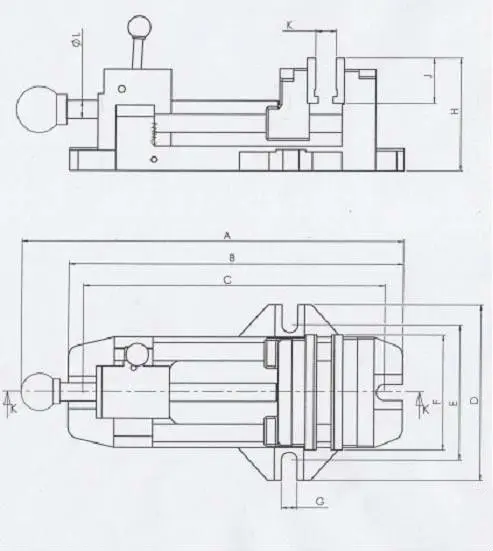

Main Technical Parameter:
|
|
Model
|
Width Of Jaw(mm)
|
Height Of Jaw(mm)
|
Max. Opening(mm)
|
G.W/N.W(kg)
|
Packing Volume(cm)
|
Packing
|
|
Q19K3
|
75
|
25
|
76
|
24/22(6pcs)
|
47x30x20
|
Carton
|
|
Q19K4
|
100
|
38
|
102
|
17/16(2pcs)
|
38x19x23
|
Carton
|
|
Q19K6
|
160
|
42
|
152
|
15/14
|
40x24x13
|
Carton
|
|
Q19K8
|
200
|
42
|
203
|
24/23
|
50x31x14
|
Carton
|
Quick Grip Drill Press
Performance And Character:
*Q19K machines vices are used double parallel guide rods structure, it can make the movable block move steady during clamping. And it used eccentric locking mechanism. The clamping force is strong and locking reliable.
*It is one of main attachments for drilling machine, easy to operate, steady and reliable.
