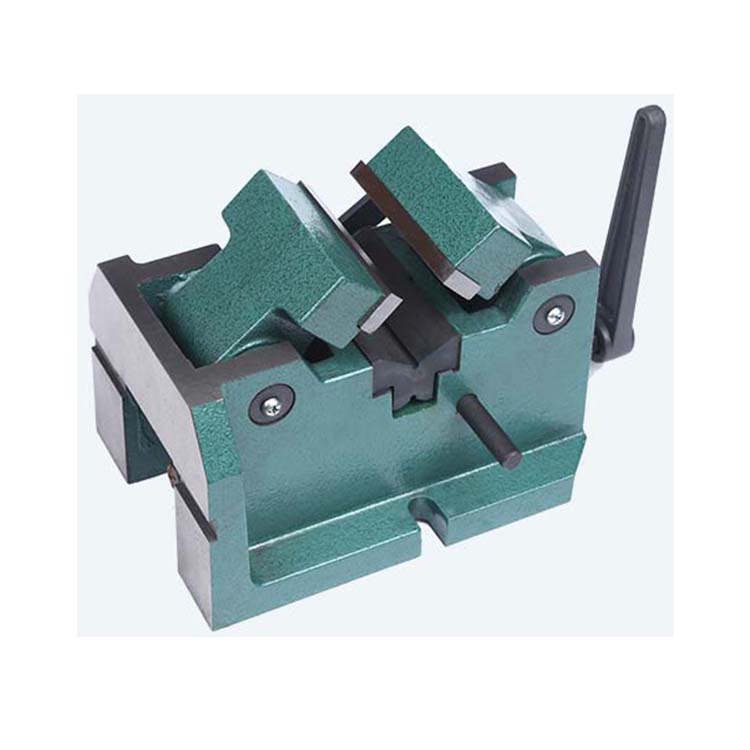

Q62100 V-type Machine Vice
1.It is made of high-quality cast iron.
2.It can be fifted on the table of the machine as upright and horizontal,the bottom of upright and horizontal is vertical.Centered clamping of workpiece is pressured on the v-block by two wobbing movable jaws.
3.According to the diameters of its holding part,the double side v-block can be placed reversibily.The vice is fitted with a stop for location of the parts.
4.It is used to help machine in making some kings of slots,holes and faces,suitable for holding the workpiece of cylinder.
Q62100 V-type machine vice
|
Main Technical Parameter
|
|
Model
|
Width Of Jaw(mm)
|
Max. Opening(mm)
|
G.W/N.W(kg)
|
Packing Volume(cm)
|
Packing
|
|
Q62100
|
100
|
φ10-80
|
19/18
|
32x21x23
|
Carton
|
