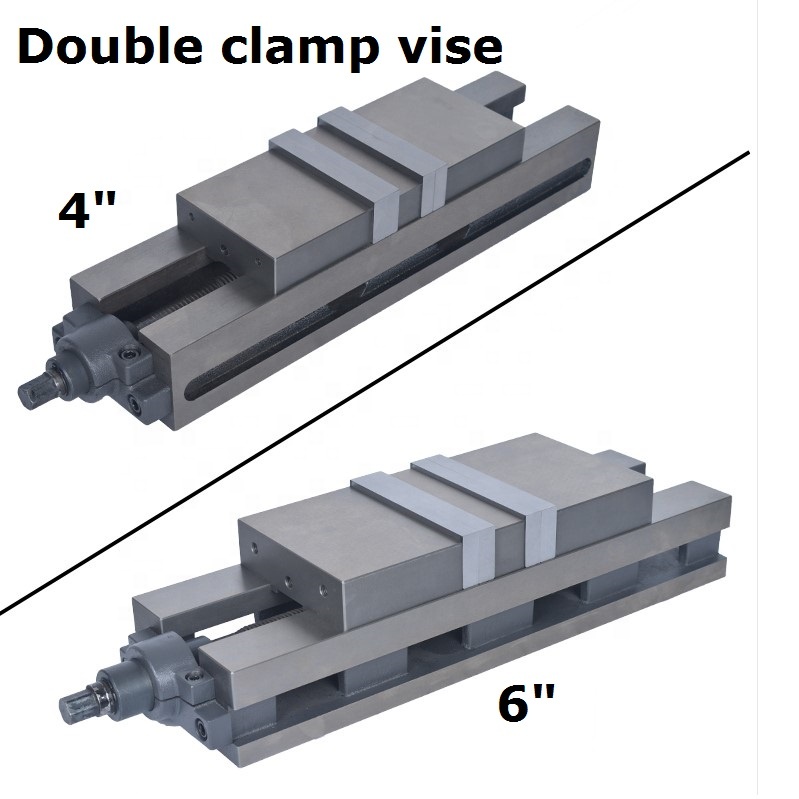

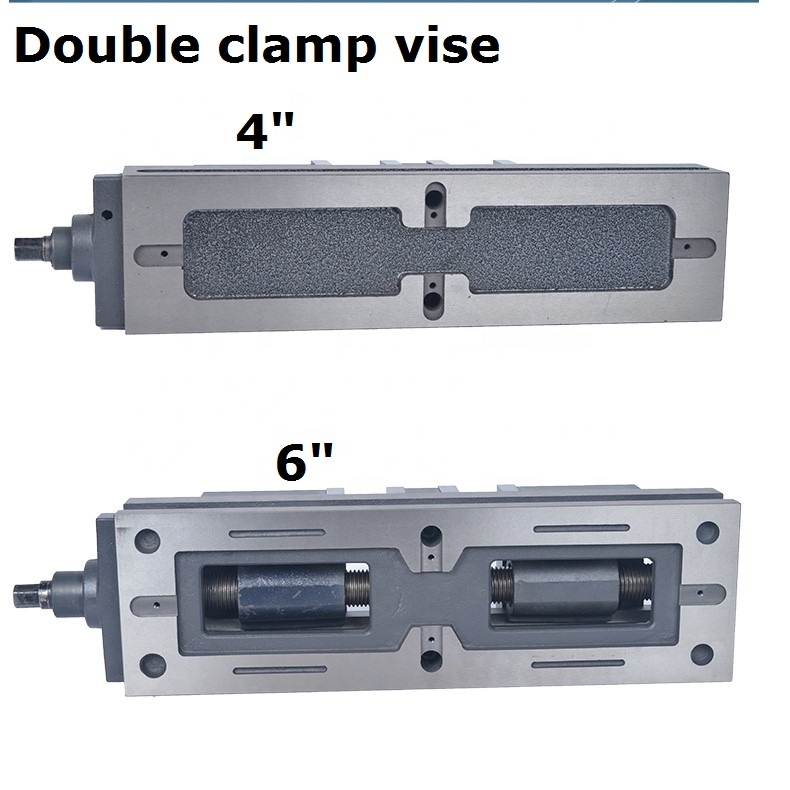

Q93100 Q93160 Double-action accu-lock machine vice
DOUBLE CLAMP VISE:
1. The vice with angle locked can prevent workpieces rising during operation.
2. It has two holding positions, not only holding two different sizes of the workpiece but also holding the same workpiece in different positions.
3. The accuracy of vice(parallelism and squareness) is 0.025mm/100mm.
4. The vice can be used with single or set side by side on the machine worktable.
5. It is widely used on a machining center and other precision machines
Q93100 Q93160 Double-action accu-lock machine vice
|
Model
|
Width of
jaw
(mm)
|
Height of
jaw
(mm)
|
Max.opening
(mm)
|
G.W./N.W.
(kg)
|
Packing
volume
(cm)
|
Packing
shape
|
|
Q93100
|
100
|
32
|
75
|
15/14
|
52x11x12
|
carton
|
|
Q93160
|
160
|
45
|
95
|
41/39
|
64X17X16
|
carton
|
